GE JGBS30REK1SS Gas Range Or Dual Fuel

Model: JGBS30REK1SS

Back To Assemblies

Save Part Not Listed?
product name

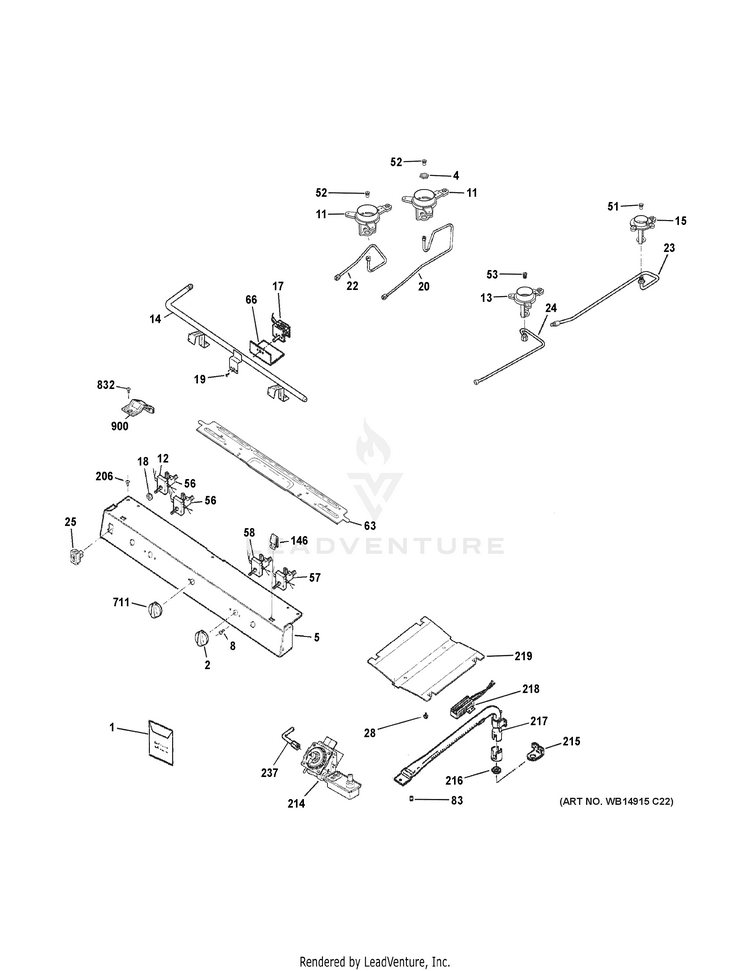

GAS & BURNER PARTS

...
...
1
PM INSTALL INSTRUCTIONS GEH-31-10934
...
1
PM INSTALL INSTRUCTIONS GEH-31-10781
...
1
PM INSTALL INSTRUCTIONS GEH-31-11029
...
1
HINGE SERVICE KIT GEH-WB49X21392
...
1
PM GAS QUICK GUIDE GEH-49-85230
...
2
KNOB VALVE GEH-WB03X21227
...
4
ECONOMIC NUT GEH-WB01K10037
...
5
TRIM AND PANEL ASM GEH-WB36X26252
...
8
SCREW 8-32 GEH-WB01K10002
...
11
INJET, MEDIUM V2 GEH-WB02X24727
...
12
HARNESS BURNER BOX GEH-WB18X24322
...
13
INJET, LARGE V2 GEH-WB02X24726
...
14
MANIFOLD PIPE GEH-WB28K10427
...
15
INJET, SMALL V2 GEH-WB02X24728
...
17
ELECTRIC THERMOSTAT DRL GEH-WB24X24270
...
18
COVER VALVE GEH-WB02K0024
...
19
SCREW THERMOSTAT GEH-WB01K0008
...
20
REAR ORIFICE HOLDER LEFT GEH-WB28X26308
...
22
FRONT ORIFICE HOLDER LEF GEH-WB28X26306
...
23
REAR ORIFICE HOLDER RIGH GEH-WB28X26309
...
24
FRONT ORIFICE HOLDER GEH-WB28X26604
...
25
SWITCH ROCKER SEALED GEH-WB24X20458
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
51
ORIFICE SPUD GEH-WB28K10834
...
52
ORIFICE-LP 89MM GEH-WB28K10023
...
53
ORIFICE-LP LG 99MM GEH-WB28K10032
...
56
ROUND VALVE BURNER 140 GEH-WB28K10578
...
57
ROUND VALVE BURNER 140 GEH-WB21K10170
...
58
ROUND VALVE BURNER 140 GEH-WB21K10169
...
63
MANIFOLD SUPPORT GEH-WB34X20680
...
66
COVER THERMOSTAT GEH-WB02K0006
...
83
OVEN ORIFICE SPUD GEH-WB28X21079
...
146
CLIP RANGETOP GEH-WB02X26569
...
206
SCREW GEH-WB01K10091
...
214
VALVE CONTROL ASM NOR. S GEH-WB21X26605
...
215
BRACKET SAFETY VALVE GEH-WB02K0065
...
216
NUT LOCK GEH-WB01K0006
...
217
BURNER OVEN ASSY GEH-WB16X20253
...
218
IGNITER-OVEN BAKE GEH-WB13K0021
...
219
FLAME SPREADER GEH-WB49K0044
...
237
TUBE MANIFOLD SUPPLY ASM GEH-WB28X25363
...
711
KNOB THERMOSTAT ASM GEH-WB03X21219
...
832
SCREW THERMOSTAT GEH-WB01K10080
...
900
ROUND VALVE BRACKET GEH-WB02K10263
