GE JGBS10DEM2WW Gas Range Or Dual Fuel

Model: JGBS10DEM2WW

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

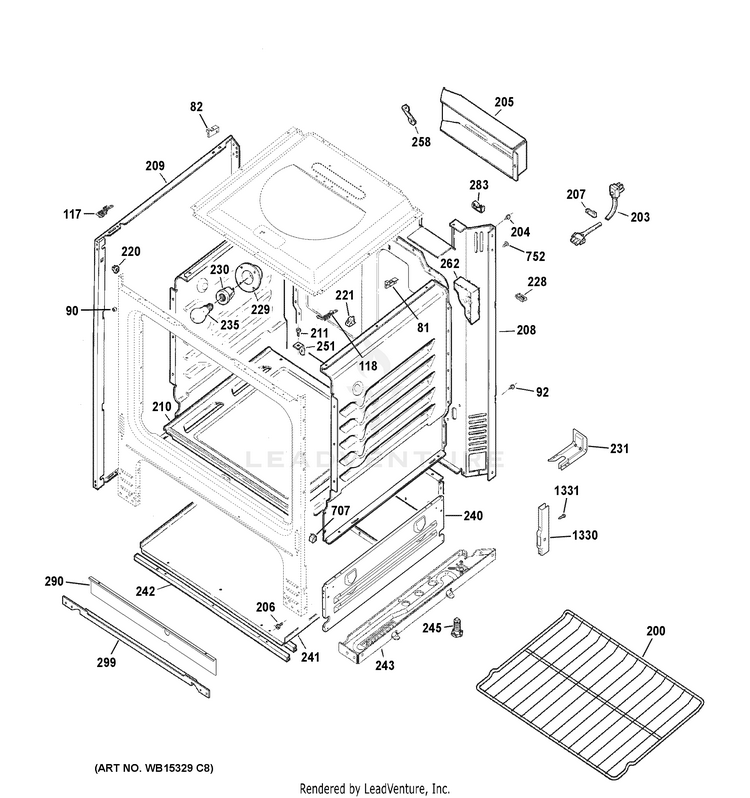

BODY PARTS

...
...
81
HOLDER RANGETOP GEH-WB02X24942
...
82
HOLDER RANGETOP GEH-WB02X24941
...
90
FRAME FRONT BUMPER GEH-WB02X28738
...
92
SCREW GROUND GEH-WB01X1261
...
117
BRACKET MANIFOLD SIDE GEH-WB02X24940
...
118
BRACKET MANIFOLD SIDE GEH-WB02X24939
...
200
OVEN RACK GEH-WB48X20249
...
203
LINE CORD GEH-WB18K10036
...
204
SCREW (BLK) GEH-WB01K0042
...
205
COVER BACK PANEL GEH-WB34K10144
...
206
SCREW GEH-WB01K10091
...
207
CLAMP CABLE GEH-WB02K0036
...
208
RANGE BACK GEH-WB63K0021
...
209
PANEL SIDE GEH-WB56X29122
...
210
BOTTOM OVEN AND DEFLECTOR ASM GEH-WB35X37973
...
211
BOTTOM OVEN SCREW GEH-WB01K0005
...
220
GROMMET GEH-WB02K0008
...
221
CLIP CAPILLARY GEH-WB02K0010
...
228
CLIP WIRE GEH-WB02X7066
...
229
HOUSING RECEPTACLE GEH-WB08K0001
...
230
RECEPTACLE PUSH-IN GEH-WB08T10026
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
235
40A15 GEH-STD372401
...
240
PANEL BROILER GEH-WB63X26890
...
241
BOTTOM RANGE GEH-WB63K10029
...
242
BRACE BOTTOM GEH-WB63K0005
...
243
SUPPORT BASE LT GEH-WB63X20216
...
243
SUPPORT BASE RT GEH-WB63X20215
...
245
LEG LEVELER GEH-WB02K10182
...
251
ANGLE SUPPORT GEH-WB02K0003
...
258
BRACE VENT GEH-WB38K0002
...
262
INSULATION OVEN BACK GEH-WB35K0016
...
283
CLIP CABLE GEH-WB02K0031
...
290
SHIELD RADIATION GEH-WB34K0012
...
299
BRACKET SUPPORT GEH-WB01K0043
...
707
CLIP WIRE GEH-WB02K10267
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
1330
RECEIVER HINGE GEH-WB10X20220
...
1331
SCREW MTG HINGE (TORX) GEH-WB01K0053
