GE JGB870SET2SS Gas Range Or Dual Fuel

Model: JGB870SET2SS

Back To Assemblies

Save Part Not Listed?
product name

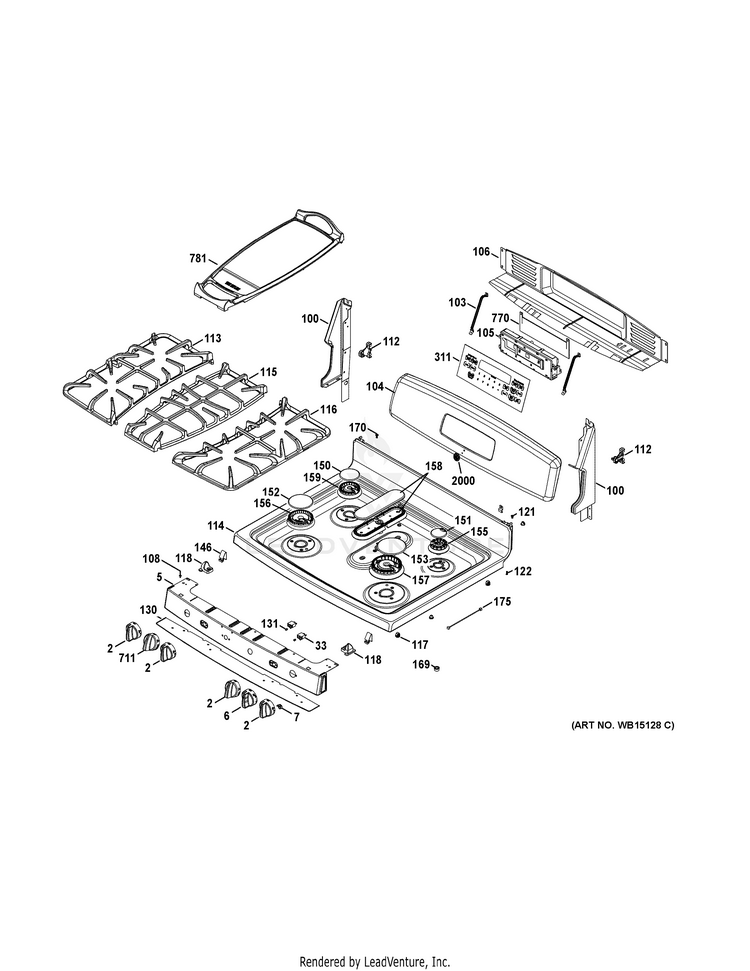

CONTROL PANEL & COOKTOP

...
...
2
KNOB GE ASM GEH-WB03K10317
...
5
ASM MANIFOLD PANEL GEH-WB36K11008
...
6
KNOB GE ASM GEH-WB03K10318
...
7
KNOB LOCATOR GEH-WB03K10320
...
33
LIGHT INDICATOR PILOT GEH-WB25K10010
...
100
END SUPPORT GEH-WB07K10246
...
100
END SUPPORT GEH-WB07K10247
...
103
BRACKET CONTROL GEH-WB02K10155
...
104
TRIM CONTROL GEH-WB36K10786
...
105
CONTROL OVN (ERC3HP) GEH-WB27K10402
...
106
COVER BACK UPPER GEH-WB34K10115
...
108
SCREW (CR) GEH-WB01X5364
...
112
HINGE RANGE TOP GEH-WB14K10003
...
113
GRATE CAST LF GEH-WB31K10187
...
114
RANGETOP & BRKT ASM GEH-WB62K10151
...
115
GRATE CAST MID GEH-WB31K10189
...
116
GRATE CAST RT GEH-WB31K10188
...
117
PIN LOCATOR REAER GEH-WB14K10004
...
118
PIN LOCATOR FRONT GEH-WB14K10005
...
121
SCREW GEH-WB01K0084
...
121
SCREW GEH-WB01K0001
...
122
CKT SCREW GEH-WB01K10106
...
130
MANIFOLD EYEBROW GEH-WB35K10211
...
131
LENS GEH-WB25K10009
...
146
CLIP RANGETOP GEH-WB02K0052
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM BURNER CAP (5000) GEH-WB29K10022
...
152
ASM BURNER CAP (12000) GEH-WB29K10024
...
153
CAP BURNER ASM (15K) GEH-WB28K10222
...
155
SMALL BURNER V 5K GEH-WB16K10070
...
156
BURNER 12K GEH-WB16T10046
...
157
VISION BURNER XL GEH-WB16K10062
...
158
CENTRAL BURNER & CAP ASM GEH-WB16K10053
...
159
BURNER MEDIUM (9500) GEH-WB16K10055
...
169
VENTURI 15K LP GEH-WB16K10045
...
170
SCREW WH GEH-WB01X5874
...
175
HARNESS GROUND GEH-WB18K10083
...
311
MEMBRANE ASM GEH-WB27K10372
...
711
KNOB GE ASM GEH-WB03K10319
...
770
INSULATION CONTROL GEH-WB35K10040
...
781
GRIDDLE ASM GEH-WB31K10217
...
2000
BADGE GE GEH-WB02T10359
