GE JGB850SEF1SS Gas Range

Model: JGB850SEF1SS

Back To Assemblies

Save Part Not Listed?
product name

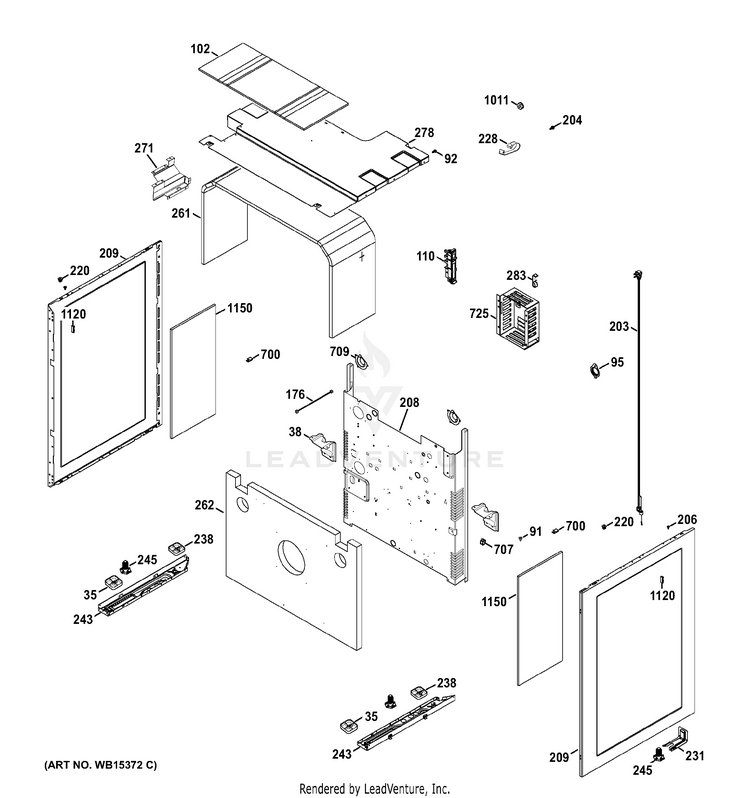

BODY PARTS

...
...
35
SPACER BASE FRONT GEH-WB16X20448
...
38
BRACKET CAVITY GEH-WB02X20519
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
92
SCREW GROUND GEH-WB01X1261
...
95
COVER CAP GEH-WB02K10337
...
102
INSULATION OVEN WRAP GEH-WB35X20435
...
110
SPARK MODULE 6+0 GEH-WB13K10033
...
176
HARNESS GROUND GEH-WB18K10083
...
203
LINE CORD GEH-WB18K10070
...
204
SCREW (BLK) GEH-WB01K0042
...
204
SCREW GEH-WB01K0084
...
204
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
204
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
206
SCREW GEH-WB01K10091
...
208
RANGE BACK GEH-WB63X21673
...
209
PANEL SIDE GEH-WB63K10285
...
220
GROMMET GEH-WB02K0008
...
220
SPACER SIDE GEH-WB02X20849
...
228
CLIP WIRE GEH-WB02X21679
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
238
SPACER BASE REAR GEH-WB16X20449
...
243
SUPPORT BASE RT GEH-WB63X25481
...
243
SUPPORT BASE LT GEH-WB63X25480
...
245
LEG LEVELER GEH-WB02K10182
...
261
INSULATION OVEN WRAP GEH-WB35X20434
...
262
INSULATION OVEN BACK GEH-WB35X25741
...
271
COVER LATCH GEH-WB34X21619
...
278
GUARD TOP INSULATION GEH-WB53K10047
...
283
CLIP CABLE GEH-WB02K0031
...
700
RETAINER-INSULATION VENT GEH-WB02K0030
...
707
CLIP WIRE GEH-WB02K10267
...
709
COVER LAMP GEH-WB08K10018
...
725
COVER MOTOR GEH-WB34K10148
...
1011
NUT KEPS 6-32 SPECIAL GEH-WB01T10086
...
1120
BUMPER GEH-WB02K10171
...
1150
RANGE SIDE INSULATION GEH-WB35K10100
