GE JGB850EEF1ES Gas Range

Model: JGB850EEF1ES

Back To Assemblies

Save Part Not Listed?
product name

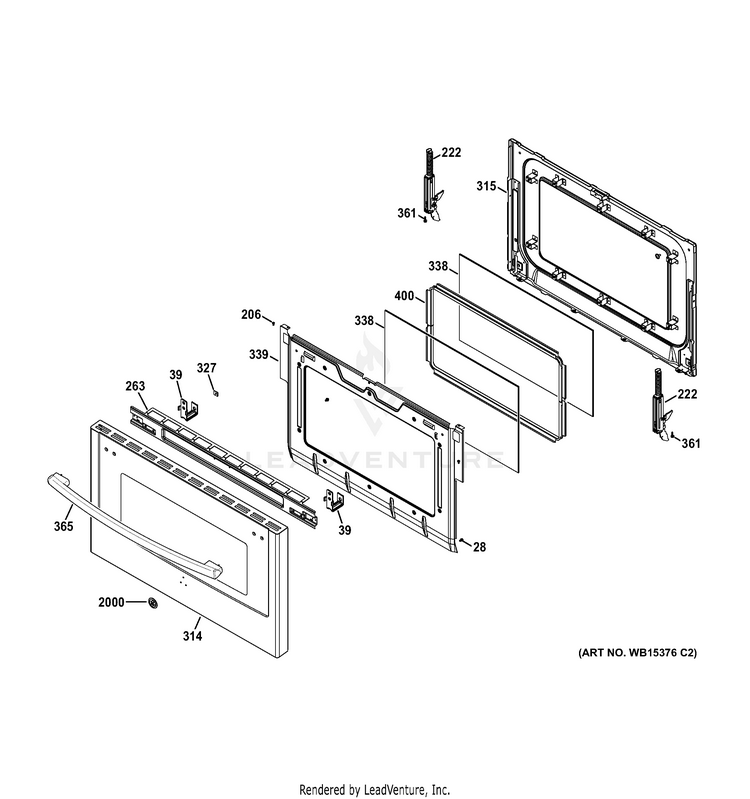

LOWER DOOR

...
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
39
BRACKET HANDLE GEH-WB02X20520
...
206
SCREW GEH-WB01K10091
...
222
DOOR HINGE LEFT GEH-WB10X26521
...
222
DOOR HINGE RIGHT GEH-WB10X26520
...
263
BACKER GEH-WB56X20799
...
314
GLASS & PANEL DOOR ASM GEH-WB56X21540
...
315
LINER DOOR WELD ASSEMBLY GEH-WB55K10080
...
327
SPEEDNUT GEH-WB01K0002
...
338
CRYSTAL WINDOW GEH-WB57K10155
...
339
GUARD INSULATION GEH-WB56K10079
...
361
SCREW GEH-WB01K10057
...
365
HANDLE AND END CAP ASM GEH-WB15X27280
...
400
FRAME WINDOW PACK ASM GEH-WB36K10986
...
2000
GE BADGE GRAY GEH-WB02T10589X
