GE JGB850DEF2BB Gas Range

Model: JGB850DEF2BB

Back To Assemblies

Save Part Not Listed?
product name

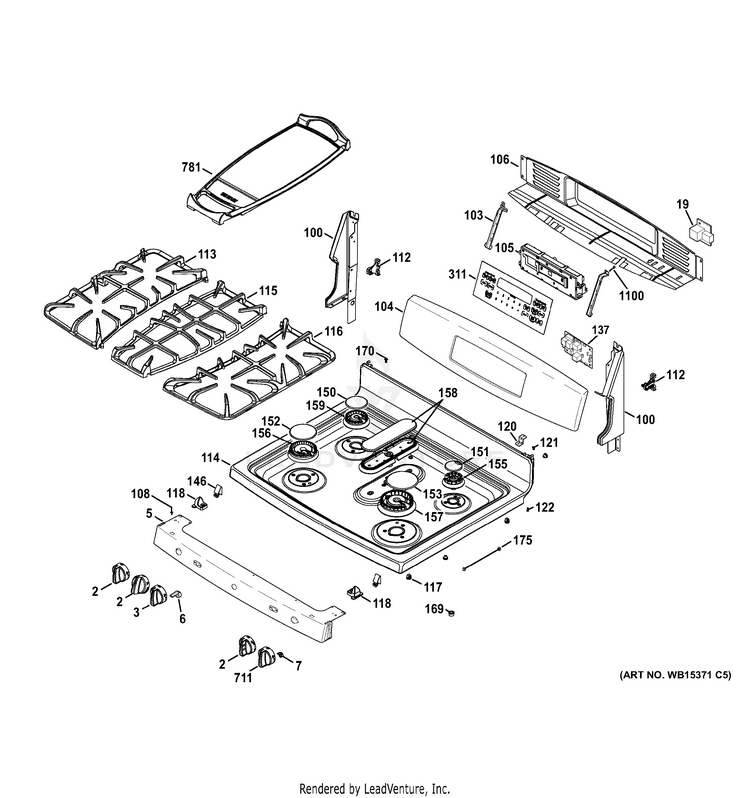

CONTROL PANEL & COOKTOP

...
...
2
KNOB GE PROFILE ASM GEH-WB03X20552
...
3
KNOB GE PROFILE GRIDDLE GEH-WB03X20556
...
5
MANIFOLD PANEL GEH-WB36X20548
...
6
KNOB LOCATOR GEH-WB03X20917
...
7
KNOB LOCATOR GEH-WB03X20919
...
19
BOARD RJ45 CONNECTOR GEH-WB27X21461
...
100
END SUPPORT RIGHT GEH-WB07X20546
...
100
END SUPPORT LEFT GEH-WB07X20547
...
103
BRACKET CONTROL LEFT GEH-WB02X20518
...
103
BRACKET CONTROL RIGHT GEH-WB02X20517
...
104
TRIM CONTROL GEH-WB07X20328
...
105
CONTROL BOARD T012 ELE GEH-WB27X23400
...
106
COVER BACK UPPER GEH-WB34X20525
...
108
SCREW (CR) GEH-WB01X5364
...
108
SCREW GEH-WB01K10030
...
112
HINGE RANGE TOP GEH-WB14K10003
...
113
GRATE CAST LF GEH-WB31K10187
...
114
RANGETOP & BRKT ASM GEH-WB62K10153
...
115
GRATE CAST MID GEH-WB31K10189
...
116
GRATE CAST RT GEH-WB31K10188
...
117
PIN LOCATOR REAER GEH-WB14K10004
...
118
PIN LOCATOR FRONT GEH-WB14K10005
...
120
SUPPORT COOK TOP REAR GEH-WB02X20735
...
121
SCREW 12-14, 5/8S GEH-WB01K0078
...
122
CKT SCREW GEH-WB01K10106
...
137
BOARD DAUGHTER RELAY 6 GEH-WB27X20788
...
146
CLIP RANGETOP GEH-WB02K0052
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM BURNER CAP (5000) GEH-WB29K10022
...
152
ASM BURNER CAP (12000) GEH-WB29K10024
...
153
CAP BURNER ASM (15K) GEH-WB28K10222
...
155
SMALL BURNER V 5K GEH-WB16K10070
...
156
BURNER 12K GEH-WB16T10046
...
157
VISION BURNER XL GEH-WB16K10062
...
158
OVAL BURNER ASM GEH-WB16K10076
...
159
BURNER MEDIUM (9500) GEH-WB16K10055
...
169
VENTURI 15K LP GEH-WB16K10085
...
170
SCREW (BLK) GEH-WB01X5716
...
175
HARNESS GROUND GEH-WB18X20790
...
311
OVERLAY T012 GEH-WB07X21007
...
711
KNOB GE PROFILE POWER BO GEH-WB03X20553
...
781
GRIDDLE ASM GEH-WB31K10217
...
1100
SCREW 8-18 AB HXW 5/8 S GEH-WB01T10016
