GE JGB850DEF1WW Gas Range

Model: JGB850DEF1WW

Back To Assemblies

Save Part Not Listed?
product name

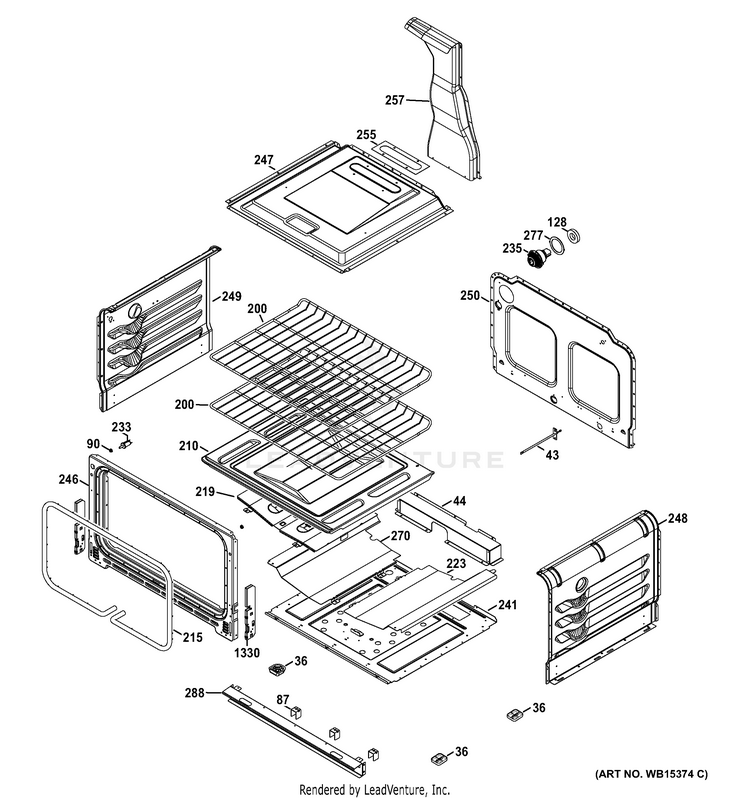

LOWER OVEN

...
...
36
SPACER BASE GEH-WB16X20450
...
43
TEMPERATURE SENSOR GEH-WB20K10027
...
44
COVER SHUTTER GEH-WB34X20526
...
87
BARRIER BOTTOM FLOOR GEH-WB56X20457
...
90
BUMPER DOOR GEH-WB02K10330
...
128
LAMP INSULATION GEH-WB02K10349
...
200
OVEN RACK GEH-WB48X20783
...
210
BOTTOM OVEN GEH-WB34X21670
...
215
GASKET OVEN GEH-WB32K10046
...
219
DEFLECTOR OVEN GEH-WB34X20440
...
223
OVEN DEFLECTOR GEH-WB34X20444
...
233
PLUNGER SWITCH DUAL GEH-WB24X20445
...
235
OVEN LAMP HOLDER ASM GEH-WB08T10002
...
241
BOTTOM RANGE GEH-WB63X20441
...
246
FRAME WELD ASM GEH-WB63X20432
...
247
OVEN TOP GEH-WB53K10039
...
248
OVEN SIDE GEH-WB53K10041
...
249
SIDE OVEN GEH-WB63X20427
...
250
OVEN BACK GEH-WB63X21539
...
255
GASKET VENT GEH-WB35X20455
...
257
VENT LOWER ASM GEH-WB34X20439
...
270
OVEN DEFLECTOR GEH-WB34X20443
...
277
GASKET OVEN LIGHT GEH-WB32K10044
...
288
BRACE GEH-WB02X20414
...
1330
RECEIVER HINGE GEH-WB10X25127
