GE JGB690DEF1BB Gas Range

Model: JGB690DEF1BB

Back To Assemblies

Save Part Not Listed?
product name

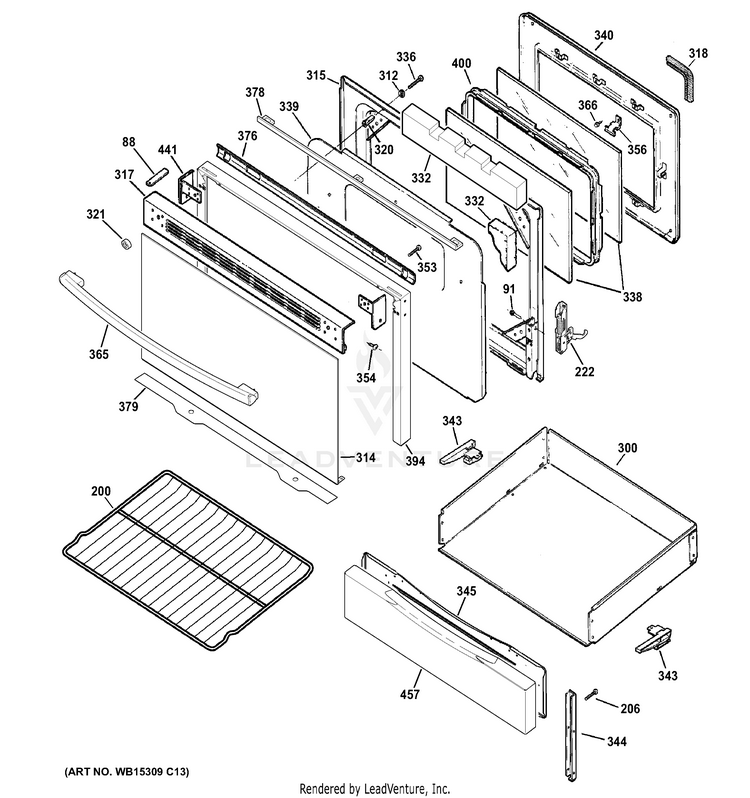

DOOR & DRAWER PARTS

...
...
88
PAD FELT (2") GEH-WB02K0062
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
200
OVEN RACK GEH-WB48X20249
...
206
SCREW GEH-WB01K10091
...
222
HINGE DOOR GEH-WB10X21659
...
300
DRAWER BODY GEH-WB58K10015
...
312
CONTOURED WASHER GEH-WB01X0119
...
314
GLASS OVEN DOOR ASM GEH-WB57X21391
...
315
LINER ASM WELD DOOR GEH-WB56X20537
...
317
TRIM VENT ASM DOOR BLK GEH-WB07K0403
...
318
GASKET ASM DOOR GEH-WB04K10022
...
320
SPACER GEH-WB02K10161
...
321
GROMMET HANDLE GEH-WB01K0010
...
332
INSULATION SIDE DOOR GEH-WB35K10149
...
332
INSULATION BOTTOM DOOR GEH-WB35K10150
...
336
SCR 10-16PL PNT 2.15S GEH-WB01K10075
...
338
CRYSTAL WINDOW GEH-WB56K0020
...
339
GUARD INSULATION GEH-WB56K0012
...
340
PANEL ASM WELD GEH-WB55K10033
...
343
GLIDER DRAWER GEH-WB02K0068
...
344
BRACKET MOUNTING DRAWER GEH-WB39K0020
...
345
LINER DRAWER GEH-WB55K10068
...
353
SCREW 8-22 PL 1HX 71 GEH-WB01K10012
...
354
SCREW MTG END CAP (BK) GEH-WB01K0062
...
356
CLIP WINDOW GEH-WB02K0056
...
365
HANDLE (LE-BK) GEH-WB15T10213
...
366
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
376
DEFLECTOR HEAT GEH-WB35K0023
...
378
DEFLECTOR DOOR GEH-WB56X21576
...
379
DEFLECTOR BOTTOM DOOR GEH-WB56X21577
...
394
TRIM DOOR GEH-WB07X20355
...
400
WINDOW SPACER ASM GEH-WB34K10087
...
441
END CAP DOOR RT (BK) GEH-WB07X7181
...
441
END CAP DOOR LF (BK) GEH-WB07X7182
...
457
PANEL DRAWER GEH-WB56X20396
