GE JGB645DEK1WW Gas Range

Model: JGB645DEK1WW

Back To Assemblies

Save Part Not Listed?
product name

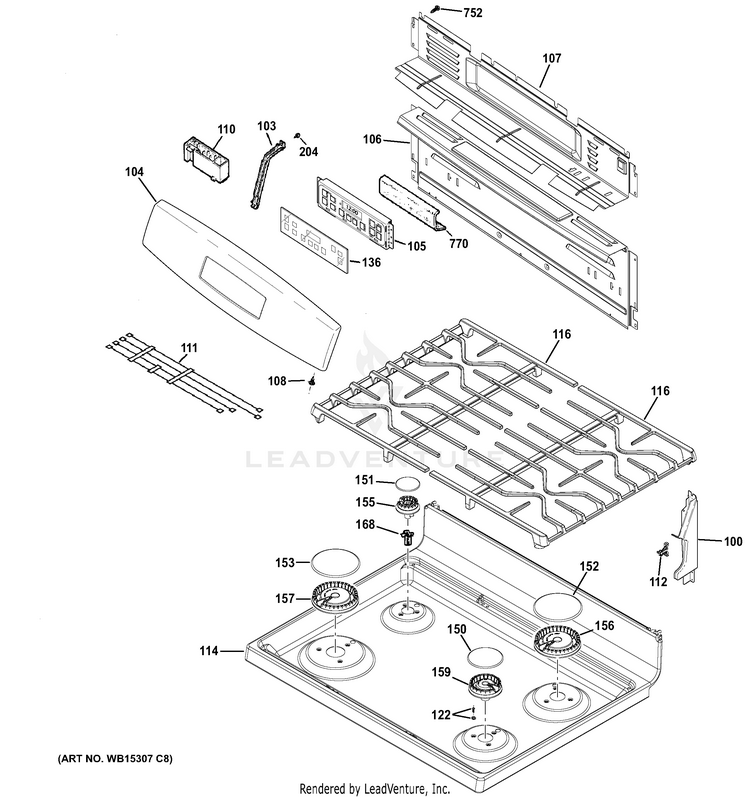

CONTROL PANEL & COOKTOP

...
...
100
END SUPPORT RH GEH-WB07X24791
...
100
END SUPPORT LH GEH-WB07X24792
...
103
BRACKET CONTROL GEH-WB02X24845
...
104
BACKGUARD RANGE GEH-WB36X25205
...
105
CONTROL OVEN TO9 (GAS) GEH-WB27K10453
...
106
COVER BACK UPPER GEH-WB34X24851
...
107
COVER BACK LOWER GEH-WB34X24746
...
110
IGNITION MODULE GEH-WB13X24323
...
111
ELECTRODES & HARNESS H.V GEH-WB18X26312
...
112
HINGE RANGE TOP GEH-WB14K10003
...
114
RANGETOP & BRKT ASM GEH-WB62X26661
...
116
GRATE ASM GEH-WB31X26620
...
122
CKT SCREW GEH-WB01X24735
...
136
OVERLAY T09 GEH-WB07X25206
...
150
ASM BURNER CAP (9500) GEH-WB29K10023
...
151
ASM. CAP, BURNER SMALL V GEH-WB29X24720
...
152
ASM BURNER CAP (12000) GEH-WB29K10024
...
153
CAP BURNER ASM (15K) GEH-WB28K10222
...
155
BURNER, SMALL V2 GEH-WB16X24721
...
156
BURNER, LARGE V2 GEH-WB16X24723
...
157
BURNER, XL V2 GEH-WB16X24722
...
159
BURNER, MEDIUM V2 GEH-WB16X24724
...
168
CLIP, IGNITER V2 GEH-WB02X24976
...
204
SCREW (BLK) GEH-WB01K0042
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
770
INSULATION CONTROL GEH-WB35K10040
