GE JGB620REF4SS Gas Range Or Dual Fuel

Model: JGB620REF4SS

Back To Assemblies

Save Part Not Listed?
product name

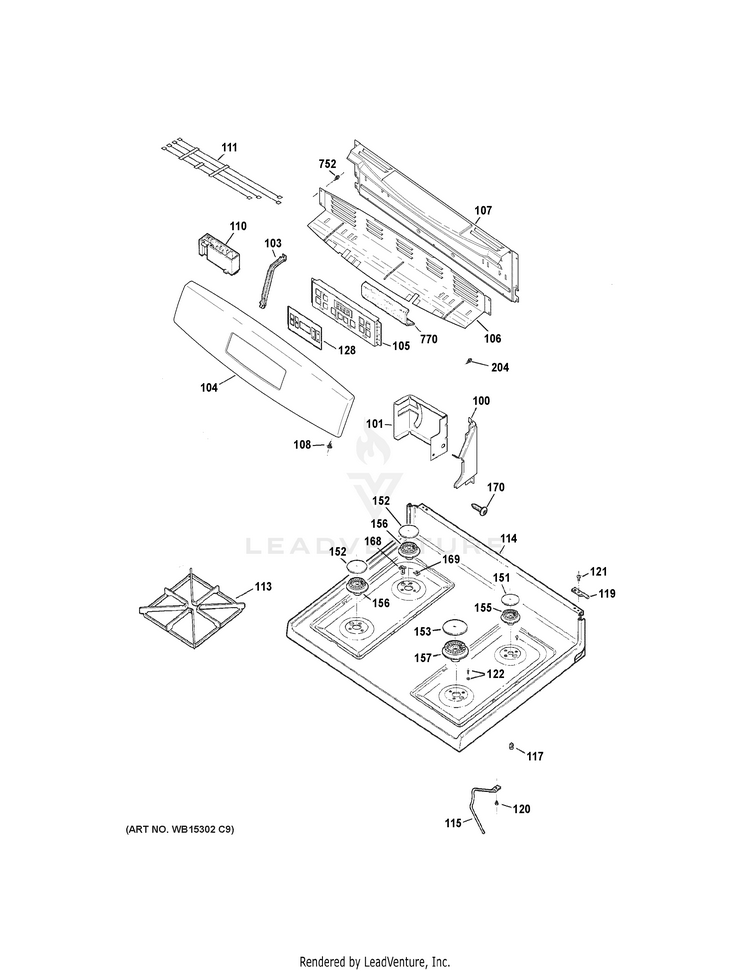

CONTROL PANEL & COOKTOP

...
...
100
END SUPPORT RT GEH-WB07X20194
...
100
END SUPPORT LT GEH-WB07X20197
...
101
BRACKET COOK TOP GEH-WB37X20193
...
101
BRACKET COOK TOP GEH-WB37X20196
...
103
BRACKET CONTROL GEH-WB02K10150
...
104
TRIM CONTROL ASM GEH-WB36X20808
...
105
CONTROL OVEN TO9 (GAS) GEH-WB27K10453
...
106
COVER BACK UPPER GEH-WB34X26858
...
107
COVER BACK LOWER GEH-WB34K10129
...
108
SCREW (CR) GEH-WB01X5364
...
110
SPARK MODULE 4+0 GEH-WB13K10029
...
111
ELECTRODES & HARNESS HV GEH-WB18K10098
...
113
GRATE ASM HAIRPIN HV GEH-WB31X20643
...
114
RANGE TOP S.B. GEH-WB62X20225
...
115
SUPPORT COOKTOP GEH-WB02K10276
...
117
PIN LOCATOR REAER GEH-WB14K10004
...
119
PIN HINGE GEH-WB14K0005
...
120
SCREW WASHER ASM GEH-WB01K0045
...
121
SCREW GEH-WB01K0001
...
121
SCR 10-16 X 2 3/4 GEH-WB01K10078
...
122
CKT SCREW GEH-WB01X24735
...
128
OVERLAY T09 GEH-WB07X20320
...
151
ASM BURNER CAP (5000) GEH-WB29K10022
...
152
ASM BURNER CAP (9500) GEH-WB29K10023
...
153
ASM BURNER CAP (12000) GEH-WB29K10024
...
155
SMALL BURNER V 5K GEH-WB16K10070
...
156
BURNER MEDIUM (9500) GEH-WB16K10055
...
157
BURNER 12K GEH-WB16T10046
...
168
CLIP ELECTRODE GEH-WB01K10112
...
169
CLIP, IGNITER V2 GEH-WB02X24976
...
170
SCREW (BLK) GEH-WB01X5716
...
204
SCREW (BLK) GEH-WB01K0042
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
770
INSULATION CONTROL GEH-WB35K10040
