GE JGB450DEF1WW Gas Range

Model: JGB450DEF1WW

Save Part Not Listed?
product name

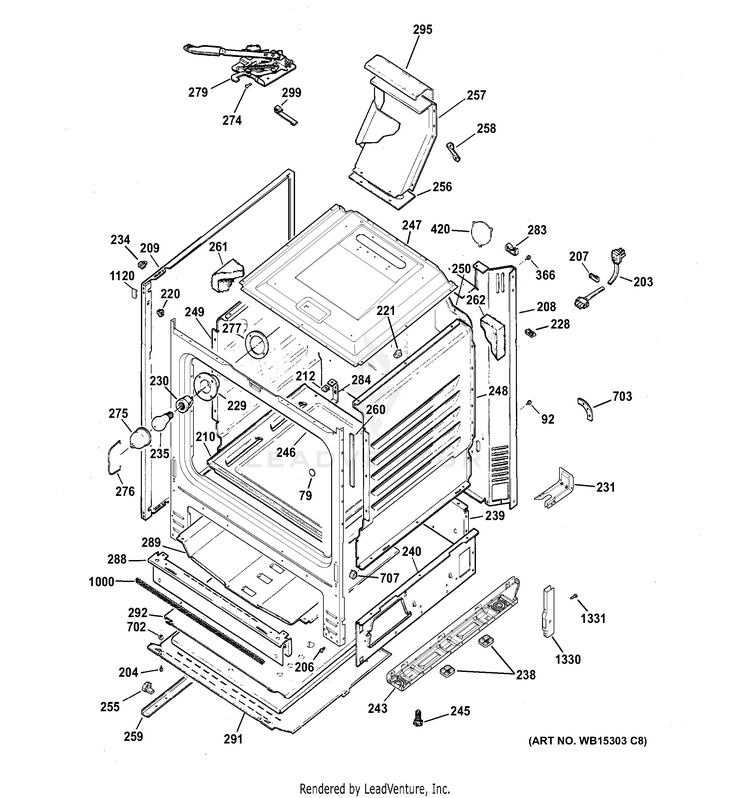

BODY PARTS

...
...
79
SPACER SIDE GEH-WB02X20849
...
92
SCREW GROUND GEH-WB01X1261
...
203
LINE CORD GEH-WB18X23504
...
204
SCREW (BLK) GEH-WB01K0042
...
206
SCREW GEH-WB01K10091
...
207
CLAMP CABLE GEH-WB02K0036
...
208
RANGE BACK GEH-WB63X20207
...
209
PANEL SIDE GEH-WB56X22009
...
210
BOTTOM OVEN GEH-WB35K10035
...
212
SPEEDNUT GEH-WB01K0002
...
220
GROMMET GEH-WB02K0008
...
221
CLIP CAPILLARY GEH-WB02K0010
...
228
CLIP WIRE GEH-WB02X7066
...
229
HOUSING RECEPTACLE GEH-WB08K0001
...
230
RECEPTACLE PUSH-IN GEH-WB08T10026
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
234
GUIDE SUPPORT RGTP GEH-WB02K0066
...
235
40A15 GEH-STD372401
...
238
SPACER BASE REAR GEH-WB16X20449
...
238
SPACER BASE FRONT GEH-WB16X20448
...
239
PANEL REAR BROIL GEH-WB63K10203
...
240
PANEL SIDE BROIL LFT GEH-WB63K0003
...
240
PANEL SIDE BROIL RT GEH-WB63K0002
...
243
SUPPORT BASE RT GEH-WB63X20215
...
243
SUPPORT BASE LT GEH-WB63X20216
...
245
LEG LEVELER GEH-WB02K10182
...
246
FRAME WELD ASM GEH-WB63X20290
...
247
OVEN TOP GEH-WB53K10015
...
248
OVEN SIDE RIGHT GEH-WB53K10034
...
249
OVEN SIDE LEFT GEH-WB53K10035
...
250
OVEN BACK GEH-WB63X23526
...
255
DRAWER SUPPORT GEH-WB02K10163
...
256
GASKET VENT GEH-WB35X20455
...
257
VENT ASSEMBLY GEH-WB34X20294
...
258
BRACE VENT GEH-WB38K0002
...
259
RAIL DRAWER GEH-WB39K0016
...
260
GASKET OVEN SEAL LG GEH-WB32K0002
...
261
INSULATION OVEN WRAP GEH-WB35K10210
...
262
INSULATION OVEN BACK GEH-WB35X20370
...
274
SCREW LATCH GEH-WB01K0044
...
275
GLASS OVEN LAMP GEH-WB08K0005
...
276
BAIL GEH-WB02K0027
...
277
GASKET OVEN LIGHT GEH-WB32K0005
...
279
LATCH ASSEMBLY GEH-WB02K10148
...
283
CLIP CABLE GEH-WB02K0031
...
284
BOTTOM OVEN BRACKT SUPPO GEH-WB02K0032
...
288
BRACE BOTTOM GEH-WB63K0015
...
289
LOWER HEAT SHIELD GEH-WB34K10086
...
291
GUARD BOTTOM GEH-WB63K0016
...
292
BOTTOM INNER GUARD GEH-WB63K10187
...
295
INSULATION VENT GEH-WB35X20447
...
299
CLIP WIRE GEH-WB02K0038
...
366
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
420
COVER BACK GEH-WB34K0016
...
702
WASHER GEH-WB01K10034
...
703
BRACKET OVEN CORNER GEH-WB02K0041
...
707
CLIP WIRE GEH-WB02K10267
...
1000
RUBBER BUMPER STRIP GEH-WB04K10036
...
1120
BUMPER GEH-WB02K10179
...
1330
RECEIVER HINGE GEH-WB10X20220
...
1331
SCREW MTG HINGE (TORX) GEH-WB01K0053

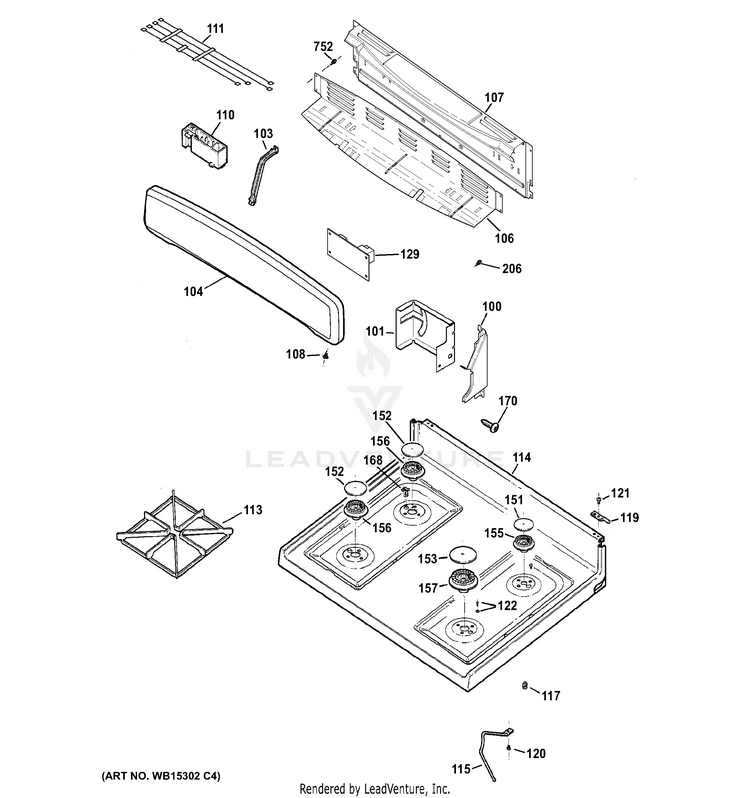

CONTROL PANEL & COOKTOP

...
...
100
END SUPPORT RIGHT GEH-WB07X20277
...
100
END SUPPORT LEFT GEH-WB07X20278
...
101
BRACKET COOK TOP GEH-WB37X20286
...
101
BRACKET COOK TOP GEH-WB37X20285
...
103
BRACKET CONTROL GEH-WB02K10150
...
104
TRIM CONTROL GEH-WB36X21594
...
106
COVER BACK UPPER GEH-WB34K10123
...
107
COVER BACK LOWER GEH-WB34K10129
...
108
SCREW (CR) GEH-WB01X5364
...
110
SPARK MODULE 4+0 GEH-WB13K10029
...
111
ELECTRODES & HARNESS HV GEH-WB18K10098
...
113
GRATE ASM HAIRPIN HV GEH-WB31X20643
...
114
RANGE TOP S.B. GEH-WB62X20276
...
115
SUPPORT RANGETOP GEH-WB02K0091
...
117
PIN LOCATOR FRONT GEH-WB02K0017
...
119
PIN HINGE GEH-WB14K0005
...
120
SCREW WASHER ASM GEH-WB01K0045
...
121
SCREW GEH-WB01K0001
...
121
SCREW 12-14, 5/8S GEH-WB01K0078
...
122
CKT SCREW GEH-WB01K10106
...
129
ELECTRONIC TIMER GEH-WB11K10041
...
151
ASM BURNER CAP (5000) GEH-WB29K10022
...
152
ASM BURNER CAP (9500) GEH-WB29K10023
...
153
ASM BURNER CAP (12000) GEH-WB29K10024
...
155
SMALL BURNER V 5K GEH-WB16K10070
...
156
BURNER MEDIUM (9500) GEH-WB16K10055
...
157
BURNER 12K GEH-WB16T10046
...
168
CLIP ELECTRODE GEH-WB01K10112
...
170
SCREW WH GEH-WB01X5874
...
206
SCREW GEH-WB01K10091
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345

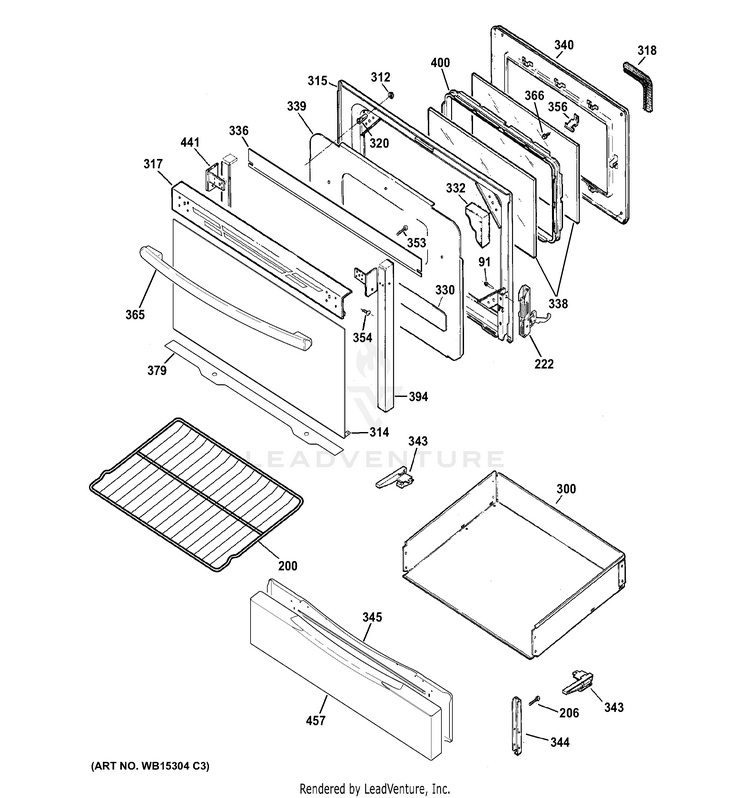

DOOR & DRAWER PARTS

...
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
200
OVEN RACK GEH-WB48X20249
...
206
SCREW GEH-WB01K10091
...
222
HINGE DOOR GEH-WB10X21659
...
300
DRAWER BODY GEH-WB58K10015
...
312
CONTOURED WASHER GEH-WB01X0119
...
314
GLASS OVEN DOOR ASM GEH-WB57X21442
...
315
LINER ASM WELD DOOR GEH-WB56X20537
...
317
TRIM TOP DOOR (WH) GEH-WB07K0400
...
318
GASKET ASM DOOR GEH-WB04K10022
...
320
SPACER GEH-WB02K10161
...
330
REFLECTOR 9.5 INCH GEH-WB35K0022
...
332
INSULATION SIDE DOOR GEH-WB35K10149
...
332
INSULATION BOTTOM DOOR GEH-WB35K10150
...
332
INSULATION DOOR GEH-WB35X21686
...
332
INSULATION FRONT DOOR GEH-WB35X21579
...
336
INSULATION DOOR GEH-WB35K10084
...
338
CRYSTAL WINDOW GEH-WB56K0020
...
339
GUARD INSULATION GEH-WB56K0012
...
340
PANEL ASM WELD GEH-WB55K10033
...
343
GLIDER DRAWER GEH-WB02K0068
...
344
BRACKET MOUNTING DRAWER GEH-WB39K0020
...
345
LINER DRAWER GEH-WB63X20840
...
353
SCREW 8-22 PL 1HX 71 GEH-WB01K10012
...
354
SCREW MTG END CAP (WH) GEH-WB01K0066
...
356
CLIP WINDOW GEH-WB02K0056
...
365
HANDLE (LE-WH) GEH-WB15T10214
...
366
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
379
DEFLECTOR BOTTOM DOOR GEH-WB56X21577
...
394
TRIM POST RIGHT GEH-WB07X23481
...
394
TRIM POST LEFT GEH-WB07X23480
...
400
WINDOW SPACER ASM GEH-WB34K10087
...
441
END CAP DOOR - LF (WH) GEH-WB07X7188
...
441
END CAP DOOR - RH (WH) GEH-WB07X7187
...
457
PANEL DRAWER GEH-WB56X20397

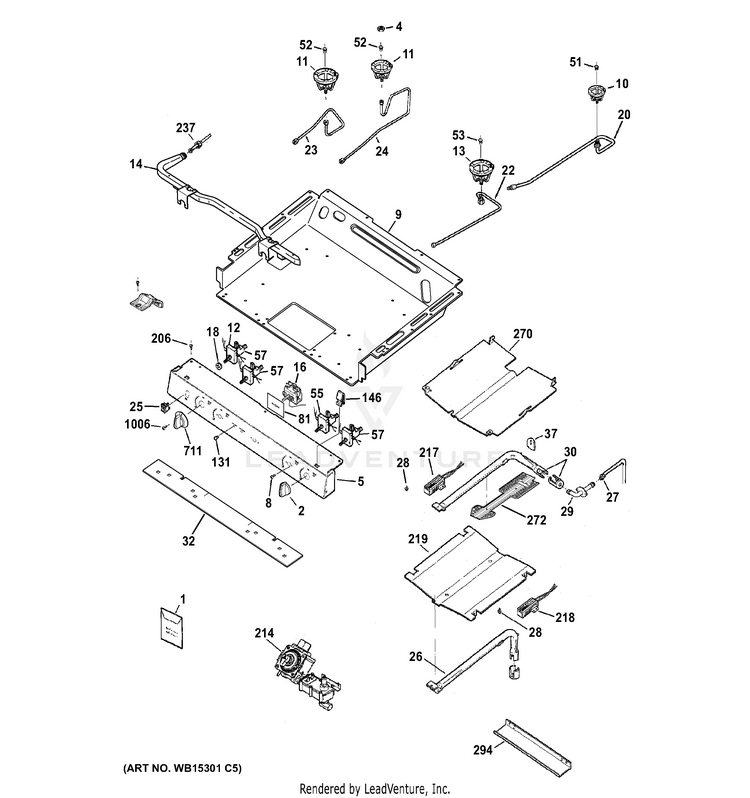

GAS & BURNER PARTS

...
...
1
PM OWNERS MANUAL GEH-49-85209
...
1
PM MANUAL MINI & WD ASM GEH-31-17145
...
1
PM INSTALL INSTRUCTIONS GEH-31-10897
...
1
KNOB THERMOSTAT GEH-223C7197P009
...
1
SUPPORT MANIFOLD ECO. GEH-221C3758P004
...
1
PM INSTALL INSTRUCTIONS GEH-31-10948
...
1
KNOB VALVE GEH-222D7615P002
...
2
COVER KNOB GEH-223C7102P001
...
2
KNOB VALVE ASM GEH-WB03X20281
...
2
FRONT MANIFOLD BKT. GEH-317B6553P003
...
2
SKIRT KNOB GEH-223C7196P012
...
4
ECONOMIC NUT GEH-WB01K10037
...
5
MANIFOLD PANEL GEH-WB36X23607
...
8
SCREW 8-32 GEH-WB01K10002
...
9
BOX BURNER SP GEH-WB63K10190
...
10
CKT BRACKET SMALL GEH-WB02K10360
...
11
CKT BRACKET MDM & LGE GEH-WB02K10361
...
12
HARNESS BURNER BOX GEH-WB24K10071
...
13
CKT BRACKET MDM & LGE GEH-WB02K10362
...
14
MANIFOLD PIPE GEH-WB28X23525
...
16
THERMOSTAT SCG GEH-WB20K10021
...
18
COVER VALVE GEH-WB02K0024
...
20
REAR ORIFICE HOLDER GEH-WB28K10187
...
22
FRONT ORIFICE HOLDER GEH-WB28K10803
...
23
FRONT ORIFICE HOLDER GEH-WB28K10190
...
24
REAR ORIFICE H R 150N 95 GEH-WB28K10188
...
25
SWITCH ROCKER SEALED GEH-WB24X20459
...
26
BURNER BAKE GEH-WB16X20463
...
27
TUBE BURNER SUPPLY GEH-WB28X20296
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
29
ELBOW 90 ASM GEH-WB28X20295
...
30
BURNER BROIL GEH-WB16K10086
...
32
INSULATION BURNER BOX GEH-WB35K10029
...
37
IGNITER COVER GEH-WB34K0014
...
51
ORIFICE SPUD GEH-WB28K10834
...
52
ORIFICE-LP 89MM GEH-WB28K10023
...
53
ORIFICE-LP LG 99MM GEH-WB28K10032
...
57
VALVE BURNER 140 GEH-WB21K0038
...
81
CARTON COVER THERMOSTAT GEH-WB02X21087
...
131
LENS GEH-WB25K0002
...
146
CLIP RANGETOP GEH-WB02K0052
...
206
SCREW GEH-WB01K10091
...
214
VALVE CONTROL ASM NOR.D GEH-WB21X20293
...
217
IGNITER GLOWBAR GEH-WB13K10026
...
218
IGNITER-OVEN BAKE GEH-WB13K0021
...
219
FLAME SPREADER GEH-WB49K0044
...
237
TUBE MANIFOLD SUPPLY GEH-WB28K10173
...
270
DEFLECTOR GEH-WB49K10025
...
272
SHIELD BROIL GEH-WB34X20303
...
294
COVER TERMINAL GEH-WB63K10040
...
711
THERMOSTAT KNOB ASM GEH-WB03X23606
...
1006
SCREW 8-32 TPT FLR 215 S GEH-WB01T10020
