GE JES1456DS3WW Microwave Or Advantium

Model: JES1456DS3WW

Save Part Not Listed?
product name

Popular Parts

Popular Parts

CONTROL PARTS

...
...
106
SCREW HANDLE GEH-WB01X10122
...
2003
DOOR LEVER GEH-WB02X23920
...
2004
CONTROL PANEL ASM, WH GEH-WB56X23927
...
2005
BUTTON SPRING GEH-WB09X10006
...
2006
PCB ASM GEH-WB27X27261
...
2381
CONTROL PANEL SUBASM, WH GEH-WB56X23928

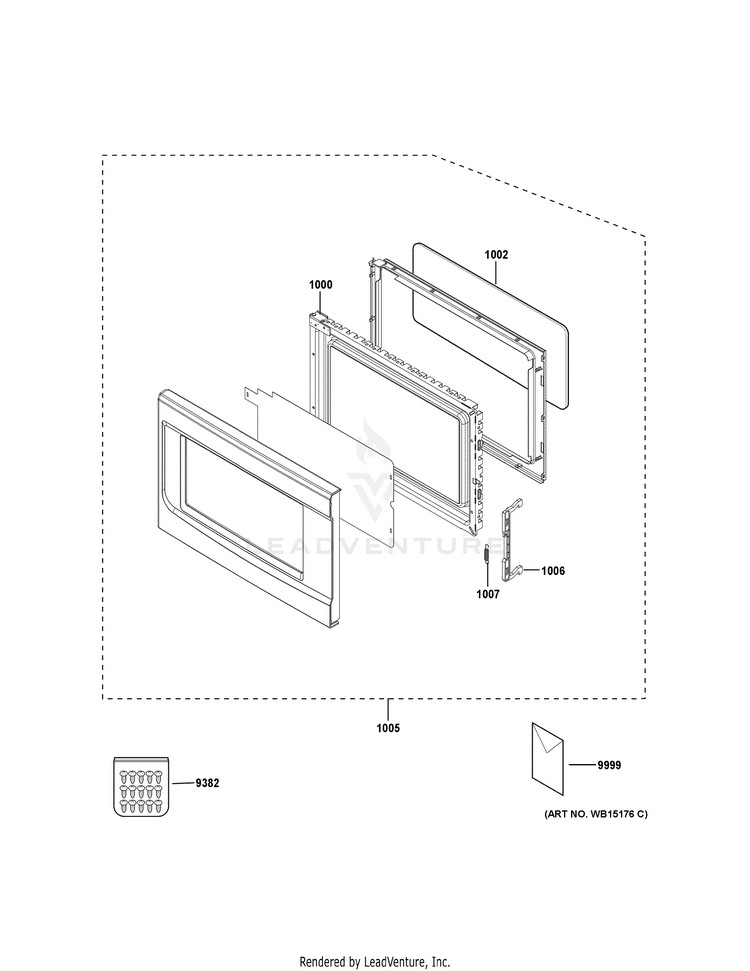

DOOR PARTS

...
...
1000
DOOR FRAME ASM WHT GEH-WB55X10692
...
1002
SEAL TAPE GEH-WB55X10691
...
1005
DOOR ASM, WW GEH-WB56X10985
...
1006
LATCH DOOR GEH-WB06X10093
...
1007
SPRING GEH-WB09X10015
...
9382
CMO HARDWARE ASM BAG GEH-WB01X10296
...
9999
MINI MANUAL GEH-31-41077
...
9999
PM QUICK REF CMO N-CONV GEH-49-40731

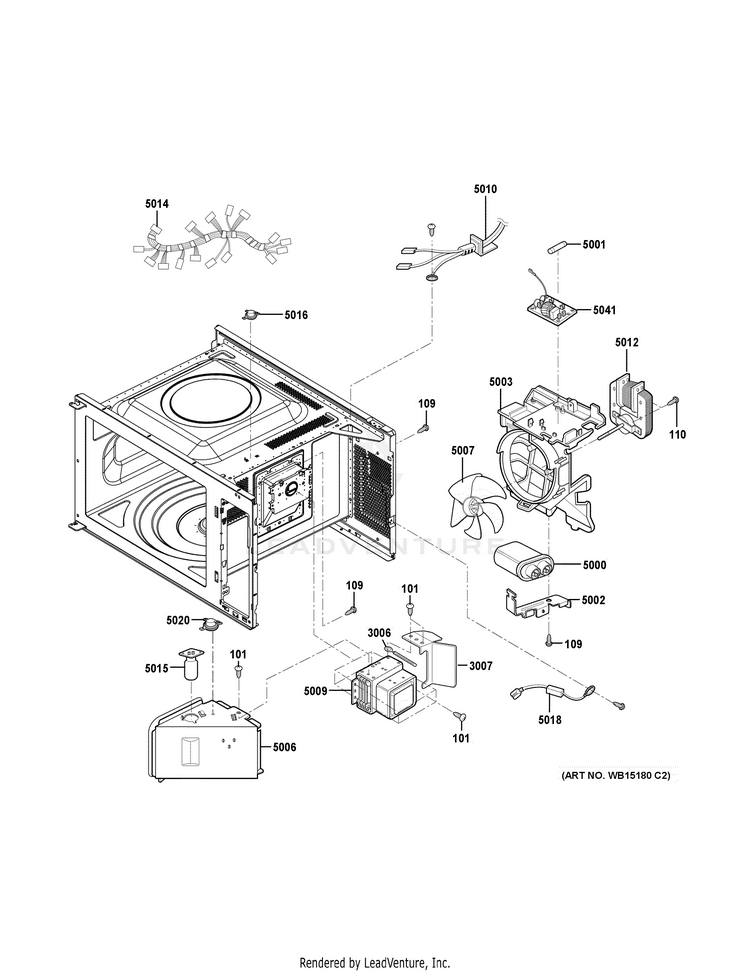

INTERIOR PARTS (1)

...
...
101
WB02X10745 GEH-WB02X10777
...
109
SCREW TAPPING GEH-WB01X1515
...
110
SCREW TAPPING TRUSS HEAD GEH-WB02X10720
...
3006
HOLDER WIRE GEH-WB02X11233
...
3007
INSULATOR GEH-WB06X10544
...
5000
CAPACITOR,DRAWING HIGH V GEH-WB27X10805
...
5001
FUSE GEH-WB27X10928
...
5002
BRACKET HVC GEH-WB06X10306
...
5003
SUCTION, GUIDE GEH-WB38X10146
...
5006
DUCT GEH-WB06X10543
...
5007
FAN GEH-WB38X10078
...
5009
MAGNETRON GEH-WB27X10876
...
5010
POWER CORD ASM GEH-WB18X10511
...
5012
MOTOR,AC FAN GEH-WB26X10267
...
5014
HARNESS,MULTI GEH-WB18X10512
...
5015
LAMP GEH-WB36X10063
...
5016
THERMOSTAT GEH-WB24X10163
...
5018
DIODE GEH-WB27X10930
...
5020
THERMOSTAT GEH-WB27X11100
...
5041
FILTER, AC LINE GEH-WB27X11178

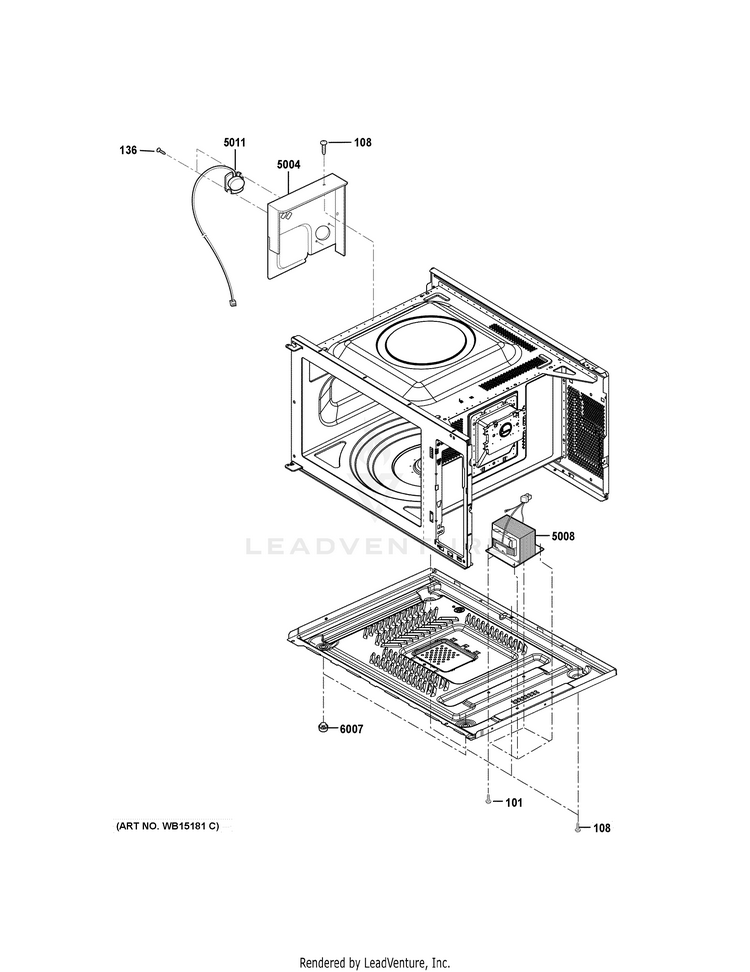

INTERIOR PARTS (2)

...
...
101
WB02X10745 GEH-WB02X10777
...
108
SCREW TAPPING GEH-WB01X1514
...
136
SCREW - PAN HEAD TAPPING GEH-WB02X10730
...
5004
DUCT GEH-WB06X10736
...
5008
HV TRANSFORMER GEH-WB20X10066
...
5011
SENSOR - HUMIDITY GEH-WB24X10057
...
6007
FOOT GEH-WB06X10307

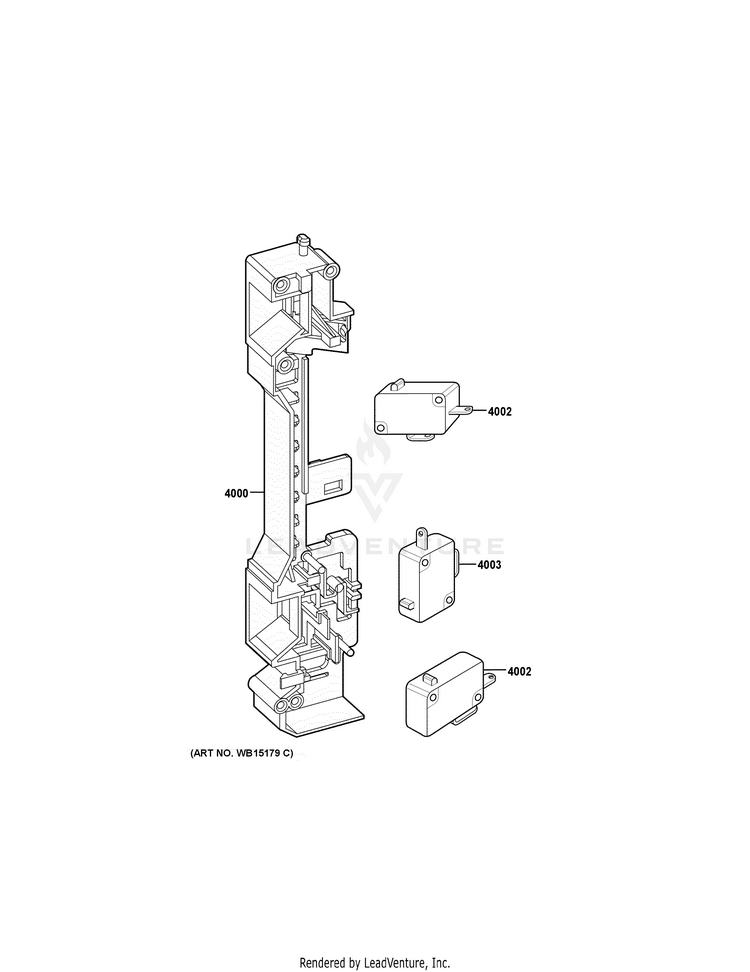

LATCH BOARD PARTS

...
...
4000
BOARD,LATCH GEH-WB06X10546
...
4002
SW PRIM INTERLOCK & DOOR GEH-WB24X10047
...
4003
SWITCH MICRO GEH-WB24X0817

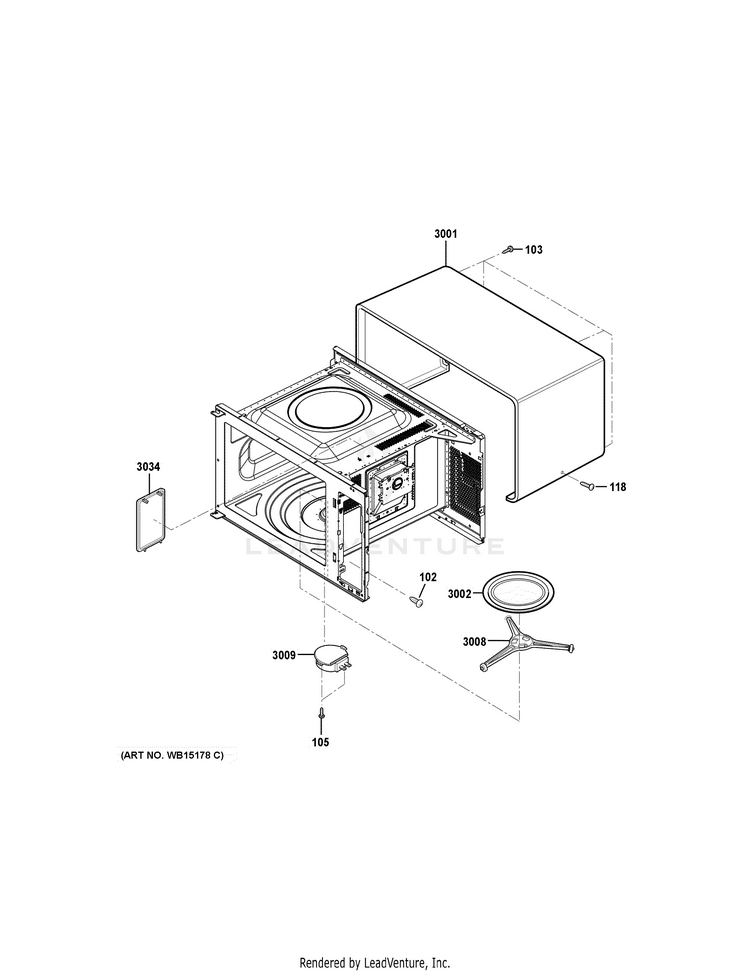

OVEN CAVITY PARTS

...
...
102
SCREW GEH-WB01X10121
...
103
SCREW GEH-WB02X10727
...
105
SCREW - HAND GEH-WB02X10728
...
118
TAP HEAD SCREW GEH-WB01X1511
...
3001
CASE, OUTER GEH-WB56X10986
...
3002
TRAY,GLASS GEH-WB49X10139
...
3008
ROTATING RING ASSEMBLY GEH-WB06X10549
...
3009
MOTOR(CIRC),SYNCHRONOUS GEH-WB26X10143
...
3034
COVER, RESIN GEH-WB06X10764
