GE JCB865SJ7SS Electric Range

Model: JCB865SJ7SS

Back To Assemblies

Save Part Not Listed?
product name

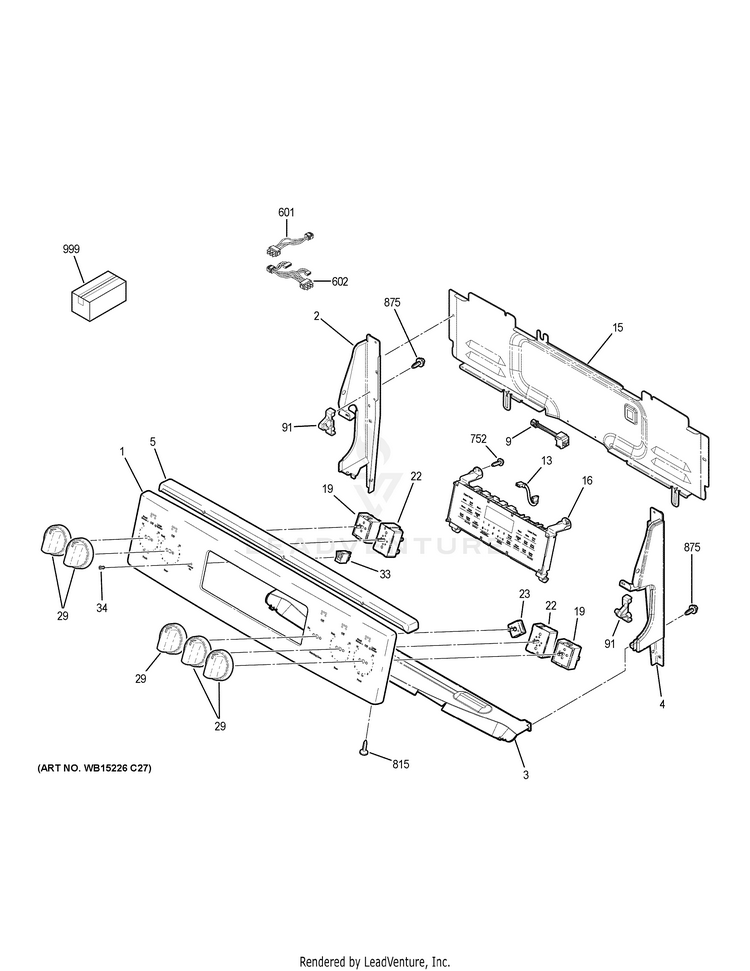

CONTROL PANEL

...
...
1
LABEL WIRE DIAGRAM GEH-229C6465P001
...
1
TRIM CONTROL ASM (SS) GEH-WB07X25055
...
2
END PLATE LH DG GEH-WB07X29534
...
3
BACKGUARD SHIELD HEAT GEH-WB34X28565
...
4
END PLATE RH DG GEH-WB07X29535
...
5
TOP TRIM ASM GEH-WB07X28582
...
9
RJ45 CONNECTOR AND HARNESS GEH-WB27X30706
...
13
JUMPER GEH-WB18X30704
...
15
COVER CONTROL GEH-WB34X25565
...
16
OVEN CONTROL AND OVERLAY ASM WHITE LED GEH-WB27X32143
...
19
SWITCH INFINITE CONTROL GEH-WB24X25013
...
22
CONTROL INFINITE SWITCH GEH-WB24T10029
...
23
SWITCH ROTARY GEH-WB24X25302
...
29
KNOB INFINITE (CH) GEH-WB03X24965
...
33
LIGHT INDICATOR GEH-WB27T10668
...
34
LENS GEH-WB25X24023
...
91
PIN RANGETOP HINGE GEH-WB10T10116
...
601
INFINITE SWITCH HARNESS GEH-WB18X32781
...
602
UI COM HARNESS WIRE GEH-WB18X32734
...
752
SCREW GEH-WB01K5200
...
815
SCR 8-18 AB #60RH 1/2 NI GEH-WB01X26365
...
875
WZ4X245D GEH-WB01T10046
...
999
PM INSTRUCTIONS INSTALL GEH-31-10817
...
999
PM OWNERS MANUAL GEH-49-80772
...
999
PM INSTRUCTION INSTALL GEH-31-10818
...
999
PM MANUAL MINI & WD ASM GEH-31-17223
