GE JBP84BK4BB Electric Range

Model: JBP84BK4BB

Back To Assemblies

Save Part Not Listed?
product name

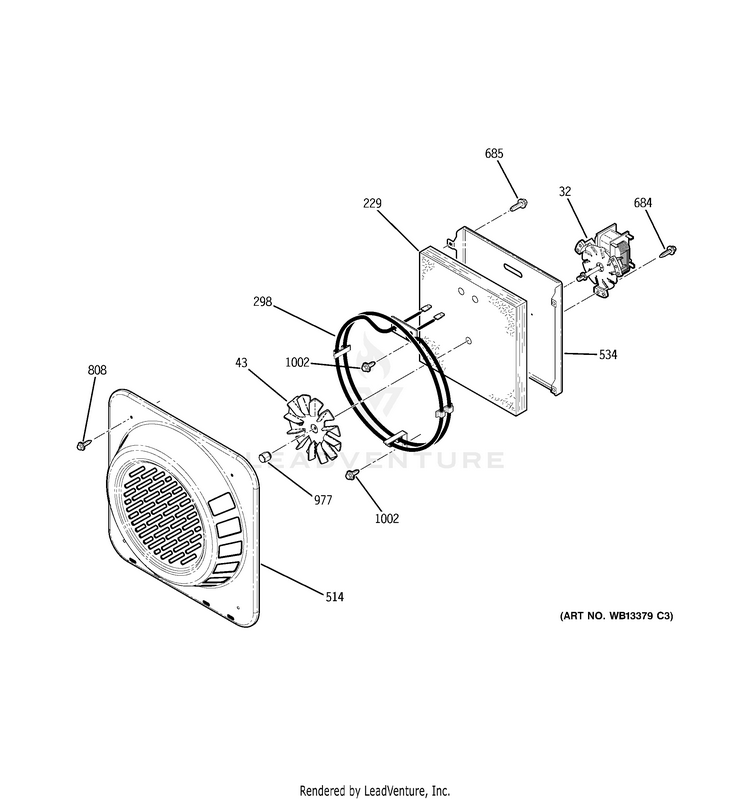

CONVECTION FAN

...
...
32
MOTOR FAN GEH-WB26T10007
...
43
HUB BLADE ASM GEH-WB02T10289
...
229
VENT TUBE INSULATION GEH-WB35T10017
...
229
INSULATION CONV. GEH-WB35T10087
...
298
ELEMENT CONVX GEH-WB44T10053
...
514
COVER FAN (CONVEX) LOWER GEH-WB26T10012
...
534
BRACKET FAN MOTOR CONV GEH-WB02T10180
...
684
SCREW 8-32 X 625 M HXW S GEH-WB01T10047
...
685
SCR 10-16 AB IHW .625 NI GEH-WB01T10072
...
808
SCREW 10-16 AB HXW 750 S GEH-WB01T10058
...
977
NUT GEH-WB02T10017
...
1002
SCREW 8-18 AB IHW 3/8 S GEH-WB01T10017
