GE JBP84BK1BB Electric Range

Model: JBP84BK1BB

Back To Assemblies

Save Part Not Listed?
product name

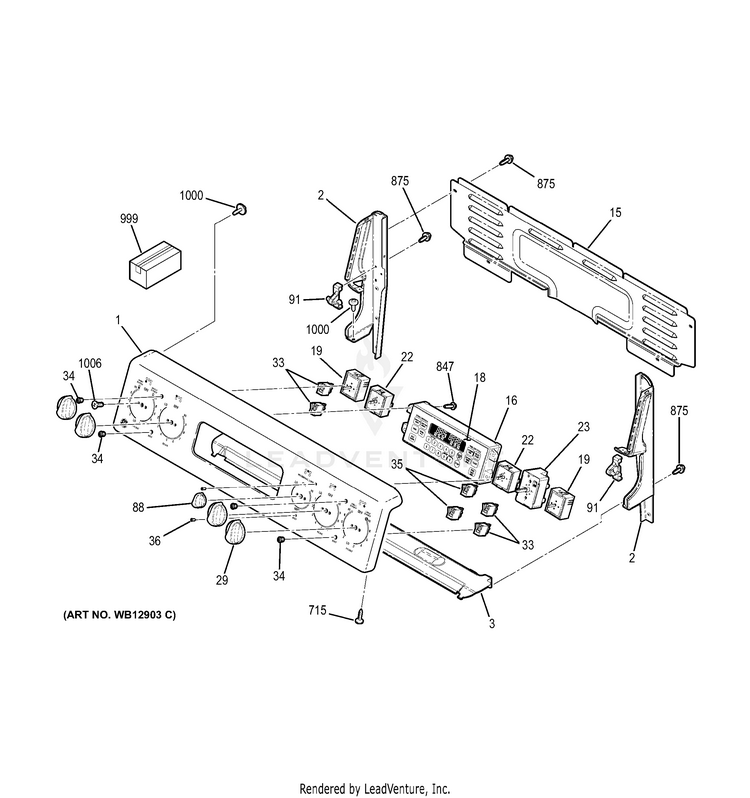

CONTROL PANEL

...
...
1
TRIM & BRACKET ASM GEH-WB36T10806
...
2
END CAP LEFT/BLACK GEH-WB36T10255
...
2
END CAP RT/BLACK GEH-WB36T10254
...
3
SHIELD HEAT (BKGD) GEH-WB02T10306
...
15
COVER CONTROL GEH-WB34T10088
...
16
CONTROL ERC GEH-WB27T10618
...
18
MEMBRANE PLATE ASM GEH-WB27T10667
...
19
SWITCH CONTROL INF GEH-WB27T10384
...
22
SWITCH INFINITE CONTROL GEH-WB24T10058
...
23
CONTROL INFINITE SWITCH GEH-WB24T10029
...
29
KNOB GE SU (BLACK) GEH-WB03T10203
...
33
LIGHT INDICATOR PILOT GEH-WB27T10626
...
33
LIGHT INDICATOR GEH-WB27T10668
...
34
LENS GEH-WB25T10041
...
35
LIGHT INDICATOR PILOT GEH-WB27T10627
...
36
LENS GEH-WB25T10042
...
88
KNOB GE SU GEH-WB03T10204
...
91
MAINTOP HINGE GEH-WB10T10002
...
715
SCREW 8-18 X 5/16 BK GEH-WD02X0432
...
847
SCREW 8-18 X 3/8" GEH-WB01K5167
...
847
SCREW-NICKEL GEH-WB01X1118
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
875
WZ4X245D GEH-WB01T10046
...
999
GLASS CLEANER GEH-WB64X0093
...
1000
SCREW 8-18 AB HXW 5/8 S GEH-WB01T10016
...
1006
SCREW 8-32 TPT FLR 215 S GEH-WB01T10020
