GE JBP69BH2BB Electric Range

Model: JBP69BH2BB

Save Part Not Listed?
product name

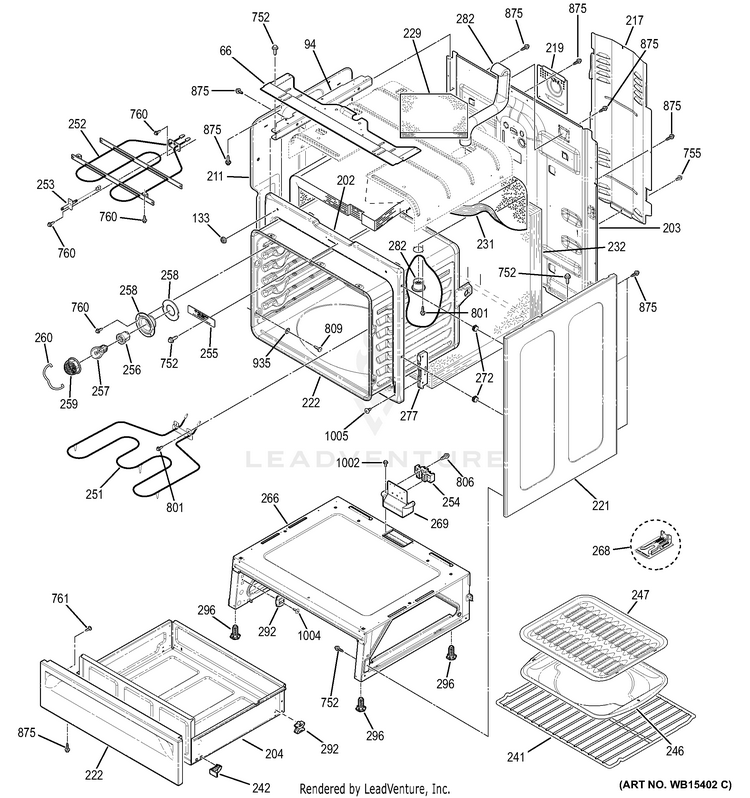

BODY PARTS

...
...
66
ENCLOSURE RANGETOP GEH-WB34T10023
...
94
BRACE CHASSIS (RAD) GEH-WB02T10132
...
94
BRACE CHASSIS (RAD) GEH-WB02T10133
...
133
DOOR PAD GEH-WB01T10026
...
202
FRAME FRONT GEH-WB63T10093
...
203
MAIN BACK GEH-WB63T10047
...
204
LINING STORAGE DRAWER GEH-WB55T10046
...
211
SIDE INSULATION RETAINER GEH-WB02T10028
...
217
BACK COVER GEH-WB34T10012
...
219
COVER RECEPTACLE GEH-WB34T10011
...
221
BODY SIDE/BLACK GEH-WB63T10051
...
222
FRONT PANEL STOR/BLACK GEH-WB56T10022
...
229
VENT TUBE INSULATION GEH-WB35T10017
...
231
OVEN TOP/SIDE INSULATION GEH-WB35T10012
...
232
OVEN BACK INSULATION GEH-WB35T10011
...
241
OVEN RACK GEH-WB48T10011
...
242
DRAWER GUIDE GEH-WB48T10012
...
246
WB48T10001 GEH-WB48T10005
...
247
BROIL PAN (261D656P010) GEH-WB48T10006
...
251
UNIT BAKE AS GEH-WB44T10011
...
252
UNIT BROIL A GEH-WB44T10009
...
253
SENSOR ASM GEH-WB21T10007
...
254
TERMINAL BLOCK ASM GEH-WB17T10011
...
255
LATCH TRIM GEH-WB07X7175
...
256
RECEPTACLE PUSH-IN GEH-WB08T10026
...
257
40A15 GEH-WX12X1510
...
258
GASKET OVEN LIGHT GEH-WB02T10027
...
258
OVEN LIGHT CUP GEH-WB02T10037
...
259
OV LAMP LENS GEH-WB36X0389
...
260
LIGHT LENS BAIL GEH-WB02X7694
...
266
BASE RIVET ASSY GEH-WB39T10001
...
268
ANTI TIP BKT GEH-WB02T10069
...
269
TERMINAL BOX GEH-WB17T10002
...
272
SIDE PANEL SUPPORT GEH-WB02T10034
...
277
HINGE RECEIVER GEH-WB10T10041
...
282
TUBE VENT RADIANT GEH-WB38T10022
...
282
VENT TUBE ASSY GEH-WB38T10012
...
292
SUPPORT REAR GEH-WB48T10030
...
292
DRAWER SUPPORT FRT GEH-WB48T10013
...
296
LEG LEVELER GEH-WB02X10521
...
752
SCREW GEH-WB01K5200
...
755
SCREW GEH-WZ04X0044
...
760
SCREW GEH-WB01K5028
...
761
SCREW (CR) GEH-WB01X5364
...
801
SCREW GEH-WB01M0001
...
806
SCR 8-18 AB IHW 5/8 S GEH-WH02X1186
...
809
SCREW GEH-WB01X1137
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
875
WZ4X245D GEH-WB01T10046
...
935
WASHER GEH-WB01K5174
...
1002
SCREW 8-18 AB IHW 3/8 S GEH-WB01T10017
...
1004
SCR 8-15 A HXW 7/8 S GEH-WH02X0941
...
1005
SCREW 10-32 TR T GEH-WB01T10008

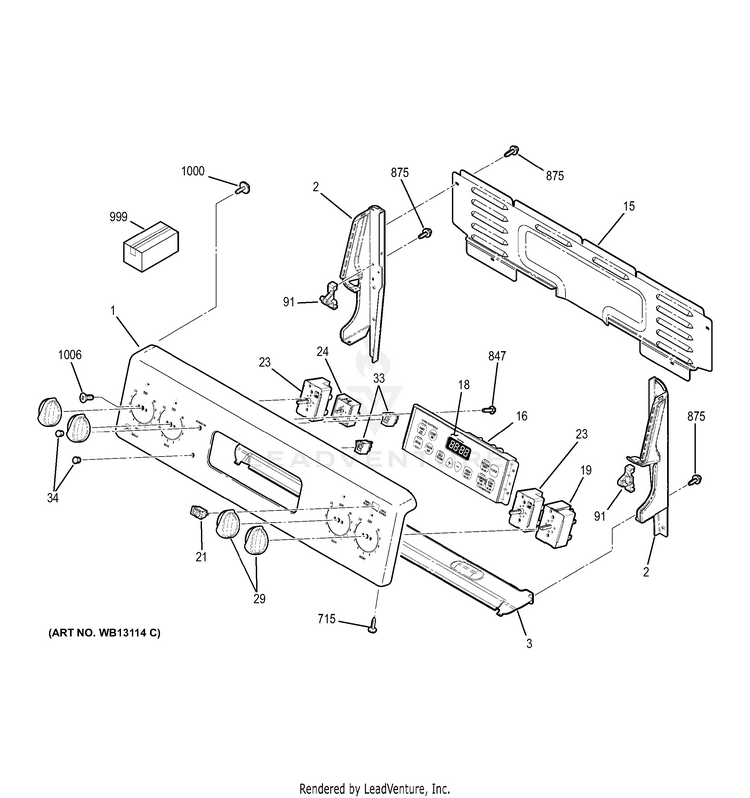

CONTROL PANEL

...
...
1
TRIM & BRACKET ASM GEH-WB36T10683
...
2
END CAP LEFT/BLACK GEH-WB36T10255
...
2
END CAP RT/BLACK GEH-WB36T10254
...
3
HEAT SHIELD GEH-WB02T10022
...
15
COVER CONTROL GEH-WB34T10088
...
16
CONTROL OVEN TO-9 GEH-WB27T10467
...
18
FACEPLATE GRAPHICS ASM GEH-WB27T10513
...
19
SWITCH INFINITE CONTROL GEH-WB24T10058
...
21
SWITCH ROCKER (ELEM) GEH-WB24T10049
...
23
CONTROL INFINITE SWITCH GEH-WB24T10029
...
24
INF SW CTN (2100W) GEH-WB24T10027
...
29
KNOB GE SU (BLACK) GEH-WB03T10203
...
33
INDICATOR LIGHT GEH-WB27T10113
...
34
INDICATOR LIGHT LENS GEH-WB25X5054
...
91
MAINTOP HINGE GEH-WB10T10002
...
715
SCREW 8-18 X 5/16 BK GEH-WD02X0432
...
847
SCREW-NICKEL GEH-WB01X1118
...
875
WZ4X245D GEH-WB01T10046
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
999
MANUAL USE & CARE GEH-49-80178
...
999
MANUAL MINI & WD ASM GEH-31-14166
...
999
INSTRUCTION INSTALL GEH-31-10563N++
...
999
GLASS CLEANER GEH-WB64X0093
...
1000
SCREW 8-18 AB HXW 5/8 S GEH-WB01T10016
...
1006
SCREW 8-32 TPT FLR 215 S GEH-WB01T10020

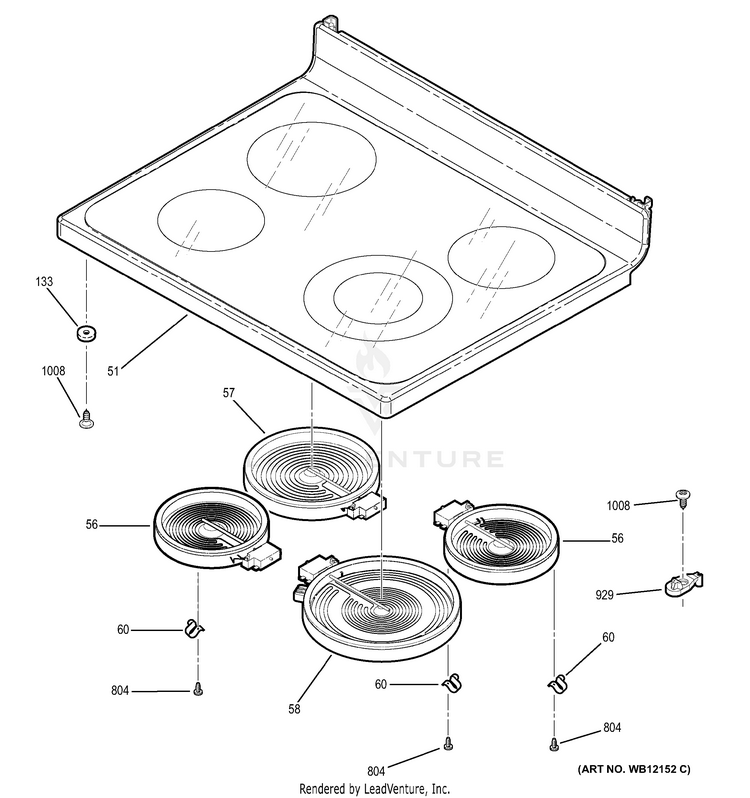

COOKTOP

...
...
51
RANGETOP ASM RADIANT GEH-WB62T10263
...
56
ELEMENT HALIANT 6" GEH-WB30T10047
...
57
HALIANT ELEMENT 8" GEH-WB30T10045
...
58
ELEMENT HALIANT 9" GEH-WB30T10044
...
60
RADIANT SPRING ELEMENT GEH-WB09T10002
...
133
DOOR PAD GEH-WB01T10026
...
804
SCREW GEH-WB01X1127
...
929
MAINTOP STRIKE GEH-WB02T10026
...
1008
SCR 8-18 BA POR 3/4 SN GEH-WB01X5904

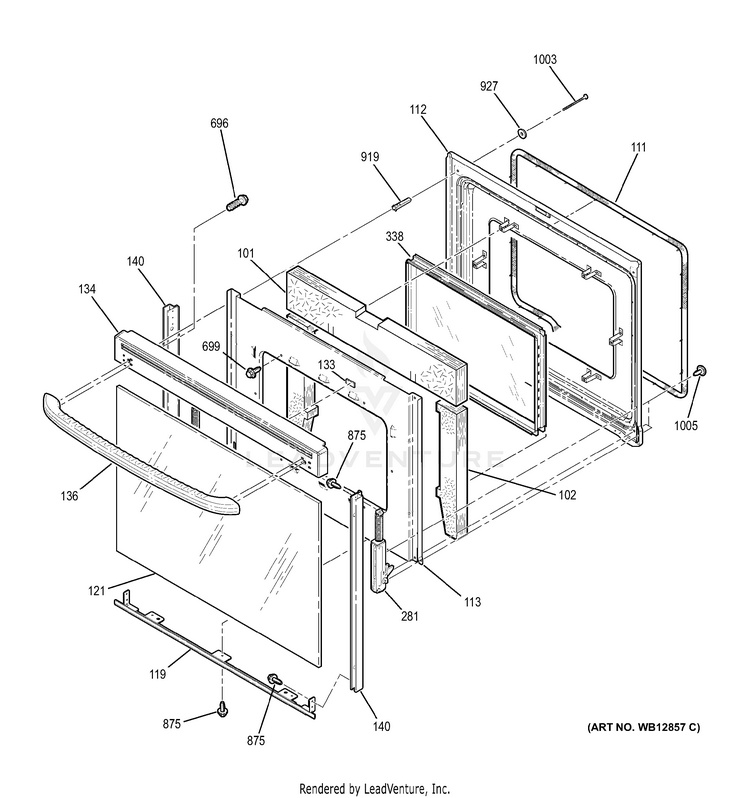

DOOR

...
...
101
DOOR INSULATION GEH-WB35T10016
...
102
DOOR INSULATION GEH-WB35T10018
...
111
GASKET OVN GEH-WB04T10022
...
112
LINER OVN DR ASM GEH-WB55T10120
...
113
INSLN RETAINER GEH-WB56T10027
...
119
TRIM DR BTM CHNL GEH-WB07T10268
...
121
GLASS OVN DR (BLK) GEH-WB56T10142
...
133
DOOR PAD GEH-WB01T10026
...
134
TRIM VENT DOOR (GE) GEH-WB07T10220
...
136
HANDLE ASSY (BLACK) GEH-WB15K10046
...
140
FRAME DOOR SIDE GEH-WB56T10096
...
281
HINGE DOOR GEH-WB10T10058
...
338
FRAME WINDOW PACK ASSY GEH-WB55T10064
...
696
SCREW 8-19 HI/LO IHW 5/8 GEH-WB01T10013
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
875
WZ4X245D GEH-WB01T10046
...
919
SPACER GEH-WB02T10175
...
927
CONTOURED WASHER GEH-WB01X0119
...
1003
SCR 10-16 PL PNT 2.5 S GEH-WB01T10067
...
1005
SCREW 10-32 TR T GEH-WB01T10008

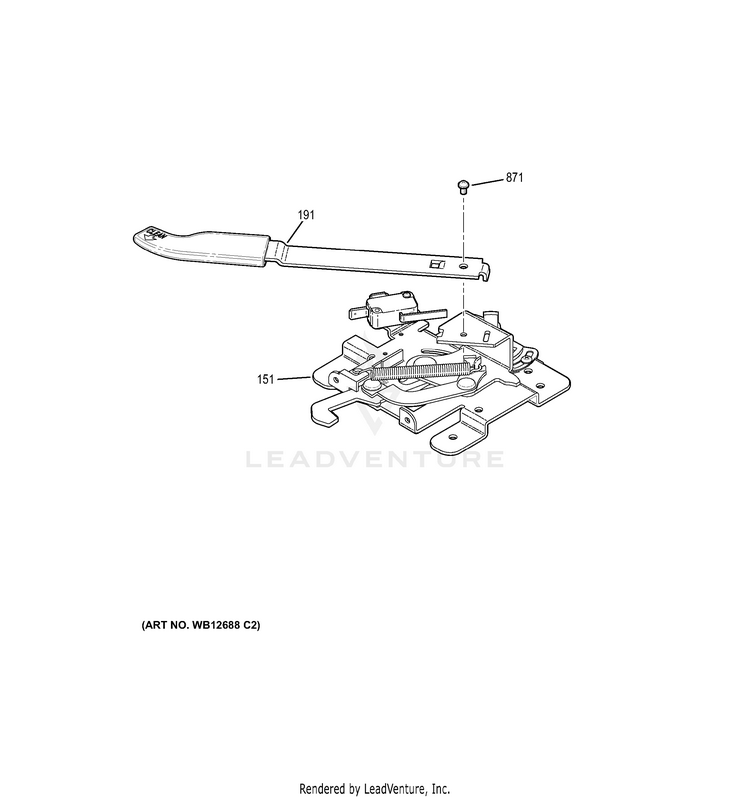

DOOR LOCK

...
...
151
LATCH MECHANICAL GEH-WB14T10011
...
191
WB15T10017 GEH-WB15T10037
...
871
SCREW GEH-WB01M0013
