GE JBP68MK2BS Electric Range

Model: JBP68MK2BS

Save Part Not Listed?
product name

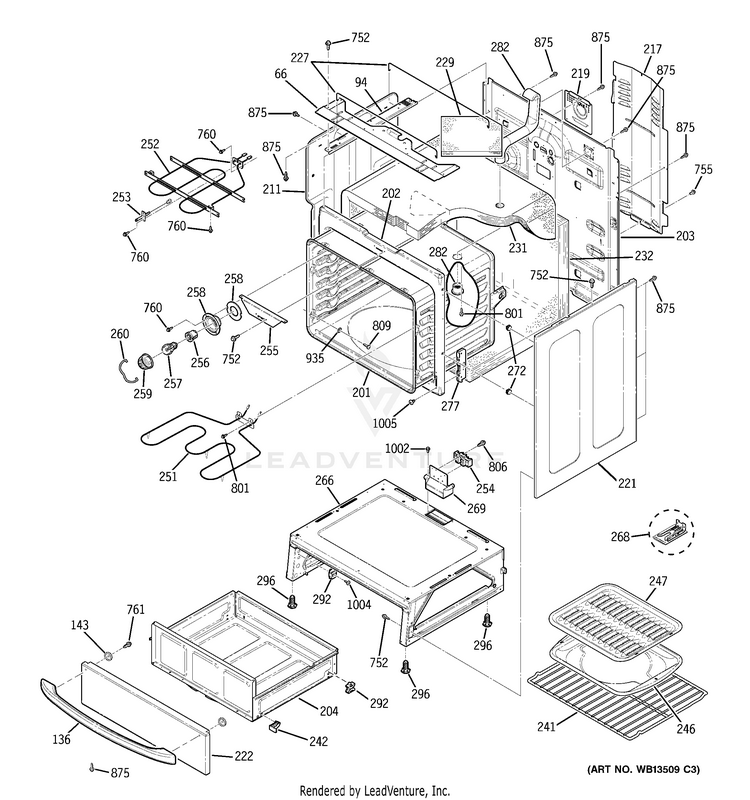

BODY PARTS

...
...
66
ENCLOSURE RANGETOP GEH-WB34T10023
...
94
BRACE CHASSIS (RAD) GEH-WB02T10132
...
94
BRACE CHASSIS (RAD) GEH-WB02T10133
...
136
HANDLE BK GEH-WB15T10133
...
143
BRACKET OVN HDL VNT TRM GEH-WB02T10278
...
143
WASHER .250 ID X .812 OD GEH-WB01K5117
...
201
WRAPPER OVEN CAVITY GEH-WB63T10046
...
202
FRAME FRONT GEH-WB63T10093
...
203
MAIN BACK GEH-WB63T10047
...
204
LINING STORAGE DRAWER GEH-WB55T10046
...
211
GUARD INSLN SDE GEH-WB02T10275
...
217
BACK COVER GEH-WB34T10012
...
219
COVER RECEPTACLE GEH-WB34T10011
...
221
PANEL SIDE (BLK) GEH-WB63T10108
...
222
OVERLAY & PANEL DRW ASM GEH-WB56T10206
...
227
WIRE INSLN OVN GEH-WB02T10252
...
227
WIRE INSULATION OVEN GEH-WB02T10196
...
229
VENT TUBE INSULATION GEH-WB35T10017
...
231
INSULATION OVEN GEH-WB35T10112
...
232
INSULATION OVN BACK/BTTM GEH-WB35T10113
...
241
OVEN RACK GEH-WB48T10011
...
242
DRAWER GUIDE GEH-WB48T10012
...
246
WB48T10001 GEH-WB48T10005
...
247
BROIL PAN (261D656P010) GEH-WB48T10006
...
251
UNIT BAKE AS GEH-WB44T10011
...
252
UNIT BROIL ASM (STD) GEH-WB44T10034
...
253
SENSOR ASM GEH-WB21T10007
...
254
TERMINAL BLOCK ASM GEH-WB17T10012
...
255
LATCH TRIM GEH-WB07X7175
...
256
RECEPTACLE PUSH-IN GEH-WB08T10026
...
257
40A15 GEH-WX12X1510
...
258
OVEN LIGHT CUP GEH-WB02T10037
...
258
GASKET OVEN LIGHT GEH-WB02T10027
...
259
OV LAMP LENS GEH-WB36X0389
...
260
LIGHT LENS BAIL GEH-WB02X7694
...
266
BASE RIVET ASM GEH-WB39T10007
...
268
ANTI TIP BKT GEH-WB02T10069
...
269
MOUNT TERMINAL BLOCK GEH-WB17T10021
...
272
SIDE PANEL SUPPORT GEH-WB02T10034
...
277
HINGE RECEIVER GEH-WB10T10068
...
282
TUBE VENT RADIANT GEH-WB38T10022
...
282
VENT TUBE ASSY GEH-WB38T10012
...
292
DRAWER SUPPORT FRT GEH-WB48T10013
...
292
SUPPORT REAR GEH-WB48T10030
...
296
LEG LEVELER GEH-WB02X10521
...
752
SCREW GEH-WB01K5200
...
755
SCREW GEH-WZ04X0044
...
760
SCREW GEH-WB01K5028
...
761
SCREW (CR) GEH-WB01X5364
...
801
SCREW GEH-WB01M0001
...
806
SCR 8-18 AB IHW 5/8 S GEH-WH02X1186
...
809
SCREW GEH-WB01X1137
...
875
WZ4X245D GEH-WB01T10046
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
935
WASHER GEH-WB01K5174
...
1002
SCREW 8-18 AB IHW 3/8 S GEH-WB01T10017
...
1004
SCR 8-15 A HXW 7/8 S GEH-WH02X0941
...
1005
SCREW 10-32 TR T GEH-WB01T10008

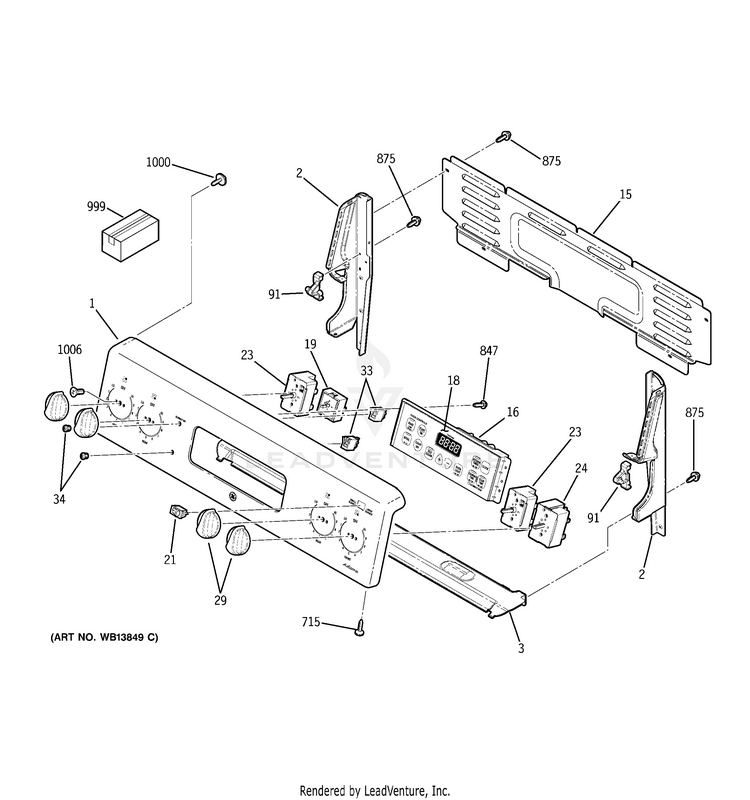

CONTROL PANEL

...
...
1
OVERLAY & TAPE ASM GEH-WB27T10781
...
2
END CAP LEFT/BLACK GEH-WB36T10255
...
2
END CAP RT/BLACK GEH-WB36T10254
...
3
SHIELD HEAT (BKGD) GEH-WB02T10306
...
15
COVER CONTROL GEH-WB34T10088
...
16
CONTROL OVEN TO-9 GEH-WB27T10467
...
18
FACEPLATE GRAPHICS GEH-WB27T10675
...
19
INF SW CTN (2100W) GEH-WB24T10027
...
21
SWITCH ROCKER (ELEM) GEH-WB24T10049
...
23
CONTROL INFINITE SWITCH GEH-WB24T10029
...
24
SWITCH INFINITE CONTROL GEH-WB24T10058
...
29
KNOB GE SU (BLACK) GEH-WB03T10203
...
33
LIGHT INDICATOR PILOT GEH-WB27T10626
...
34
LENS GEH-WB25T10041
...
91
MAINTOP HINGE GEH-WB10T10002
...
715
SCREW 8-18 X 5/16 BK GEH-WD02X0432
...
847
SCREW-NICKEL GEH-WB01X1158
...
875
WZ4X245D GEH-WB01T10046
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
999
GLASS CLEANER GEH-WB64X0093
...
999
INSTRUCTION INSTALL GEH-31-10617
...
1000
SCREW 8-18 AB HXW 5/8 S GEH-WB01T10016
...
1006
SCREW 8-32 TPT FLR 270 GEH-WB01T10053

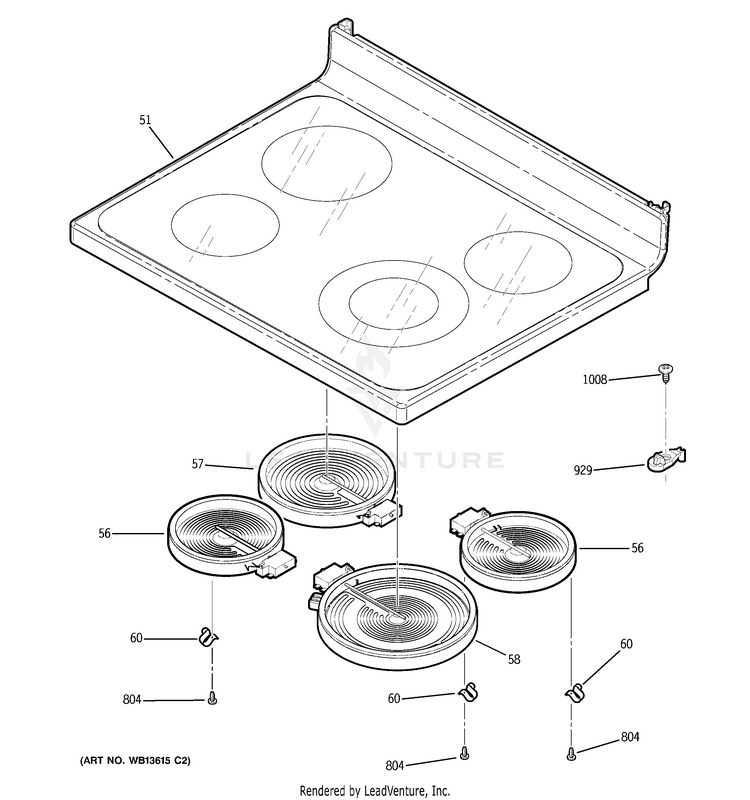

COOKTOP

...
...
51
RANGETOP ASM RADIANT GEH-WB62T10455
...
56
ELEMENT HALIANT 6" GEH-WB30T10047
...
57
HALIANT ELEMENT 8" GEH-WB30T10045
...
58
ELEMENT HALIANT 9" GEH-WB30T10044
...
60
RADIANT SPRING ELEMENT GEH-WB09T10002
...
804
SCREW GEH-WB01X1127
...
929
MAINTOP STRIKE GEH-WB02T10026
...
1008
SCR 8-18 BA POR 3/4 SN GEH-WB01X5904

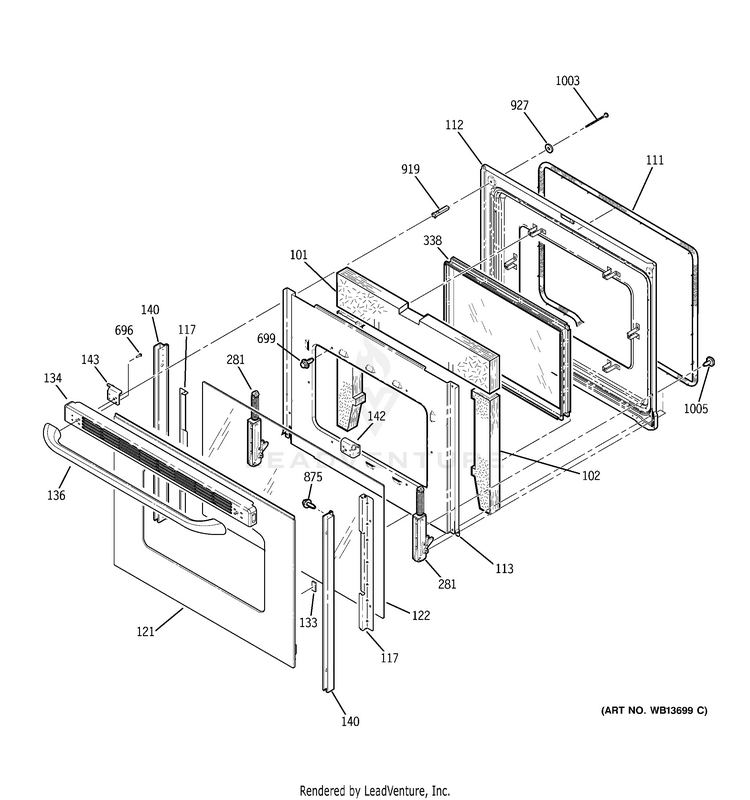

DOOR

...
...
101
DOOR INSULATION GEH-WB35T10016
...
102
INSULATION DOOR GEH-WB35T10114
...
111
GASKET OVN GEH-WB04T10022
...
112
LINER OVEN DR ASM GEH-WB55T10153
...
113
RETAINER OVN DR INSLN GEH-WB56T10178
...
117
RETAINER GLASS OVEN DR GEH-WB56T10181
...
121
DOOR PANEL ASM ALUM GEH-WB56T10207
...
122
OVEN DOOR GLASS-INNER GEH-WB57K5230
...
133
DOOR PAD GEH-WB01T10026
...
133
TAPE FOAM GEH-WB01T10055
...
133
TAPE FOAM GEH-WB01T10052
...
134
TRIM VENT DOOR GEH-WB07T10480
...
136
HANDLE BK GEH-WB15T10133
...
140
FRAME DOOR SIDE GEH-WB56T10096
...
142
BRACKET OVN HDL VNT TRM GEH-WB02T10277
...
143
BRACKET OVN HDL VNT TRM GEH-WB02T10278
...
143
WASHER .250 ID X .812 OD GEH-WB01K5117
...
281
HINGE DOOR GEH-WB10T10067
...
338
PACK WINDOW ASM GEH-WB55T10160
...
696
SCREW GEH-WB01K5156
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
875
WZ4X245D GEH-WB01T10046
...
919
SPACER GEH-WB02T10175
...
927
CONTOURED WASHER GEH-WB01X0119
...
1003
SCR 10-16 PL PNT 2.5 S GEH-WB01T10067
...
1005
SCREW 10-32 TR T GEH-WB01T10008

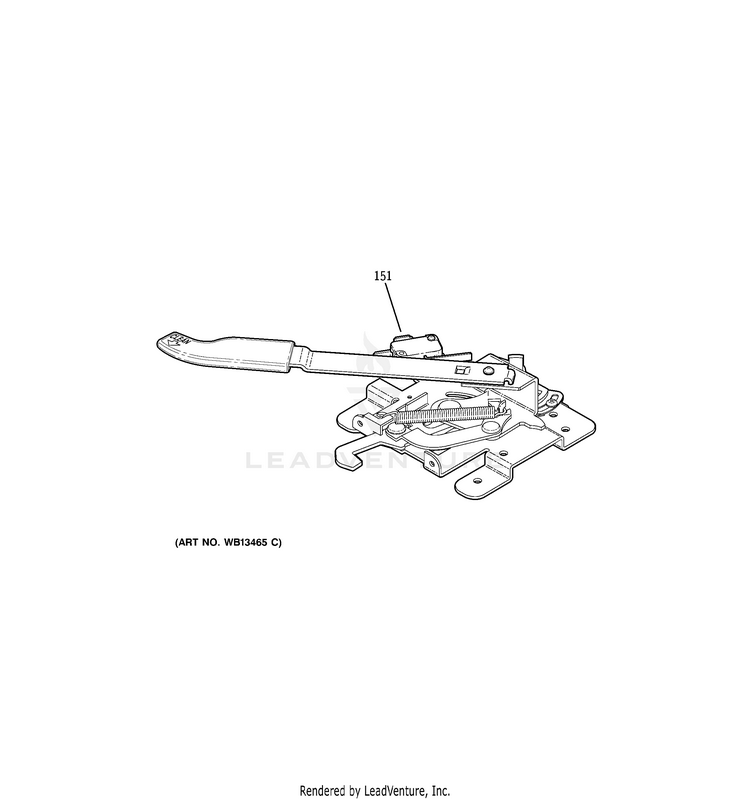

DOOR LOCK

...

No Parts Available for this Schematic
