GE JBP23DN1BB Electric Range

Model: JBP23DN1BB

Save Part Not Listed?
product name

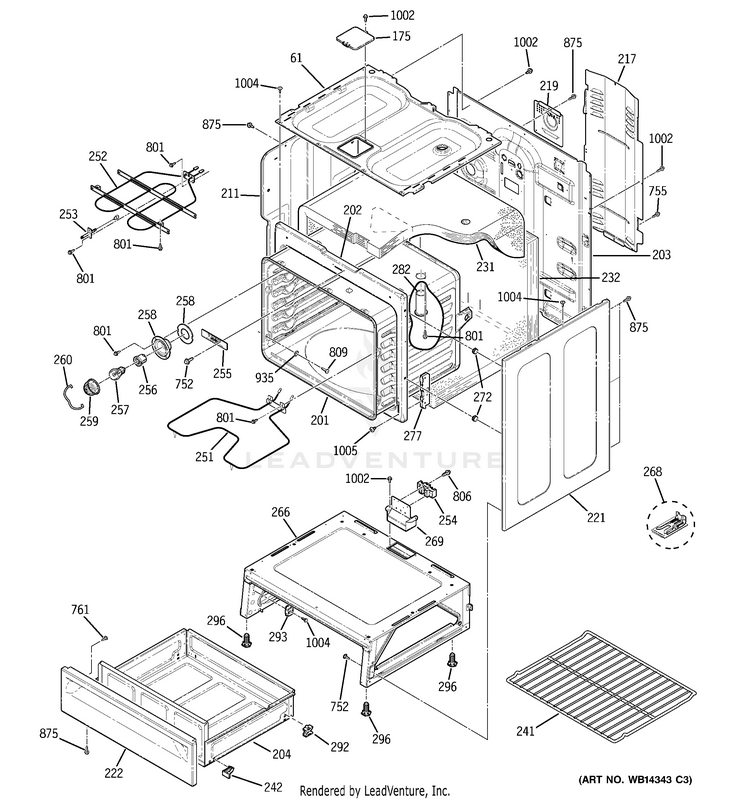

BODY PARTS

...
...
61
BURNER BOX GEH-WB64T10016
...
175
LATCH COVER GEH-WB02T10021
...
201
WRAPPER OVEN CAVITY GEH-WB63T10046
...
202
FRAME FRONT GEH-WB63T10093
...
203
BACK MAIN GEH-WB63T10147
...
204
DRAWER BODY ASM MECH GEH-WB55T10178
...
211
GUARD INSLN SDE GEH-WB02T10275
...
217
BACK COVER GEH-WB34T10012
...
219
COVER RECEPTACLE GEH-WB34T10011
...
221
PANEL SIDE (BK) GEH-WB63T10119
...
222
PANEL DRAWER GEH-WB56T10267
...
231
INSULATION OVN WRPR GEH-WB35T10209
...
232
INSULATION OVN BACK/BTTM GEH-WB35T10113
...
241
RACK OVEN GEH-WB48T10063
...
242
WEDGE DRAWER GEH-WB48T10068
...
251
UNIT ASM BAK GEH-WB44T10010
...
252
UNIT BROIL A GEH-WB44T10009
...
253
SENSOR ASM GEH-WB21T10007
...
254
TERMINAL BLOCK ASM GEH-WB17T10012
...
255
LATCH TRIM GEH-WB07X7175
...
256
RECEPTACLE PUSH-IN GEH-WB08T10026
...
257
40A15 GEH-WX12X1510
...
258
GASKET OVEN LIGHT GEH-WB02T10027
...
258
OVEN LIGHT CUP GEH-WB02T10037
...
259
OV LAMP LENS GEH-WB36X0389
...
260
LIGHT LENS BAIL GEH-WB02X7694
...
266
BASE RIVET ASM GEH-WB39T10007
...
268
BRACKET ANTI-TIP ASM GEH-WB02T10415
...
269
MOUNT TERMINAL BLOCK GEH-WB17T10021
...
272
SIDE PANEL SUPPORT GEH-WB02T10034
...
277
HINGE RECEIVER GEH-WB10T10068
...
282
VENT TUBE GEH-WB38T10006
...
292
SUPPORT REAR GEH-WB48T10030
...
293
DRAWER SUPPORT FRT GEH-WB48T10013
...
296
LEG LEVELER GEH-WB02X10521
...
752
SCREW GEH-WB01K5200
...
755
SCREW GEH-WZ04X0044
...
761
SCREW (CR) GEH-WB01X5364
...
801
SCREW GEH-WB01M0001
...
806
SCR 8-18 AB IHW 5/8 S GEH-WH02X1186
...
809
SCREW GEH-WB01X1137
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
935
WASHER ALUM SHAPED GEH-WB01T10112
...
1002
SCREW 8-18 AB IHW 3/8 S GEH-WB01T10017
...
1004
SCR 8-15 A HXW 7/8 S GEH-WH02X0941
...
1005
SCREW 10-32 TR T GEH-WB01T10008

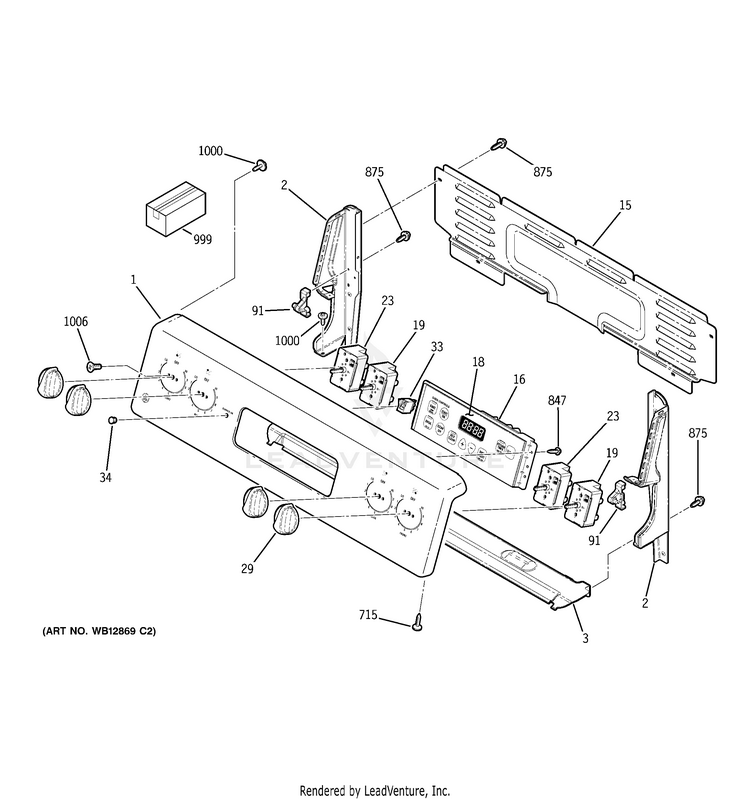

CONTROL PANEL

...
...
1
TRIM & BRACKET ASM GEH-WB36T11054
...
1
LABEL WIRE DIAGRAM GEH-229C5727P001
...
2
PLATE END RT (BK) GEH-WB36T11039
...
2
PLATE END LT (BK) GEH-WB36T11040
...
3
SHIELD HEAT BKGD GEH-WB02T10391
...
15
COVER CONTROL GEH-WB02T10499
...
16
CONTROL OVEN T09 GEH-WB27T10817
...
18
FACEPLATE GRAPHICS (BK) GEH-WB27T11013
...
19
INF SW CONTROL (2500W) GEH-WB24T10025
...
23
CONTROL INFINITE SWITCH GEH-WB24T10029
...
29
KNOB INFINITE (BK) GEH-WB03T10281
...
33
LIGHT INDICATOR PILOT GEH-WB27T10626
...
34
LENS GEH-WB25T10041
...
91
PIN RANGETOP HINGE GEH-WB10T10125
...
715
SCREW 8-18 X 5/16 BK GEH-WD02X0432
...
847
SCR 6-20 GXB IHXW 3/8 NI GEH-WB02T10324
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
999
PM MANUAL MINI & WD ASM GEH-31-14544
...
999
INSTRUCTION INSTALL GEH-31-10617
...
1000
SCREW 8-18 AB HXW 5/8 S GEH-WB01T10016
...
1006
SCREW 8-32 TPT FLR 215 S GEH-WB01T10020

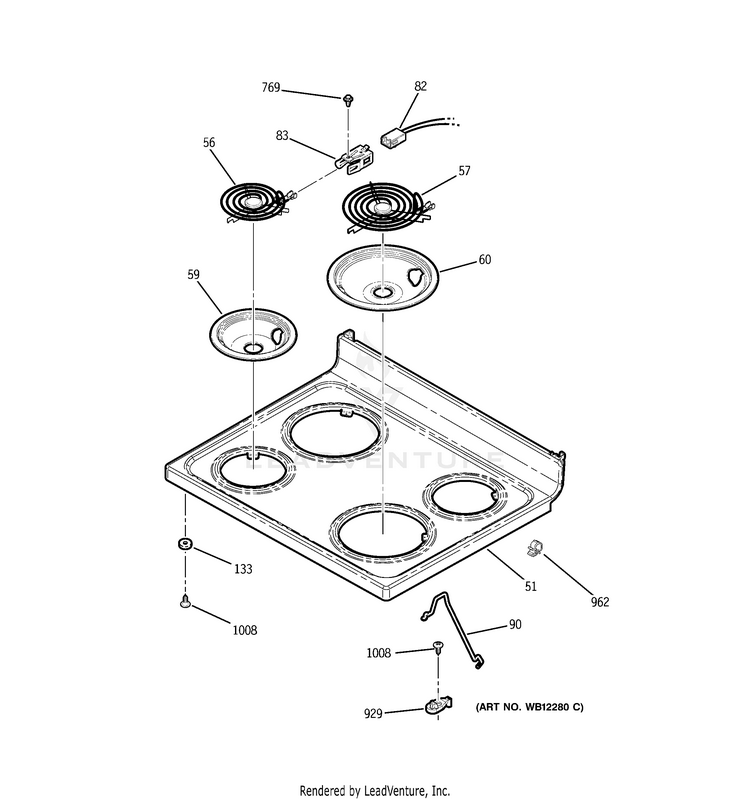

COOKTOP

...
...
51
RANGETOP MECH ASM GEH-WB62T10613
...
56
SURFACE UNIT ASM 6 GEH-WB30T10111
...
57
SURFACE UNIT ASM 8 GEH-WB30T10110
...
59
6 INCH CHROME BURNER BOW GEH-WB31T10010
...
60
8 INCH CHROME BURNER BOW GEH-WB31T10011
...
82
KIT SURF TERM BLOCK GEH-WB17T10006
...
83
CLIP RECEPTACLE GEH-WB17T10009
...
90
ROD SUPPORT GEH-WB02T10025
...
133
BUMPER RANGETOP GEH-WB01T10021
...
769
SCR 8-18 B HXW 1/4 S GEH-WB01X0500
...
929
MAINTOP STRIKE GEH-WB02T10026
...
962
CLIP WIRE GEH-WB02X8115
...
1008
SCR 8-18 BA POR 3/4 SN GEH-WB01X5904

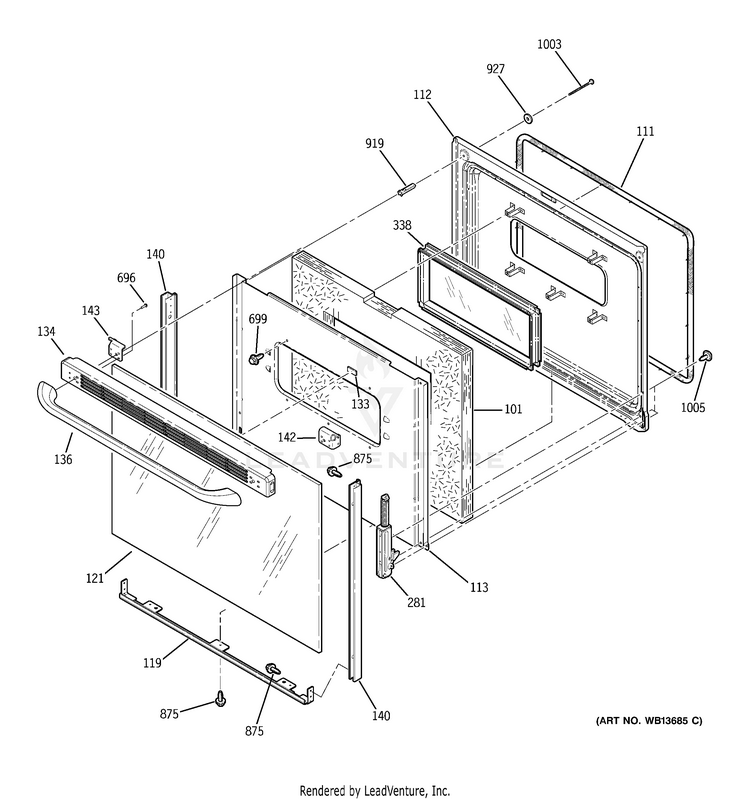

DOOR

...
...
101
INSULATION DOOR GEH-WB35T10085
...
111
GASKET OVN GEH-WB04T10022
...
112
LINER OVEN DR ASM GEH-WB55T10157
...
113
RETAINER INSLN GEH-WB56T10018
...
119
TRIM DR BTM CHNL GEH-WB07T10477
...
121
GLASS OVN DR (BK) GEH-WB56T10279
...
133
BUMPER RANGETOP GEH-WB01T10021
...
134
TRIM VENT DOOR GEH-WB07T10480
...
136
HANDLE (BK) GEH-WB15T10183
...
140
FRAME DOOR SIDE (BK) GEH-WB56T10287
...
142
BRACKET OVN HDL VNT TRM GEH-WB02T10418
...
143
BRACKET OVN HDL VNT TRM GEH-WB02T10419
...
281
HINGE DOOR GEH-WB10T10070
...
338
FRAME WINDOW PACK ASSY GEH-WB55T10065
...
696
SCREW 6-32X3/5" 1/4 HEX GEH-WB01K5186
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
919
SPACER GEH-WB02T10175
...
927
CONTOURED WASHER GEH-WB01X0119
...
1003
SCREW 8-18 AB TRT 7/16 S GEH-WB01T10019
...
1005
SCREW 10-32 TR T GEH-WB01T10008

DOOR LOCK

...
...
150
LATCH & HANDLE ASM GEH-WB14T10053

GE JBP23DN1BB

...
...
1
Trim Bracket GEH-WB36T11054
...
2
End Plate GEH-WB36T11039
...
2
End Plate GEH-WB36T11040
...
3
Heat Shield GEH-WB02T10391
...
15
Control Cover GEH-WB02T10499
...
16
Range Oven Control Board GEH-WB27T11312
...
18
Range Control Panel Overlay GEH-WB27T11013
...
19
Range Surface Element Control Switch, 2,600-Watt GEH-WB24T10025
...
23
Range Surface Element Control Switch, 1,500-Watt GEH-WB24T10029
...
29
Range Surface Burner Knob GEH-WB03T10281
...
33
Range Indicator Light GEH-WB27T10626
...
34
Range Indicator Light Lens (Red) GEH-WB25T10041
...
91
Range Pin GEH-WB10T10125
...
715
Screw GEH-WD2X432
...
847
Scr 6-20 Gxb GEH-WB02T10324
...
875
Dryer Screw GEH-WH2X930
...
999
Door Oven GEH-31-10617
...
1000
Range Screw, 8-18 X 5/8-In GEH-WB01T10016
...
1006
Scr 8-32 Tt GEH-WB01X23501

GE JBP23DN1BB

...
...
51
Range Main Top (Black) GEH-WB62T10613
...
56
Range Surface Element GEH-WB30X24401
...
57
Range Surface Element GEH-WB30X24400
...
59
Range Drip Pan GEH-WB31T10010
...
60
Range Drip Pan GEH-WB31T10011
...
82
Range Surface Element Receptacle GEH-WB17T10006
...
83
Range Surface Element Receptacle Support GEH-WB17T10009
...
90
Range Main Top Support GEH-WB02T10025
...
133
Range Bumper GEH-WB01T10021
...
769
Appliance Screw, #8-18 X 1/4-In, 12-Pack GEH-WB1X500D
...
929
Main Top Strip GEH-WB02T10026
...
962
Wire Clip GEH-WB2X8115
...
1008
Range Screw GEH-WB1X5904

GE JBP23DN1BB

...
...
150
Range Oven Door Lock Assembly GEH-WB14T10053

GE JBP23DN1BB

...
...
61
Burner Box GEH-WB64T10016
...
175
Latch Cover GEH-WB02T10021
...
201
Oven Weld Body GEH-WB63X20942
...
202
Frame GEH-WB63T10093
...
203
Main GEH-WB63T10147
...
204
Range Storage Drawer Assembly GEH-WB55T10178
...
211
Guard Insulation GEH-WB02T10275
...
217
Range Control Panel Back Shield GEH-WB02T10532
...
219
Cover Receptacle GEH-WB34T10011
...
221
Side Panel Bk GEH-WB56X28881
...
222
Drawer Panel GEH-WB56T10267
...
231
Range Oven Insulation GEH-WB35T10209
...
232
Oven Insulation GEH-WB35T10113
...
241
Range Oven Rack GEH-WB48T10063
...
242
Range Drawer Glide GEH-WB48T10068
...
251
Range Bake Element GEH-WB44T10010
...
252
Range Broil Element GEH-WB44T10009
...
253
Range Oven Temperature Sensor GEH-WB21X22134
...
254
Range Terminal Block GEH-WB17T10011
...
255
Latch Trim GEH-WB7X7175
...
256
Range Light Socket GEH-WB08T10026
...
257
Range Oven Light Bulb GEH-WX12X1510
...
258
Oven Door Gasket GEH-WB02T10027
...
258
Oven Light Cup GEH-WB02T10037
...
259
Range Oven Light Lens GEH-WB36X192
...
260
Bail GEH-WB2X7694
...
266
Base Rivet A GEH-WB39T10007
...
268
Range Anti-Tip Bracket GEH-WB02T10415
...
269
Mounting Terminal GEH-WB17T10021
...
272
Range Side Panel Support Bracket GEH-WB02T10034
...
277
Hinge Receiver GEH-WB10T10068
...
282
Vent Tube GEH-WB38T10006
...
292
Range Storage Drawer Support, Rear GEH-WB02X33180
...
293
Range Storage Drawer Support, Front GEH-WB48T10013
...
296
Range Leveling Leg GEH-WB02X10521
...
752
Screw GEH-340531
...
755
Range Screw, 12-Pack GEH-WZ4X44D
...
761
Range Screw GEH-WB1X5364
...
801
Range Screw GEH-WB1M1
...
806
Thermal Screw GEH-WH02X1186
...
809
Range Screw GEH-WB1X1137
...
875
Dryer Screw GEH-WH2X930
...
935
Aluminum Washer GEH-WB01T10112
...
1002
Screw, #8-18 GEH-WB01T10017
...
1004
Screw, 2-Pack GEH-WH2X941D
...
1005
Cooking Appliance Screw, #10-32 GEH-WB01T10008

GE JBP23DN1BB

...
...
101
Insulation GEH-WB35T10085
...
111
Range Oven Door Gasket GEH-WB04T10022
...
112
Oven Liner GEH-WB55T10157
...
113
Retainer Insert GEH-WB56T10018
...
119
Black Bottom GEH-WB07X32930
...
121
Range Oven Door Outer Panel (Black) GEH-WB56T10279
...
133
Range Bumper GEH-WB01T10021
...
134
Door Vent Trim GEH-WB07X27233
...
136
Range Oven Door Handle (Black) GEH-WB15T10183
...
140
Oven Door Frame GEH-WB56T10287
...
142
Oven Bracket GEH-WB02T10418
...
143
Range Oven Door Handle Mounting Bracket, Left GEH-WB01X27696
...
281
Range Oven Door Hinge GEH-WB10T10070
...
338
Range Oven Door Inner Glass GEH-WB55T10065
...
696
Screw GEH-WB1K5186
...
699
Range Screw GEH-WB1M1
...
875
Dryer Screw GEH-WH2X930
...
919
Spacer GEH-WB02T10175
...
927
Range Washer, 12-Pack GEH-WB1X119D
...
1003
Screw, #8-18 GEH-WB01T10019
...
1005
Cooking Appliance Screw, #10-32 GEH-WB01T10008
