GE JB850DT1BB Electric Range

Model: JB850DT1BB

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

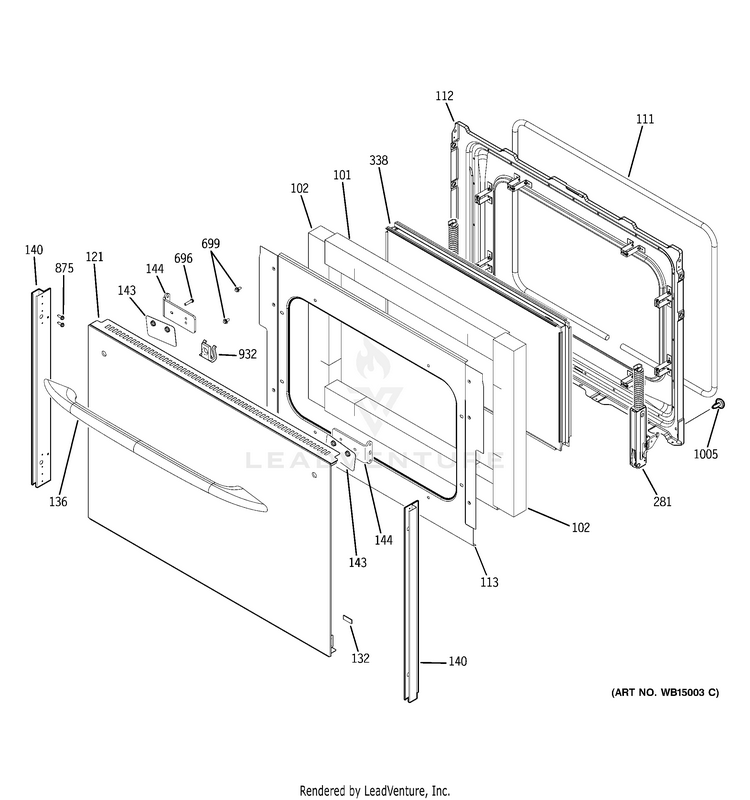

LOWER DOOR

...
...
101
INSULATION OVN DR TOP GEH-WB35T10072
...
102
INSULATION OVEN DR SDE GEH-WB35K10025
...
111
GASKET OVEN DOOR GEH-WB04T10050
...
112
LINER OVEN DR ASM GEH-WB55T10148
...
113
RETAINER INSLN OVN DR GEH-WB02T10371
...
121
PANEL ASM BONDED GEH-WB56T10297
...
132
DOOR PAD GEH-WB01T10026
...
136
HANDLE (BK) GEH-WB15T10183
...
136
HANDLE (BK) GEH-WB15T10187
...
140
FRAME DOOR SIDE GEH-WB56T10312
...
143
SPACER BRACKET HANDLE GEH-WB02T10496
...
144
BRACKET HANDLE GEH-WB02T10349
...
281
HINGE DOOR RT GEH-WB10T10106
...
281
HINGE DOOR LT GEH-WB10T10107
...
338
PACK WINDOW ASM GEH-WB55T10160
...
696
SCREW GEH-WB01K5156
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
875
SCR 8-15 A HXW 7/8 S GEH-WH02X0941
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
932
CLIP SPACER DOOR GEH-WB02T10497
...
1005
SCREW 10-32 TR T GEH-WB01T10008
