GE JB850DT1BB Electric Range

Model: JB850DT1BB

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

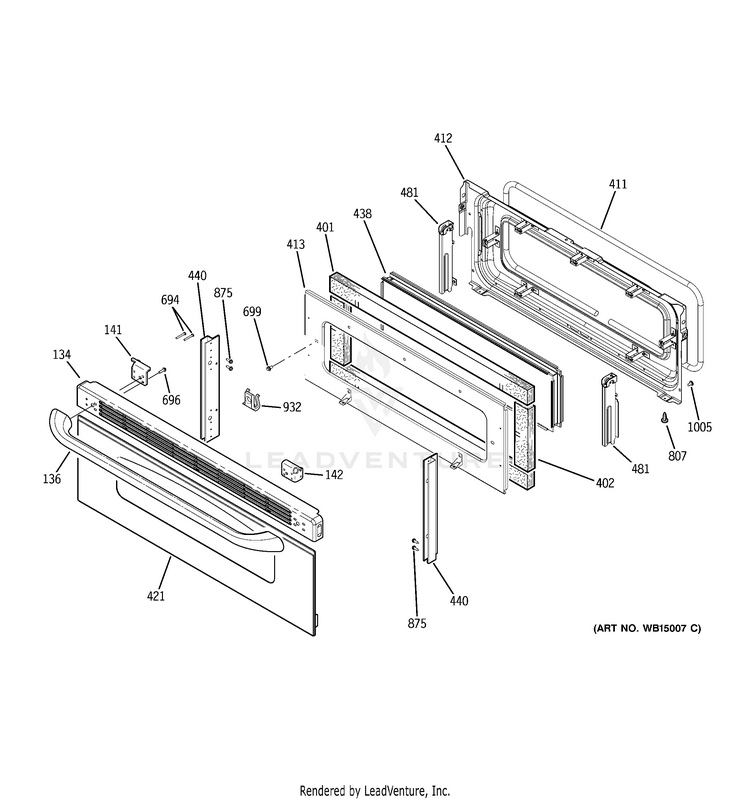

UPPER DOOR

...
...
134
TRIM VENT DOOR GEH-WB07T10480
...
136
HANDLE (BK) GEH-WB15T10187
...
136
HANDLE (BK) GEH-WB15T10183
...
141
BRACKET OVN HDL VNT TRM GEH-WB02T10419
...
142
BRACKET OVN HDL VNT TRM GEH-WB02T10418
...
401
INSULATION OVN DR TOP UP GEH-WB35T10167
...
402
INSULATION OV DR UPRSIDE GEH-WB35T10168
...
411
GASKET OVEN DOOR GEH-WB04T10073
...
412
LINING OVEN DOOR ASM GEH-WB55T10186
...
413
RETAINER INSLN OVEN DR GEH-WB56T10318
...
421
PANEL DOOR ASM (UPR) GEH-WB56T10296
...
438
WINDOW PACK ASM UPR GEH-WB56T10244
...
440
FRAME DOOR SIDE GEH-WB56T10313
...
481
HINGE ASM (LT) GEH-WB10T10105
...
481
HINGE ASM (RT) GEH-WB10T10104
...
694
SCREW 10-16 X 1.000 HWH GEH-WB01T10066
...
694
SCREW GEH-WB01K5157
...
696
SCREW GEH-WB01K5156
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
807
SCR 8 - 32 X .343 TRS S GEH-WB01T10084
...
875
SCR 8-15 A HXW 7/8 S GEH-WH02X0941
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
932
CLIP SPACER DOOR GEH-WB02T10497
...
1005
SCREW 10-32 TR T GEH-WB01T10008
