GE JB850DT1BB Electric Range

Model: JB850DT1BB

Back To Assemblies

Save Part Not Listed?
product name

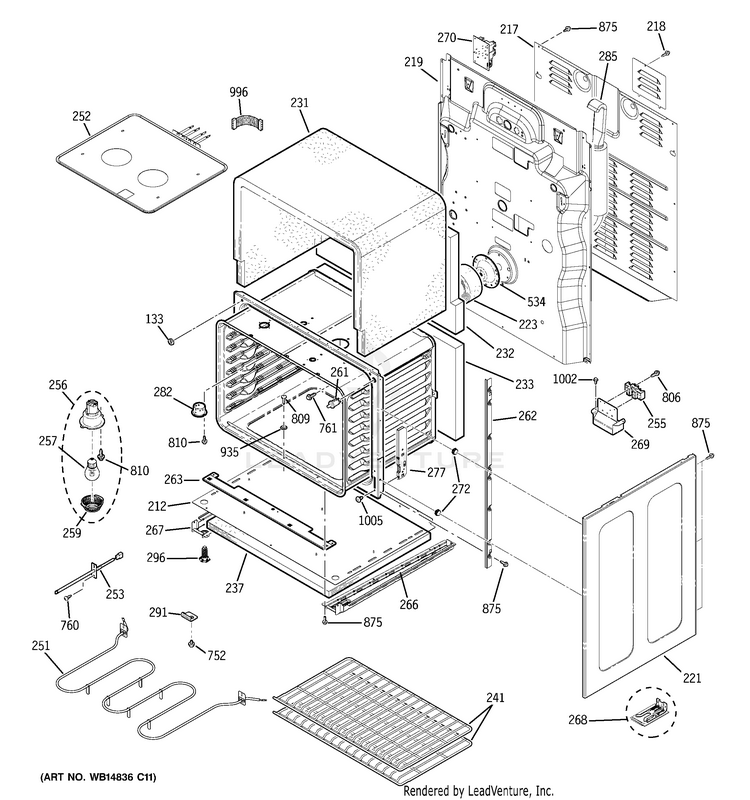

LOWER OVEN

...
...
133
DOOR BUMPER GEH-WB01T10022
...
212
BASE DUAL CAVITY GEH-WB39T10015
...
217
COVER WIRE MAIN GEH-WB02T10570
...
218
COVER TERMINAL BLOCK GEH-WB02T10564
...
219
MAINBACK ASM GEH-WB02T10507
...
221
PANEL SIDE (BK) GEH-WB63T10119
...
223
INSULATION BACK GEH-WB35T10223
...
231
INSULATION WRAPPER GEH-WB35T10170
...
232
INSULATION BACK GEH-WB35T10231
...
233
INSULATION BACK GEH-WB35T10230
...
233
INSULATION BACK GEH-WB35T10232
...
237
HIDDEN BAKE INSULATION GEH-WB35T10022
...
241
RACK OVEN GEH-WB48T10076
...
251
UNIT BAKE ASM (LWR) GEH-WB44T10103
...
252
SHIELD BROIL ASM GEH-WB44T10107
...
253
SENSOR ASM GEH-WB21T10007
...
255
TERMINAL BLOCK ASM GEH-WB17T10012
...
256
OVEN LAMP HOLDER ASM GEH-WB08T10002
...
257
LAMP APPLIANCE GEH-WB08T10022
...
259
OVEN BULB LENS GEH-WB25T10002
...
261
SWITCH SPDT HIGH AMP GEH-WB24T10160
...
262
TRIM VERTICAL SIDES GEH-WB07T10621
...
263
COVER FRONT GEH-WB02T10370
...
266
BASE RAIL GEH-WB02T10353
...
267
BASE RAIL GEH-WB02T10352
...
268
BRACKET ANTI-TIP ASM GEH-WB02T10415
...
269
BRACKET STRAIN RELIEF GEH-WB02T10492
...
270
BOARD RELAY DAUGHTER ASM GEH-WB27T11330
...
272
SIDE PANEL SUPPORT GEH-WB02T10034
...
277
RECEIVER HINGE GEH-WB10T10083
...
282
VENT TUBE ASSY GEH-WB38T10012
...
285
TUBE VNT ASM LWR GEH-WB38T10034
...
291
COVER GEH-WB02X9152
...
296
LEG LEVELER GEH-WB02X10521
...
534
SUPPORT OVN CAV GEH-WB02T10249
...
752
SCREW GEH-WB01K5200
...
760
SCREW GEH-WB01K5028
...
761
SCREW (CR) GEH-WB01X5364
...
806
SCR 8-18 AB IHW 5/8 S GEH-WH02X1186
...
809
SCR 8-18 AB HXW 3/4 GEH-WZ04X0416
...
810
SCREW GEH-WB01X1253
...
875
SCR 8-15 A HXW 7/8 S GEH-WH02X0941
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
935
WASHER GEH-WB01K5174
...
996
HARNESS WIRE INFINITE GEH-WB18T10518
...
996
HARNESS WIRE BAKE GEH-WB18T10457
...
1002
SCREW GEH-WB01M0001
...
1005
SCREW 10-32 TR T GEH-WB01T10008
