GE JB850DT1BB Electric Range

Model: JB850DT1BB

Back To Assemblies

Save Part Not Listed?
product name

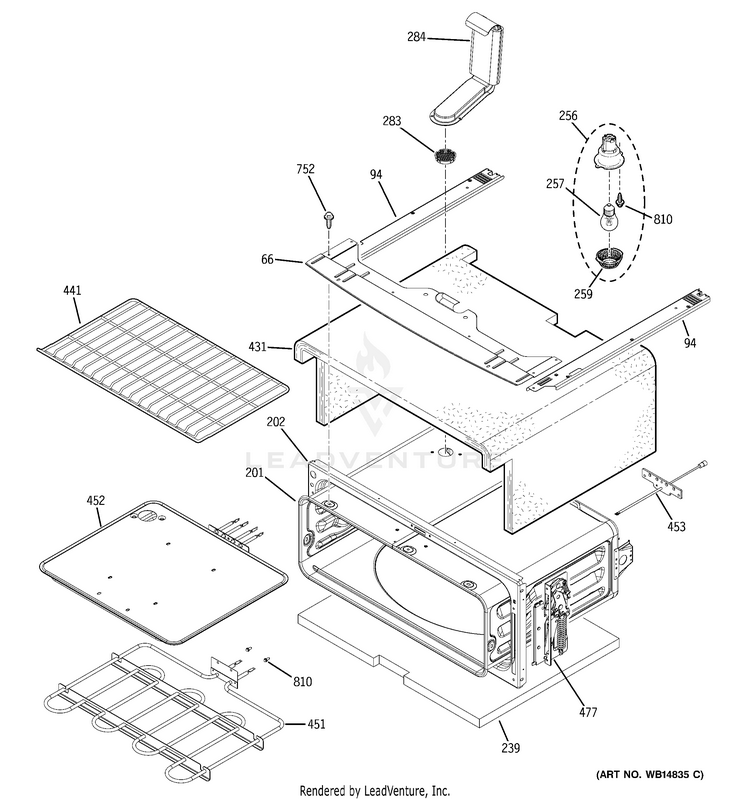

UPPER OVEN

...
...
66
ENCLOSURE RANGETOP GEH-WB34T10125
...
94
BRACE CHASSIS RADIANT LT GEH-WB02T10462
...
94
BRACE CHASSIS RADIANT RT GEH-WB02T10463
...
201
WRAPPER OVN CAV ASM GEH-WB63T10148
...
202
FRAME FRONT GEH-WB63T10157
...
239
INSULATION MIDDLE GEH-WB35T10235
...
256
OVEN LAMP HOLDER ASM GEH-WB08T10002
...
257
LAMP APPLIANCE GEH-WB08T10022
...
259
OVEN BULB LENS GEH-WB25T10002
...
283
ELIMINATOR SMOKE GEH-WB38T10033
...
284
TUBE VENT ASM GEH-WB38T10035
...
431
INSULATION WRAPPER UPR GEH-WB35T10236
...
441
RACK OVEN GEH-WB48T10072
...
451
ELEMENT BAKE ASM GEH-WB44T10085
...
452
SHIELD BROIL ASM GEH-WB44T10108
...
453
SENSOR ASM GEH-WB23T10015
...
477
RECEIVER HINGE UPR ( LT) GEH-WB10T10101
...
477
RECEIVER HINGE UPR (RT) GEH-WB10T10100
...
752
SCREW GEH-WB01K5200
...
810
SCREW GEH-WB01X1253
