GE JB850DT1BB Electric Range

Model: JB850DT1BB

Back To Assemblies

Save Part Not Listed?
product name

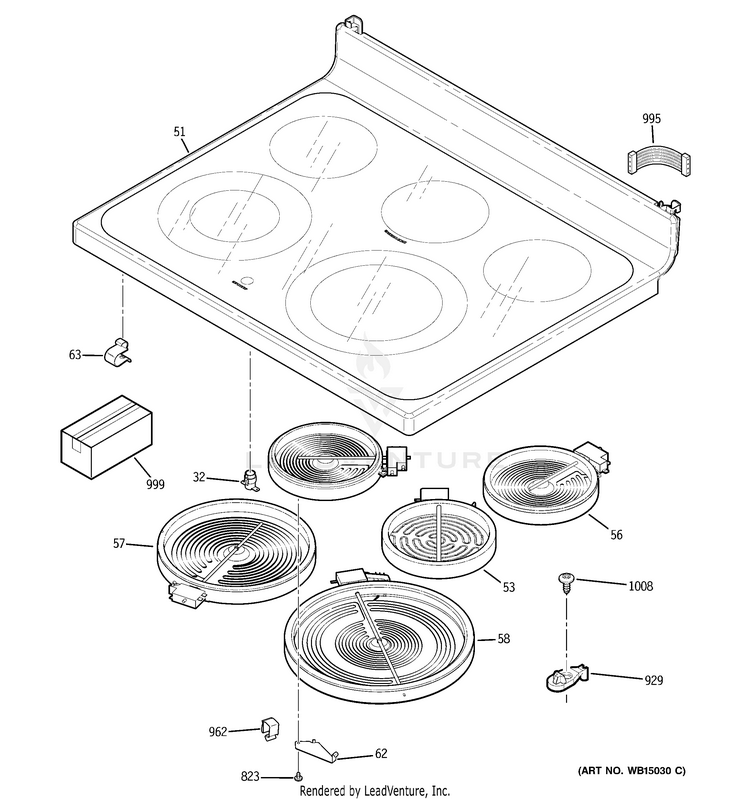

COOKTOP

...
...
32
LIGHT INDICATOR GEH-WB27T10668
...
51
RANGETOP GLASS ASM GEH-WB62T10795
...
53
ELEMENT RADIANT 6 WARMER GEH-WB30T10124
...
56
ELEMENT RADIANT 6 IN GEH-WB30T10129
...
57
ELEMENT RADIANT 9 DUAL GEH-WB30T10133
...
58
ELEMENT HALIANT 12 TRPL GEH-WB30T10126
...
62
BRACKET RADIANT ELEMENT GEH-WB02T10464
...
63
SPRING RADIANT ELEMENT GEH-WB09T10013
...
823
SCREW GROUND GEH-WB01X1261
...
929
MAINTOP STRIKE GEH-WB02T10026
...
962
CLIP CABLE GEH-WB02T10177
...
995
HARNESS WIRE MAINTOP GEH-WB18T10496
...
995
LEAD WIRE 14 GA GN GEH-WB18T10470
...
995
LEAD WIRE 18 GA Y GEH-WB18T10466
...
995
LEAD WIRE 18GA Y GEH-WB18T10467
...
999
INSTRUCTION INSTALL GEH-31-10661
...
999
PM OWNERS MANUAL GEH-49-80633
...
999
PM MANUAL MINI & WD ASM GEH-31-14998
...
999
GLASS CLEANER GEH-WB64X0093
...
1008
SCR 8-18 BA POR 3/4 SN GEH-WB01X5904
