GE JB850DT1BB Electric Range

Model: JB850DT1BB

Back To Assemblies

Save Part Not Listed?

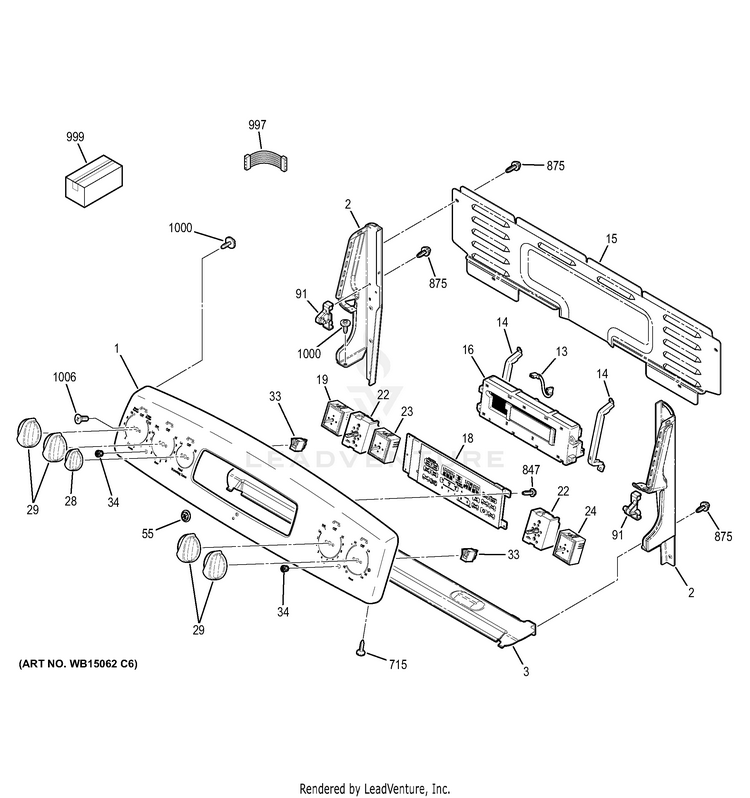

product name

CONTROL PANEL

...
...
1
LABEL WIRE DIAGRAM GEH-229C6101P001
...
1
TRIM & BRACKET ASM GEH-WB36T11344
...
2
PLATE END RT (BK) GEH-WB36T11039
...
2
PLATE END LT (BK) GEH-WB36T11040
...
3
SHIELD HEAT BKGD GEH-WB02T10525
...
13
JUMPER GEH-WB18T10499
...
14
BRACKET CONTROL GEH-WB37T10010
...
15
COVER CONTROL GEH-WB02T10532
...
16
CONTROL BOARD T012 ELE GEH-WB27T11374
...
18
FACEPLATE GRAPHICS GEH-WB27T11386
...
19
SWITCH INFINITE CONTROL GEH-WB24T10153
...
22
CONTROL SURF ELEM GEH-WB24T10145
...
23
SWITCH INFINITE CONTROL GEH-WB24T10058
...
24
SWITCH INFINITE CONTROL GEH-WB24T10162
...
28
KNOB INFINITE (BK) GEH-WB03T10311
...
29
KNOB INFINITE (BK) GEH-WB03T10281
...
33
LIGHT INDICATOR PILOT GEH-WB27T10626
...
34
LENS GEH-WB25T10041
...
55
BADGE GE GEH-WB02T10359
...
91
PIN RANGETOP HINGE GEH-WB10T10125
...
715
SCREW 8-18 X 5/16 BK GEH-WD02X0432
...
847
WZ4X245D GEH-WB01T10046
...
875
SCR 8-15 A HXW 7/8 S GEH-WH02X0941
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
997
HARNESS WIRE UI COM GEH-WB18T10483
...
999
GLASS CLEANER GEH-WB64X0093
...
999
PM MANUAL MINI & WD ASM GEH-31-14998
...
999
INSTRUCTION INSTALL GEH-31-10661
...
999
PM OWNERS MANUAL GEH-49-80633
...
1000
SCR 8-18 B HXW 1/4 S GEH-WB01X0500
...
1006
SCREW 8-32 TPT FLR 215 S GEH-WB01T10020
