GE JB750EF3ES Electric Range

Model: JB750EF3ES

Save Part Not Listed?
product name

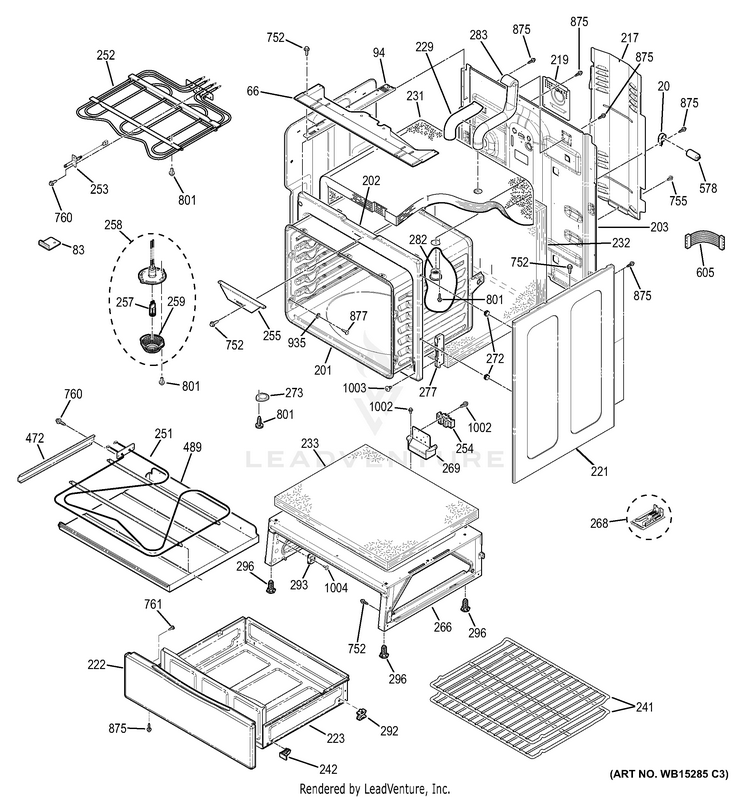

BODY PARTS

...
...
20
BRACKET CAPACITOR GEH-WB02T10194
...
66
ENCLOSURE RANGETOP GEH-WB34T10125
...
83
CLIP SEAM OVEN BODY GEH-WB02T10118
...
94
BRACE CHASSIS RADIANT RT GEH-WB02T10463
...
94
BRACE CHASSIS RADIANT LT GEH-WB02T10462
...
201
BODY OVN WELD ASM (BK) GEH-WB63X20923
...
202
FRAME FRONT 5.0 GEH-WB63X20870
...
203
BACK MAIN GEH-WB63T10176
...
217
COVER BACK GEH-WB34T10128
...
219
COVER RECEPTACLE GEH-WB34T10011
...
221
PANEL SIDE (DG) GEH-WB63T10166
...
222
PANEL DRAWER (TZ) GEH-WB56X20111
...
223
DRAWER BODY ASM MECH GEH-WB55T10178
...
229
VENT TUBE INSULATION GEH-WB35T10017
...
231
INSULATION OVN WRPR GEH-WB35X21443
...
232
INSULATION OVN BCK & BTM GEH-WB35X21424
...
233
INSULATION HIDDEN BAKE GEH-WB35T10254
...
241
RACK OVEN (SC) GEH-WB48T10082
...
242
WEDGE DRAWER GEH-WB48T10068
...
251
UNIT ASM GEH-WB44T10104
...
252
SHIELD BROIL ASM GEH-WB44X20882
...
253
SENSOR ASM GEH-WB21X22134
...
254
TERMINAL BLOCK ASM GEH-WB17T10011
...
255
TRIM LATCH GEH-WB07X21459
...
257
LAMP HALOGEN G9 GEH-WB08T10045
...
258
LAMP HALOGEN ASM GEH-WB25T10097
...
259
OV LAMP LENS GEH-WB25T10013
...
266
BASE RIVET ASM GEH-WB39T10007
...
268
BRACKET ANTI-TIP ASM GEH-WB02T10578
...
269
MOUNT TERMINAL BLOCK GEH-WB17T10021
...
272
SIDE PANEL SUPPORT GEH-WB02T10034
...
273
COVER GEH-WB02K5365
...
277
HINGE RECEIVER GEH-WB10T10068
...
282
VENT TUBE ASSY GEH-WB38T10012
...
283
TUBE VNT RADIANT GEH-WB28T10217
...
292
SUPPORT REAR GEH-WB48T10030
...
293
DRAWER SUPPORT FRT GEH-WB48T10013
...
296
LEG LEVELER GEH-WB02X10521
...
472
SIDE REFLECTOR GEH-WB49T10007
...
489
REFLECTOR PANE BAKE ELEM GEH-WB02T10509
...
578
CAPACITOR MOTOR GEH-WB27T10662
...
605
HARNESS WIRE HB GEH-WB18X21460
...
752
SCREW GEH-WB01K5200
...
755
SCREW GROUND GEH-WB01X1261
...
760
SCREW GEH-WB01K5028
...
761
SCREW MTG GEH-WB1X5364
...
801
SCREW GEH-WB01M0001
...
875
WZ4X245D GEH-WB01T10046
...
877
SCR 10-16 AB TRT20 1/2 N GEH-WB01X21735
...
935
WASHER SPRING GEH-WB01X1256
...
1002
SCREW 8-18 AB IHW 3/8 S GEH-WB01T10017
...
1003
SCREW 10-32 TR T GEH-WB01T10008
...
1004
SCR 8-15 A HXW 7/8 S GEH-WH02X0941

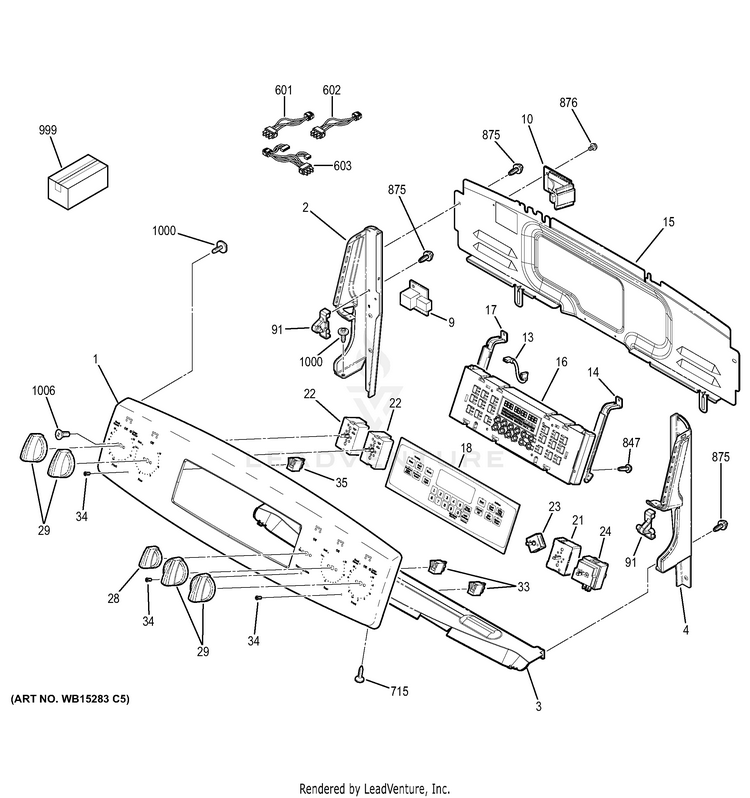

CONTROL PANEL

...
...
1
LABEL WIRE DIAGRAM GEH-229C6303P001
...
1
TRIM CNTRL ASM GEH-WB07X24068
...
2
PLATE END LT (GY) GEH-WB07X20042
...
3
SHIELD HEAT BKGD GEH-WB02T10468
...
4
PLATE END RT (GY) GEH-WB07X20043
...
9
BOARD RJ45 CONNECTOR GEH-WB27X21461
...
10
HOUSING RJ45 ASM GEH-WB27X20933
...
13
JUMPER GEH-WB18T10506
...
14
BRACKET CONTROL RT GEH-WB34X20004
...
15
COVER CONTROL (P008) GEH-WB34X20934
...
16
CONTROL BOARD T012 ELE GEH-WB27X21621
...
17
BRACKET CONTROL LT GEH-WB34X20003
...
18
FACEPLATE GRAPHICS (DG) GEH-WB27X20097
...
21
CONTROL INFINITE SWITCH GEH-WB24T10029
...
22
CONTROL SURF ELEM GEH-WB24T10146
...
23
SWITCH ROTARY GEH-WB24X21736
...
24
SWITCH INFINITE CONTROL GEH-WB24T10162
...
28
KNOB ASM GEH-WB03T10336
...
29
KNOB ASM GEH-WB03T10337
...
33
LIGHT INDICATOR PILOT GEH-WB27T10627
...
34
LENS GEH-WB25X24023
...
35
LIGHT INDICATOR PILOT GEH-WB25X20005
...
91
PIN RANGETOP HINGE GEH-WB10T10116
...
601
HARNESS WIRE INF GEH-WB18X20123
...
602
HARNESS WIRE CAT MODULE GEH-WB18X20006
...
603
HARNESS WIRE INFINITE GEH-WB18X20029
...
715
SCREW 8-18 5/16 PH GEH-WD02X0430
...
847
SCR 6-20 GXB IHXW 3/8 NI GEH-WB02T10324
...
875
WZ4X245D GEH-WB01T10046
...
876
SCR 8-18 B HXW 1/4 S GEH-WB01X0500
...
999
INSTRUCTION INSTALL GEH-31-10617
...
999
MANUAL U&C TIP SHEET GEH-49-80597
...
999
PM INSTRUCTIONS INSTALL GEH-31-10816
...
999
PM MANUAL MINI & WD ASM GEH-31-17046
...
999
PM INSTALL INSTRUCTIONS GEH-31-10781
...
999
PM OWNERS MANUAL GEH-49-80690
...
1000
SCR 8-18 AB HXW 1/2 S GEH-WB01T10126
...
1006
SCR 8-32 TT FLP .270 GEH-WB01X23501

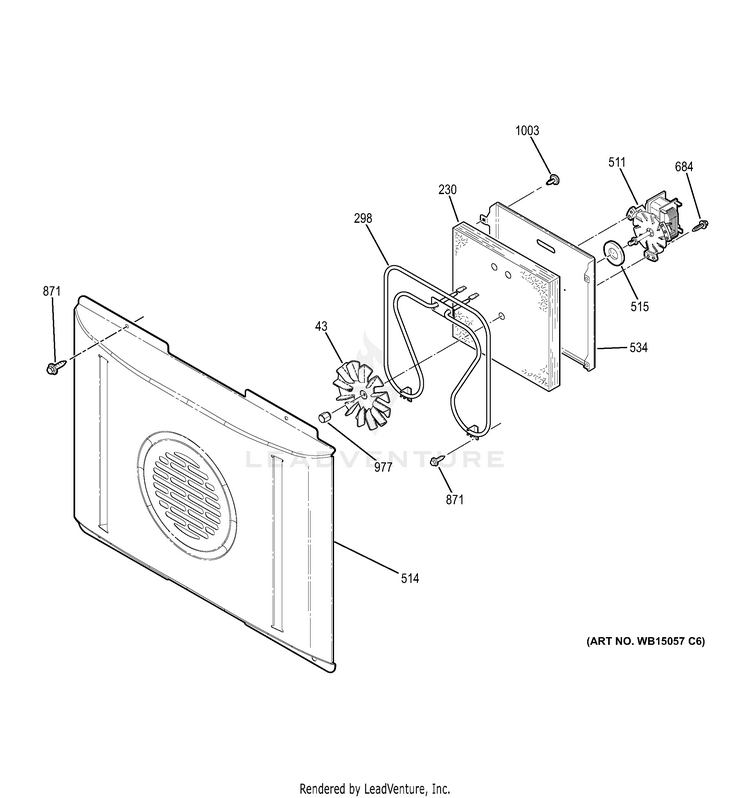

CONVECTION FAN

...
...
43
HUB BLADE ASM GEH-WB02T10289
...
230
INSULATION CONV GEH-WB35X22483
...
298
ELEMENT CONVX ASM GEH-WB44T10086
...
511
MOTOR PSC CONV GEH-WB26T10037
...
514
COVER FAN CONVX (BK) GEH-WB34X20082
...
515
GASKET CONV FAN GEH-WB04T10071
...
534
BRACKET CONV FAN GEH-WB02T10471
...
684
SCREW 8-32 X 625 M HXW S GEH-WB01T10047
...
871
SCREW GEH-WB01M10002
...
977
NUT GEH-WB02T10017
...
1003
SCREW 10-32 TR T GEH-WB01T10008

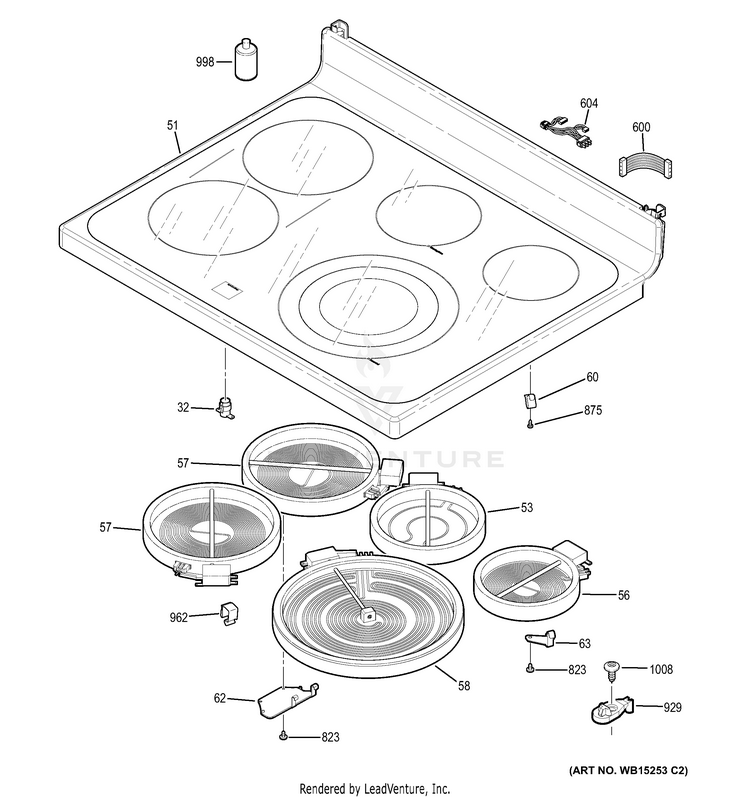

COOKTOP

...
...
32
LIGHT INDICATOR GEH-WB27T10668
...
51
RANGETOP GLASS ASM (DG) GEH-WB62X22200
...
53
ELEMENT RADIANT 6 WARMER GEH-WB30X20871
...
56
ELEMENT RADIANT 5.5 IN GEH-WB30T10145
...
57
ELEMENT RADIANT 8 IN GEH-WB30T10132
...
58
ELEMENT HALIANT 12 TRPL GEH-WB30T10155
...
60
SPRING RADIANT ELEMENT GEH-WB09T10013
...
62
BRACKET RADIANT ELEMENT GEH-WB02T10574
...
63
BRACKET RADIANT ELEMENT GEH-WB02X20902
...
600
HARNESS WIRE MAINTOP GEH-WB18X20032
...
604
LEAD WIRE 14 GA GN GEH-WB18T10470
...
823
SCR 10-16 AB IHW .625 NI GEH-WB01T10072
...
875
WZ4X245D GEH-WB01T10046
...
929
MAINTOP STRIKE GEH-WB02T10026
...
962
CLIP CABLE GEH-WB02T10177
...
998
GLASS CLEANER GEH-WB64X0093
...
1008
SCR 8-18 BA POR 3/4 SN GEH-WB01X5904

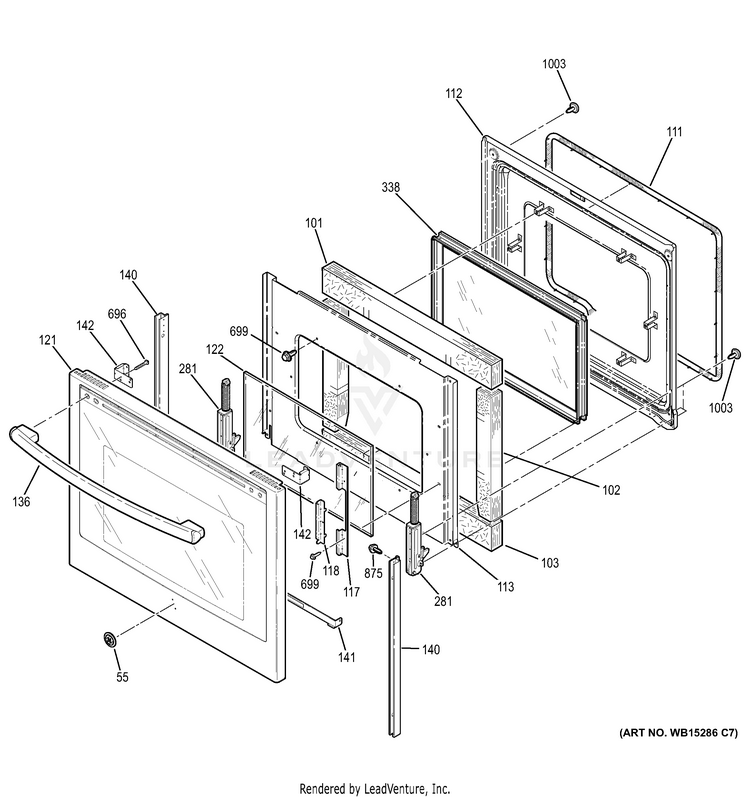

DOOR

...
...
55
BADGE GE GEH-WB02T10589
...
101
INSULATION DOOR GEH-WB35T10077
...
102
INSULATION DOOR GEH-WB35T10114
...
103
INSULATION DOOR GEH-WB35T10255
...
111
GASKET OVEN GEH-WB04T10086
...
112
LINER OVEN DOOR ASM (BK) GEH-WB55T10203
...
113
RETAINER OVN DR INSLN GEH-WB56T10178
...
117
RETAINER GLASS OVN DR GEH-WB56T10320
...
118
RETAINER GLASS OVN DR GEH-WB56T10321
...
121
PANEL ASM BONDED HE (TZ) GEH-WB56X20112
...
122
OVEN DOOR GLASS-INNER GEH-WB57K5230
...
136
HANDLE AND END CAP ASM GEH-WB15T10222
...
140
FRAME DOOR SIDE (BK) GEH-WB56T10287
...
141
GLASS BRACKET GEH-WB02X21494
...
142
BRACKET OFFSET HDL (HE) GEH-WB02T10611
...
281
HINGE DOOR GEH-WB10T10067
...
338
WINDOW PACK ASM GEH-WB56X22160
...
696
SCR 10-16 AB HXW .532 GEH-WB01T10103
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
875
WZ4X245D GEH-WB01T10046
...
1003
SCREW 10-32 TR T GEH-WB01T10008

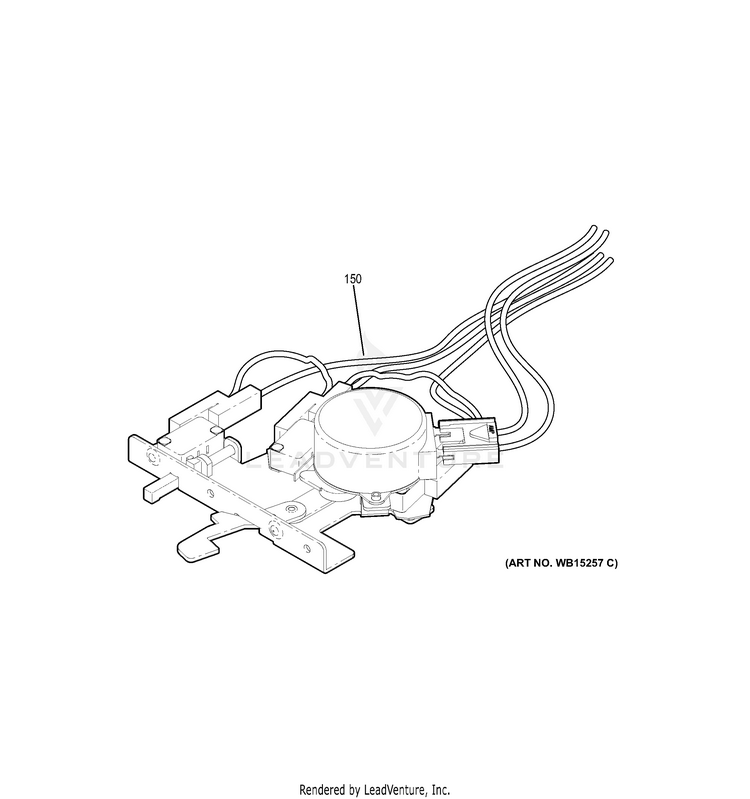

DOOR LOCK

...
...
150
LATCH OVEN GEH-WB10X23272
