GE JB700SJ3SS Electric Range

Model: JB700SJ3SS

Save Part Not Listed?
product name

BODY PARTS

...
...
66
RANGETOP ENCLOSURE GEH-WB34X26630
...
68
PLATE COVER (BK) GEH-WB02X21423
...
83
CLIP SEAM OVEN BODY GEH-WB02T10118
...
94
BRACE CHASSIS RADIANT LT GEH-WB34X26004
...
94
BRACE CHASSIS RADIANT RT GEH-WB02T10463
...
201
BODY OVN WELD ASM (BK) GEH-WB63X20923
...
202
FRAME FRONT 5.0 (BK) GEH-WB63X20115
...
203
BACK MAIN GEH-WB63T10176
...
204
DRAWER BODY ASM MECH GEH-WB55T10178
...
217
COVER BACK GEH-WB34T10128
...
219
COVER RECEPTACLE GEH-WB34T10011
...
221
SIDE PANEL DG GEH-WB63X28679
...
222
OVERLAY AND PANEL ASM GEH-WB56X28576
...
229
VENT TUBE INSULATION GEH-WB35T10017
...
231
OVEN WRAPER INSULATION GEH-WB35X27496
...
232
INSULATION OVN BCK & BTM GEH-WB35X21424
...
233
INSULATION HIDDEN BAKE GEH-WB35T10254
...
241
RACK OVEN GEH-WB48T10063
...
242
DRAWER WEDGE GEH-WB02X28542
...
251
UNIT ASM GEH-WB44T10104
...
252
SHIELD BROIL ASM GEH-WB44X20882
...
253
SENSOR ASM GEH-WB21X22134
...
254
TERMINAL BLOCK ASM GEH-WB17T10011
...
255
LATCH TRIM GEH-WB07X7175
...
257
LAMP HALOGEN G9 GEH-WB08T10045
...
258
LAMP HALOGEN ASM GEH-WB25X24909
...
259
OV LAMP LENS GEH-WB25T10013
...
261
SWITCH SPDT HIGH AMP GEH-WB24T10147
...
264
TRIM FRT FRM (BK) GEH-WB07T10516
...
266
BASE RIVET ASM GEH-WB63X28540
...
268
BRACKET ANTI-TIP ASM GEH-WB02T10578
...
269
MOUNT TERMINAL BLOCK GEH-WB17T10021
...
272
SIDE PANEL SUPPORT GEH-WB02T10034
...
273
COVER GEH-WB02K5365
...
277
HINGE RECEIVER GEH-WB10T10068
...
282
VENT TUBE ASSY GEH-WB38T10012
...
283
TUBE VNT RADIANT GEH-WB28T10217
...
292
SUPPORT REAR GEH-WB48T10030
...
293
DRAWER SUPPORT FRT GEH-WB48T10013
...
296
LEG LEVELER GEH-WB02X10521
...
297
LEVELER AND BRACKET ASM GEH-WB02X30431
...
472
SIDE REFLECTOR GEH-WB49T10007
...
489
REFLECTOR PANE BAKE ELEM GEH-WB02T10509
...
752
SCREW GEH-WB01K5200
...
755
SCR 8-32 AB IHWS 3/8 S GEH-WR01X10602
...
761
SCREW MTG GEH-WB1X5364
...
801
SCREW GEH-WB01M10002
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
1002
SCREW 8-18 AB IHW 3/8 S GEH-WB01T10017
...
1004
SCR 8-15 A HXW 7/8 S GEH-WH02X0941
...
1005
SCREW 10-32 TR T GEH-WB01T10008

CONTROL PANEL

...
...
1
LABEL WIRE DIAGRAM GEH-229C6462P001
...
1
TRIM OVERLAY ASM SS GEH-WB07X28573
...
2
END PLATE LH DG GEH-WB07X29534
...
3
BACKGUARD SHIELD HEAT GEH-WB34X28565
...
4
END PLATE RH DG GEH-WB07X29535
...
15
COVER CONTROL GEH-WB34X24901
...
16
CONTROL OVEN TO9 (ELEC) GEH-WB27X26140
...
16
OVEN CONTROL TO9 WHITE LED GEH-WB27X29088
...
18
FACEPLATE GRAPHICS GEH-WB07X25885
...
22
CONTROL INFINITE SWITCH GEH-WB24T10029
...
23
SWITCH ROTARY GEH-WB24X25302
...
24
SWITCH INFINITE CONTROL GEH-WB24X25013
...
25
SWITCH ROCKER OVEN GEH-WB24X21444
...
29
KNOB INFINITE (CH) GEH-WB03X24965
...
33
LIGHT INDICATOR PILOT GEH-WB25X20005
...
34
LENS GEH-WB25T10103
...
91
PIN RANGETOP HINGE GEH-WB10T10116
...
600
HARNESS WIRE INFINITE GEH-WB18X25978
...
752
SCREW GEH-WB01K5200
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
999
PM MANUAL MINI & WD ASM GEH-31-17192
...
999
INSTRUCTION INSTALL GEH-31-10617
...
999
PM INSTALL INSTRUCTIONS GEH-31-10781
...
999
MANUAL U&C TIP SHEET GEH-49-80597
...
999
PM QUICK GUIDE GEH-49-80755
...
999
PM INSTRUCTIONS INSTALL GEH-31-10816
...
1006
SCR 8-32 TT FLP .270 GEH-WB01X23501

CONVECTION FAN

...
...
43
HUB BLADE ASM GEH-WB02X26501
...
230
INSULATION CONV GEH-WB35X25290
...
511
MOTOR CONVX GEH-WB26X26500
...
514
COVER FAN CONVX (BK) GEH-WB34X20082
...
515
GASKET CONV FAN GEH-WB04T10080
...
534
BRACKET CONV FAN GEH-WB02T10550
...
684
SCREW 8-32 X 625 M HXW S GEH-WB01T10047
...
801
SCREW GEH-WB01M10002
...
977
NUT GEH-WB01X26247

COOKTOP

...
...
32
LIGHT INDICATOR GEH-WB27T10668
...
51
RANGETOP GLASS ASM (GY) GEH-WB62X25972
...
53
ELEMENT RADIANT 6 WARMER GEH-WB30X20871
...
56
ELEMENT RADIANT 5.5 IN GEH-WB30T10145
...
57
ELEMENT RADIANT 9" DUAL GEH-WB30X24111
...
58
ELEMENT HALIANT 12 IN GEH-WB30T10130
...
60
SPRING RADIANT ELEMENT GEH-WB09T10013
...
61
BRACKET RADIANT ELEMENT GEH-WB02X20902
...
62
BRACKET RADIANT ELEMENT GEH-WB02X20940
...
601
HARNESS WIRE MAINTOP GEH-WB18X25989
...
605
LEAD WIRE 14 GA GN GEH-WB18T10470
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
929
MAINTOP STRIKE GEH-WB02T10026
...
962
CLIP CABLE GEH-WB02X25982
...
998
GLASS CLEANER GEH-WB64X0093
...
1008
SCR 8-18 BA GEH-WB1X5904

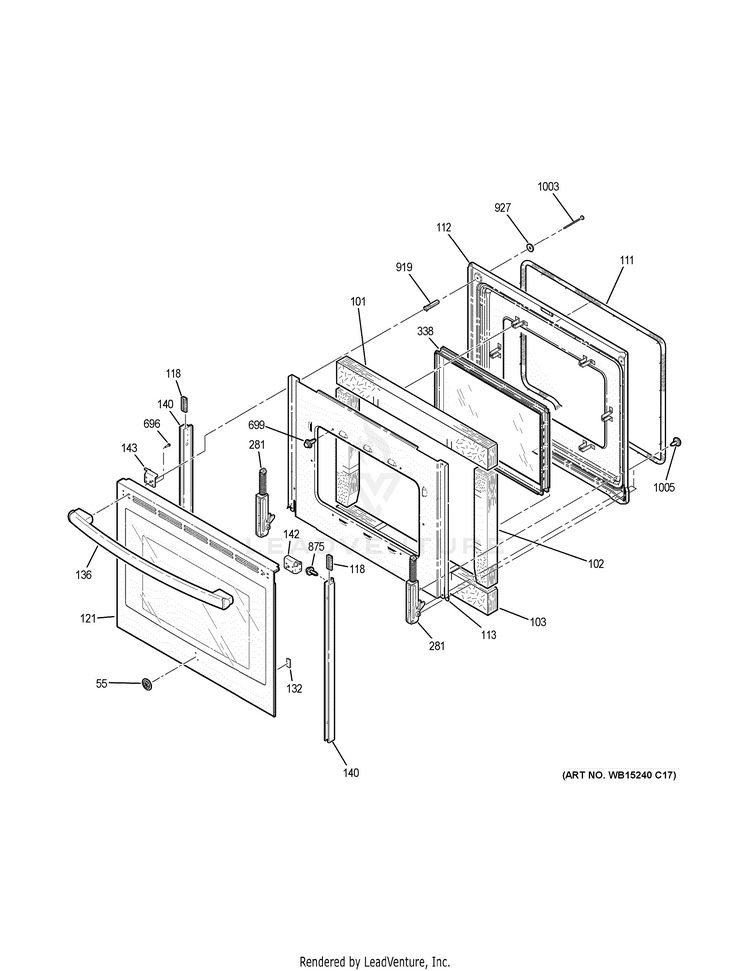

DOOR

...
...
55
BADGE ASM GEH-WB02X29479
...
101
INSULATION DOOR GEH-WB35T10077
...
102
INSULATION DOOR GEH-WB35T10114
...
103
INSULATION DOOR GEH-WB35T10255
...
111
GASKET OVEN GEH-WB04T10086
...
112
LINER OVEN DOOR ASM (BK) GEH-WB55T10203
...
113
RETAINER OVN DR INSLN GEH-WB56T10178
...
118
SPACER GEH-WB02X26240
...
121
OUTER DOOR PANEL ASM SS GEH-WB56X28575
...
132
DOOR PAD GEH-WB01T10026
...
136
HANDLE AND END CAP ASM GEH-WB15X29386
...
140
DOOR FRAME SIDE DG GEH-WB56X28569
...
142
BRACKET OVN HDL VNT TRM GEH-WB34X25220
...
143
BRACKET OVN HDL VNT TRM GEH-WB34X25221
...
281
HINGE DOOR GEH-WB10T10071
...
338
WINDOW PACK ASM GEH-WB56X22160
...
696
SCR 10-16 AB HXW .532 GEH-WB01T10103
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
919
SPACER GEH-WB02T10175
...
927
CONTOURED WASHER GEH-WB01X0119
...
1003
SCR 10-32 CA TRT15 3.06 GEH-WB02X24268
...
1005
SCREW 10-32 TR T GEH-WB01T10008

DOOR LOCK

...
...
150
LATCH AND HANDLE ASM GEH-WB14T10092
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
