GE JB695EF1ES Electric Range

Model: JB695EF1ES

Save Part Not Listed?
product name

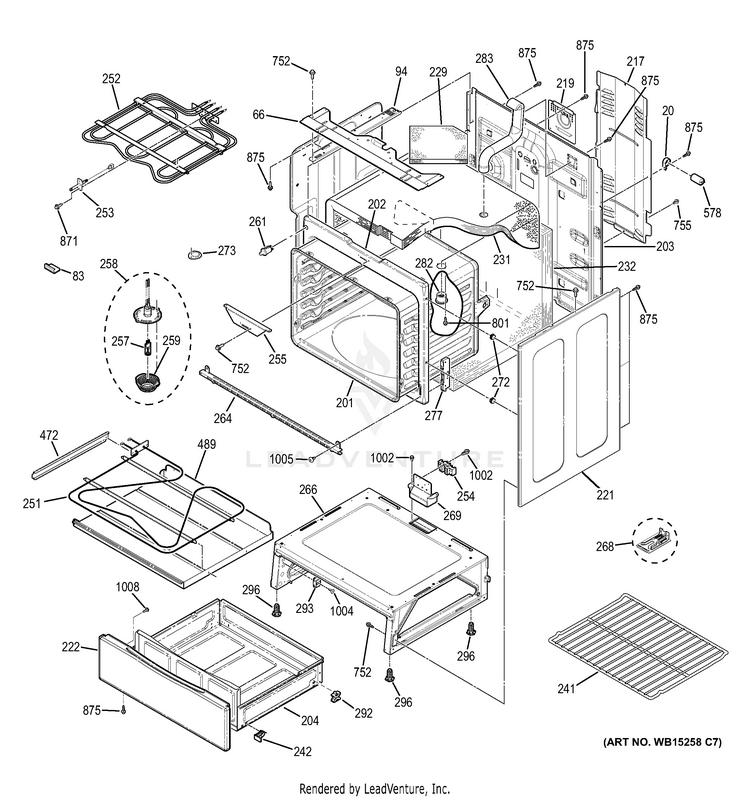

BODY PARTS

...
...
20
BRACKET CAPACITOR GEH-WB02T10194
...
66
ENCLOSURE RANGETOP GEH-WB34T10125
...
83
CLIP SEAM OVEN BODY GEH-WB02T10118
...
94
BRACE CHASSIS RADIANT LT GEH-WB02T10462
...
94
BRACE CHASSIS RADIANT RT GEH-WB02T10463
...
201
BODY OVN WELD ASM (BK) GEH-WB63X20923
...
202
FRAME FRONT 5.0 (BK) GEH-WB63X20115
...
203
BACK MAIN GEH-WB63T10176
...
204
DRAWER BODY ASM MECH GEH-WB55T10178
...
217
COVER BACK GEH-WB34T10128
...
219
COVER RECEPTACLE GEH-WB34T10011
...
221
PANEL SIDE (DG) GEH-WB63T10166
...
222
PANEL DRAWER (TZ) GEH-WB56X20111
...
229
VENT TUBE INSULATION GEH-WB35T10017
...
231
INSULATION OVN WRPR GEH-WB35X21443
...
232
INSULATION OVN BCK & BTM GEH-WB35X21424
...
241
RACK OVEN (SC) GEH-WB48T10082
...
242
WEDGE DRAWER GEH-WB48T10068
...
251
UNIT ASM GEH-WB44T10104
...
252
SHIELD BROIL ASM GEH-WB44X20882
...
253
SENSOR ASM GEH-WB21T10007
...
254
TERMINAL BLOCK ASM GEH-WB17T10011
...
255
LATCH TRIM GEH-WB07X7175
...
257
LAMP HALOGEN G9 GEH-WB08T10045
...
258
LAMP HALOGEN ASM GEH-WB25T10097
...
259
OV LAMP LENS GEH-WB25T10013
...
261
SWITCH SPDT HIGH AMP GEH-WB24T10147
...
264
TRIM FRT FRM (BK) GEH-WB07T10516
...
266
BASE RIVET ASM GEH-WB39T10007
...
268
BRACKET ANTI-TIP ASM GEH-WB02T10578
...
269
MOUNT TERMINAL BLOCK GEH-WB17T10021
...
272
SIDE PANEL SUPPORT GEH-WB02T10034
...
273
COVER GEH-WB02K5365
...
277
HINGE RECEIVER GEH-WB10T10068
...
282
VENT TUBE ASSY GEH-WB38T10012
...
283
TUBE VNT RADIANT GEH-WB28T10217
...
292
SUPPORT REAR GEH-WB48T10030
...
293
DRAWER SUPPORT FRT GEH-WB48T10013
...
296
LEG LEVELER GEH-WB02X10521
...
472
SIDE REFLECTOR GEH-WB49T10007
...
489
REFLECTOR PANE BAKE ELEM GEH-WB02T10509
...
578
CAPACITOR MOTOR GEH-WB27T10662
...
752
SCREW GEH-WB01K5200
...
755
SCR 8-32 AB IHWS 3/8 S GEH-WR01X10602
...
801
SCREW GEH-WB01M0001
...
871
SCREW GEH-WB01M0013
...
875
SCREW GEH-WH2X930
...
1002
SCREW 8-18 AB IHW 3/8 S GEH-WB01T10017
...
1004
SCR 8-15 A HXW 7/8 S GEH-WH02X0941
...
1005
SCREW 10-32 TR T GEH-WB01T10008
...
1008
SCR 8-18 BA POR 3/4 SN GEH-WB01X5904

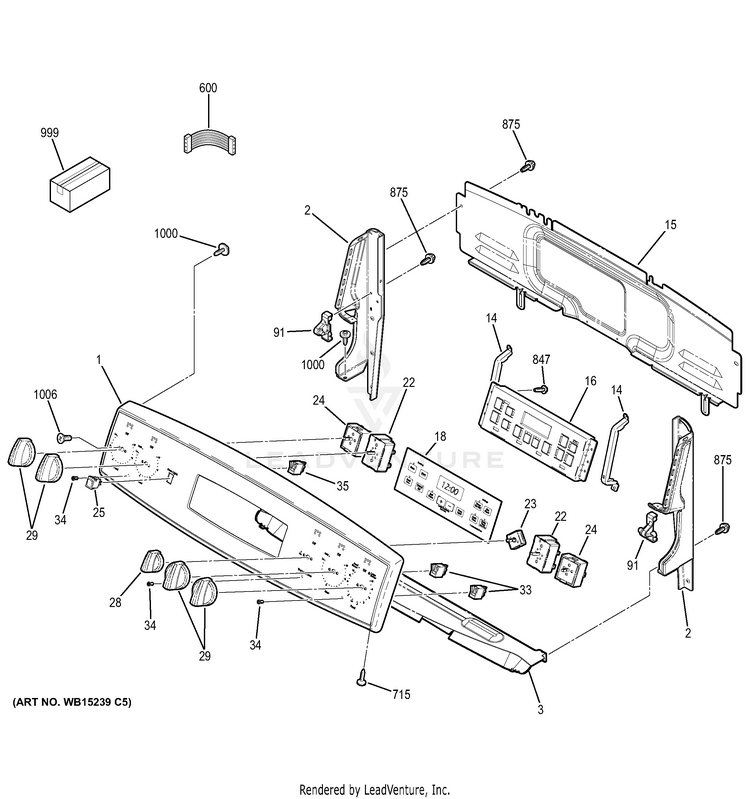

CONTROL PANEL

...
...
1
TRIM CNTRL ASM GEH-WB36X20086
...
1
LABEL WIRE DIAGRAM GEH-229C6238P001
...
2
PLATE END LT (GY) GEH-WB07X20042
...
2
PLATE END RT (GY) GEH-WB07X20043
...
3
SHIELD HEAT BKGD GEH-WB02T10468
...
14
BRACKET CONTROL GEH-WB34X20080
...
15
COVER CONTROL GEH-WB02T10532
...
16
CONTROL OVEN TO9 (ELEC) GEH-WB27X20078
...
18
FACEPLATE GRAPHICS (DG) GEH-WB27X20085
...
22
CONTROL INFINITE SWITCH GEH-WB24T10029
...
23
SWITCH ROTARY GEH-WB24T10181
...
24
SWITCH INFINITE CONTROL GEH-WB24T10153
...
25
SWITCH ROCKER OVEN GEH-WB24X21444
...
28
KNOB INFINITE GEH-WB03X21410
...
29
KNOB INFINITE GEH-WB03T10346
...
33
LIGHT INDICATOR PILOT GEH-WB27T10627
...
34
LENS GEH-WB25T10103
...
35
LIGHT INDICATOR PILOT GEH-WB25X20005
...
91
PIN RANGETOP HINGE GEH-WB10T10116
...
600
HARNESS WIRE INFINITE GEH-WB18X20001
...
715
SCREW GEH-WD2X432
...
847
SCR 6-20 GXB IHXW 3/8 NI GEH-WB02T10324
...
875
SCREW GEH-WH2X930
...
999
PM INSTALL INSTRUCTIONS GEH-31-10781
...
999
INSTRUCTION INSTALL GEH-31-10617
...
999
PM OWNERS MANUAL GEH-49-80632
...
999
PM INSTRUCTIONS INSTALL GEH-31-10816
...
999
MANUAL U&C TIP SHEET GEH-49-80597
...
999
PM MANUAL MINI & WD ASM GEH-31-17044
...
1000
SCR 8-18 AB HXW 1/2 S GEH-WB01T10126
...
1006
SCREW 8-32 TPT FLR 270 GEH-WB01T10053

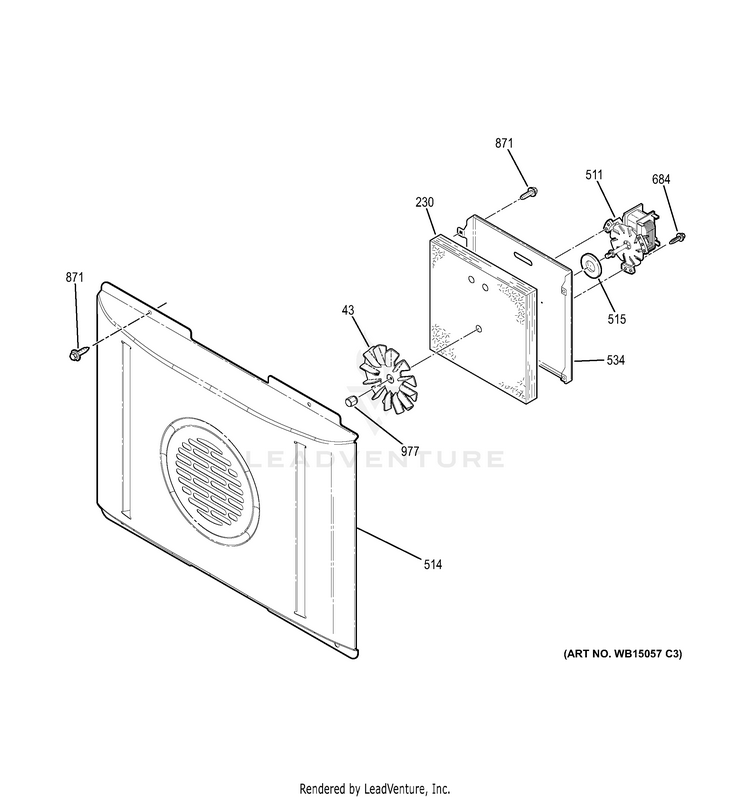

CONVECTION FAN

...
...
43
HUB BLADE ASM GEH-WB02T10289
...
230
INSULATION CONV GEH-WB35T10210
...
511
MOTOR PSC CONV GEH-WB26T10037
...
514
COVER FAN CONVX (BK) GEH-WB34X20082
...
515
GASKET CONV FAN GEH-WB02T10514
...
534
BRACKET CONV FAN GEH-WB02T10471
...
684
SCREW 8-32 X 625 M HXW S GEH-WB01T10047
...
871
SCREW GEH-WB01M0013
...
977
NUT GEH-WB02T10017

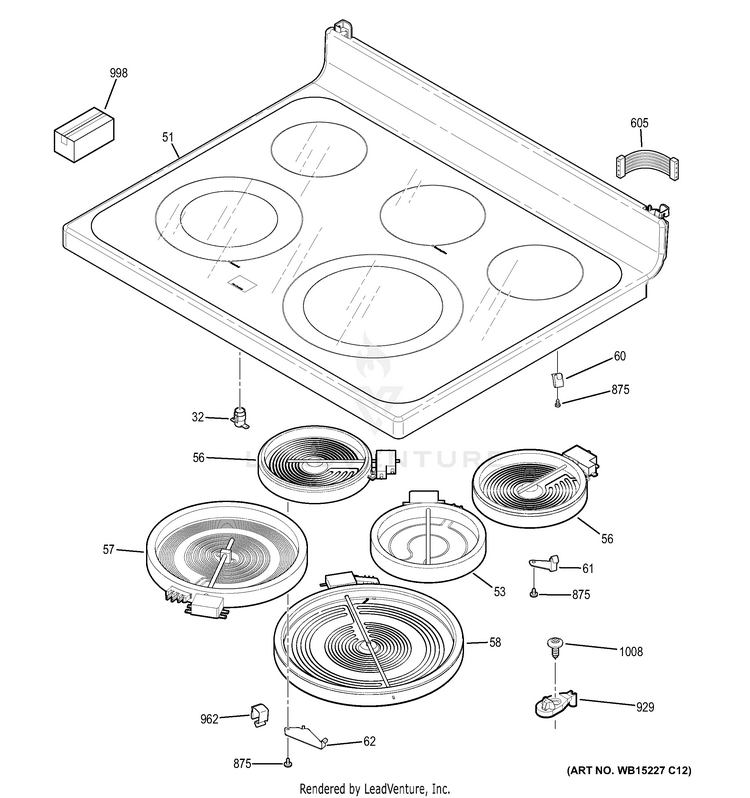

COOKTOP

...
...
32
LIGHT INDICATOR GEH-WB27T10668
...
51
RANGETOP GLASS ASM (DG) GEH-WB62X20857
...
53
ELEMENT RADIANT 6 WARMER GEH-WB30X20871
...
56
ELEMENT RADIANT 5.5 IN GEH-WB30T10145
...
57
ELEMENT RADIANT 9 DUAL GEH-WB30T10133
...
58
ELEMENT HALIANT 12 IN GEH-WB30T10130
...
60
SPRING RADIANT ELEMENT GEH-WB09T10013
...
61
BRACKET RADIANT ELEMENT GEH-WB02X20902
...
62
BRACKET RADIANT ELEMENT GEH-WB02X20940
...
605
HARNESS WIRE MAINTOP GEH-WB18X20008
...
875
SCREW GEH-WH2X930
...
929
MAINTOP STRIKE GEH-WB02T10026
...
962
CLIP CABLE GEH-WB02T10177
...
998
GLASS CLEANER GEH-WB64X0093
...
1008
SCR 8-18 BA POR 3/4 SN GEH-WB01X5904

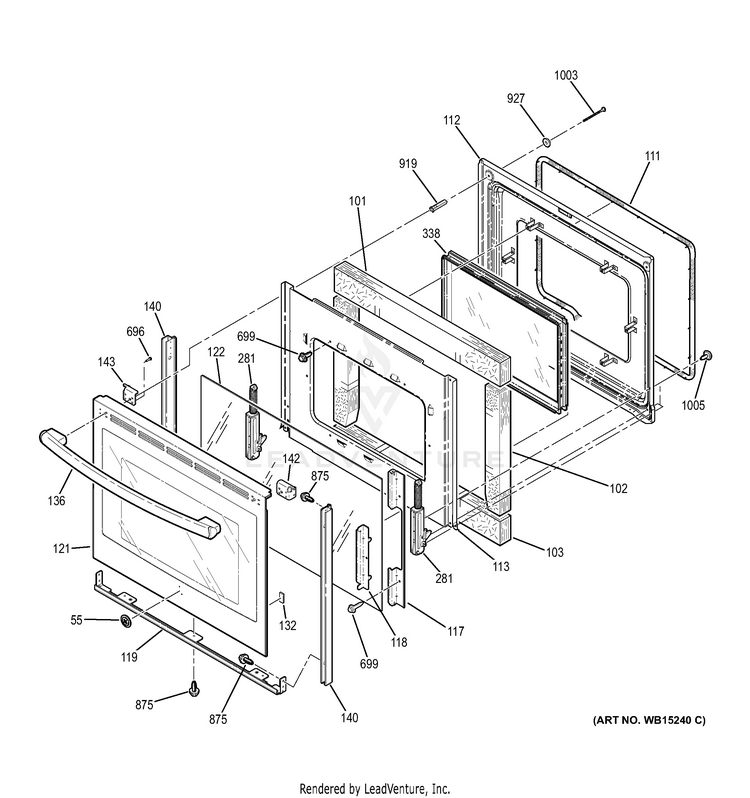

DOOR

...
...
55
BADGE GE GEH-WB02T10589
...
101
INSULATION DOOR GEH-WB35T10077
...
102
INSULATION DOOR GEH-WB35T10114
...
103
INSULATION DOOR GEH-WB35T10255
...
111
GASKET OVEN GEH-WB04T10086
...
112
LINER OVEN DOOR ASM (BK) GEH-WB55T10203
...
113
RETAINER OVN DR INSLN GEH-WB56T10178
...
117
RETAINER GLASS OVN DR GEH-WB56T10320
...
118
RETAINER GLASS OVN DR GEH-WB56T10321
...
119
TRIM OVN DR BTTM GEH-WB07T10462
...
121
PANEL DOOR OTR ASM (TZ) GEH-WB56X20091
...
122
OVEN DOOR GLASS-INNER GEH-WB57K5230
...
132
DOOR PAD GEH-WB01T10026
...
136
HANDLE AND END CAP ASM GEH-WB15X21956
...
140
FRAME DOOR SIDE (GY) GEH-WB56X20088
...
142
BRACKET OVN HDL VNT TRM GEH-WB02T10277
...
143
BRACKET OVN HDL VNT TRM GEH-WB02T10278
...
281
HINGE DOOR GEH-WB10T10067
...
338
PACK WINDOW ASM GEH-WB55T10191
...
696
SCR 10-16 AB HXW .532 GEH-WB01T10103
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
875
SCREW GEH-WH2X930
...
919
SPACER GEH-WB02T10175
...
927
CONTOURED WASHER GEH-WB01X0119
...
1003
SCR 10-16 PL PNT 2.5 S GEH-WB01T10067
...
1005
SCREW 10-32 TR T GEH-WB01T10008

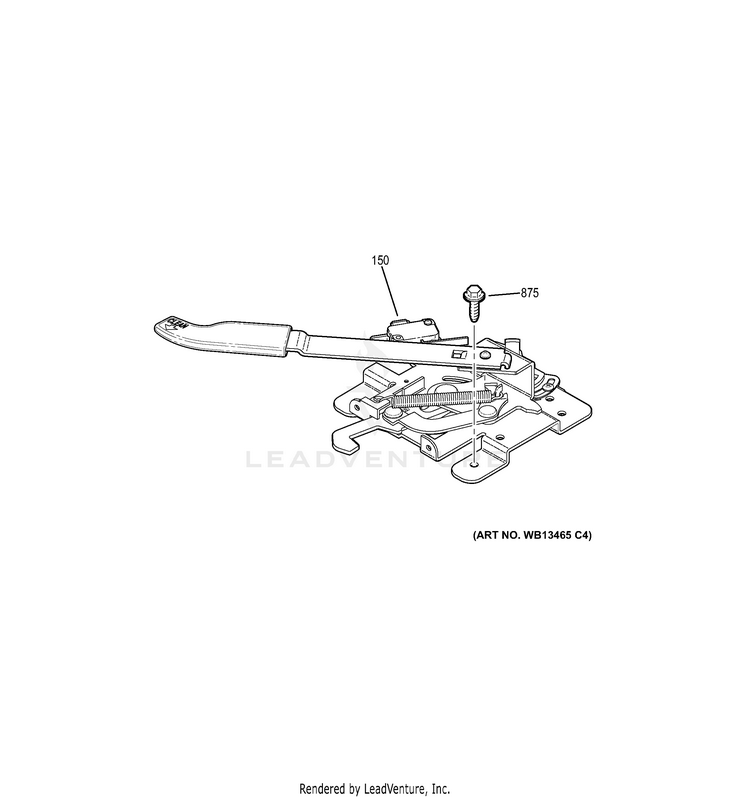

DOOR LOCK

...
...
150
LATCH AND HANDLE ASM GEH-WB14T10092
...
875
SCREW GEH-WH2X930
