GE JB645DT1WW Electric Range

Model: JB645DT1WW

Save Part Not Listed?
product name

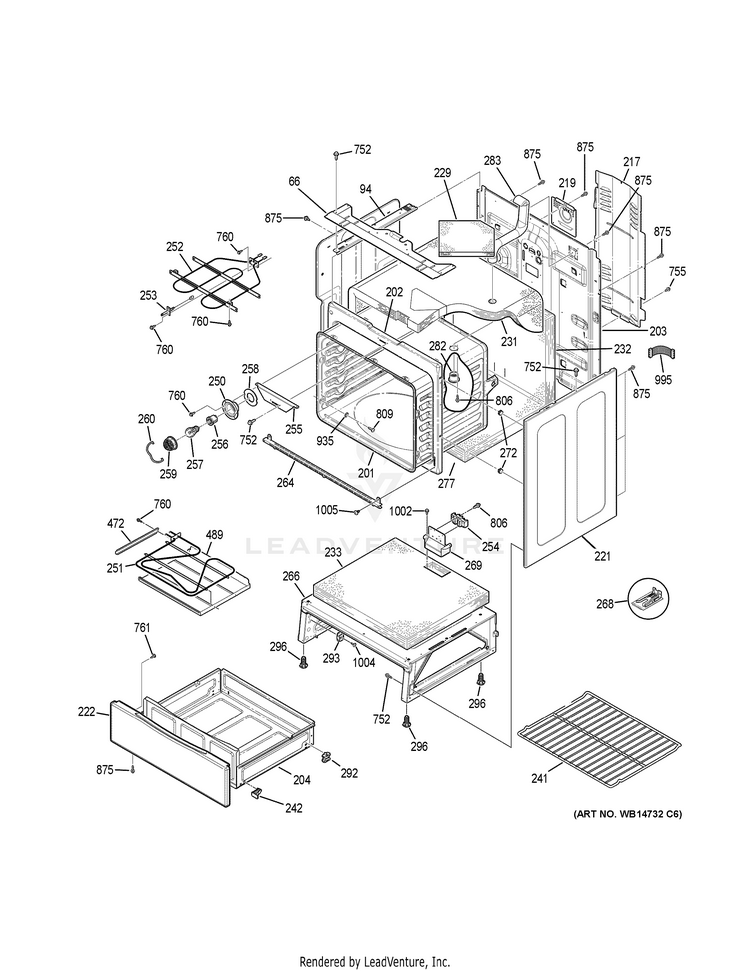

BODY PARTS

...
...
66
ENCLOSURE RANGETOP GEH-WB34T10125
...
94
BRACE CHASSIS RADIANT LT GEH-WB02T10462
...
94
BRACE CHASSIS RADIANT RT GEH-WB02T10463
...
201
WRAPPER OVEN CAVITY GEH-WB63T10046
...
202
FRAME FRONT GEH-WB63T10093
...
203
BACK MAIN GEH-WB63T10147
...
204
DRAWER BODY ASM MECH GEH-WB55T10178
...
217
COVER BACK GEH-WB34T10128
...
219
COVER RECEPTACLE GEH-WB34T10011
...
221
PANEL SIDE (WH) GEH-WB63T10122
...
222
PANEL DRAWER GEH-WB56T10268
...
229
VENT TUBE INSULATION GEH-WB35T10017
...
231
INSULATION OVN WRPR GEH-WB35T10209
...
232
OVEN BACK INSULATION GEH-WB35T10023
...
233
INSULATION HIDDEN BAKE GEH-WB35T10254
...
241
RACK OVEN GEH-WB48T10063
...
242
WEDGE DRAWER GEH-WB48T10068
...
250
OVEN LIGHT CUP GEH-WB02T10037
...
251
UNIT ASM GEH-WB44T10104
...
252
UNIT BROIL ASM GEH-WB44T10094
...
253
SENSOR ASM GEH-WB21T10007
...
254
TERMINAL BLOCK ASM GEH-WB17T10012
...
255
LATCH TRIM GEH-WB07X7175
...
256
RECEPTACLE PUSH-IN GEH-WB08T10026
...
257
40A15 GEH-WX12X1510
...
258
GASKET OVEN LIGHT GEH-WB02T10027
...
259
OV LAMP LENS GEH-WB36X0389
...
260
LIGHT LENS BAIL GEH-WB02X7694
...
264
TRIM FRT FRM (BK) GEH-WB07T10516
...
266
BASE RIVET ASM GEH-WB39T10007
...
268
BRACKET ANTI-TIP ASM GEH-WB02T10578
...
269
MOUNT TERMINAL BLOCK GEH-WB17T10021
...
272
SIDE PANEL SUPPORT GEH-WB02T10034
...
277
HINGE RECEIVER GEH-WB10T10068
...
282
VENT TUBE ASSY GEH-WB38T10012
...
283
TUBE VNT RADIANT GEH-WB28T10217
...
292
SUPPORT REAR GEH-WB48T10030
...
293
DRAWER SUPPORT FRT GEH-WB48T10013
...
296
LEG LEVELER GEH-WB02X10521
...
472
SIDE REFLECTOR GEH-WB49T10007
...
489
REFLECTOR PANE BAKE ELEM GEH-WB02T10509
...
752
SCREW GEH-WB01K5200
...
755
SCREW GEH-WZ04X0044
...
760
SCREW GEH-WB01K5028
...
761
SCREW (CR) GEH-WB01X5364
...
806
SCREW GEH-WB01M10002
...
809
SCREW GEH-WB01X1137
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
935
WASHER ALUM SHAPED GEH-WB01T10112
...
995
HARNESS WIRE INFINITE GEH-WB18T10495
...
995
HARNESS WIRE HB GEH-WB18T10498
...
1002
SCREW 8-18 AB IHW 3/8 S GEH-WB01T10017
...
1004
SCR 8-15 A HXW 7/8 S GEH-WH02X0941
...
1005
SCREW 10-32 TR T GEH-WB01T10008

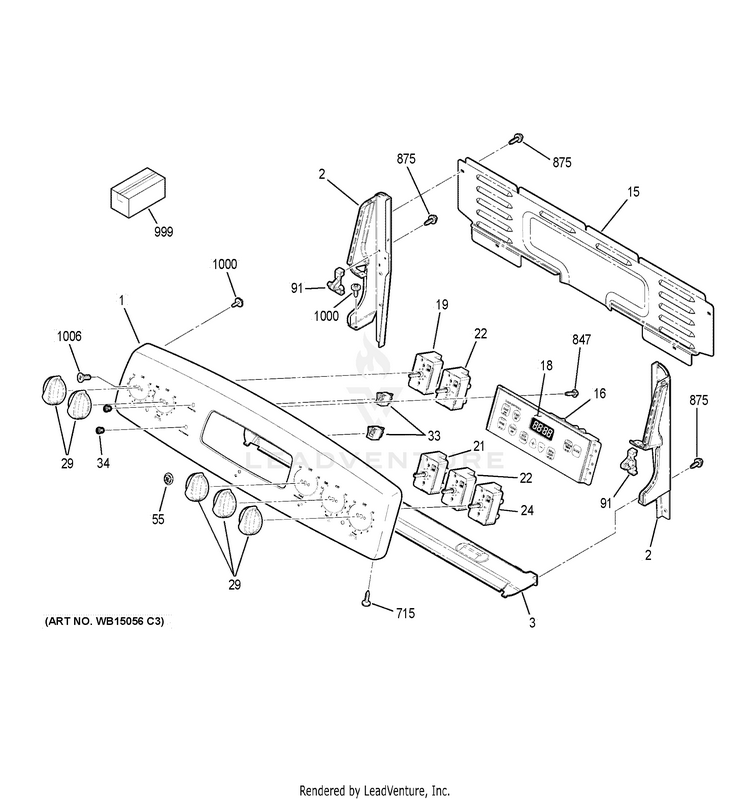

CONTROL PANEL

...
...
1
LABEL WIRE DIAGRAM GEH-229C6076P001
...
1
TRIM & BRACKET ASM GEH-WB36T11342
...
2
PLATE END LT (WH) GEH-WB36T11043
...
2
PLATE END RT (WH) GEH-WB36T11042
...
3
SHIELD HEAT BKGD GEH-WB02T10525
...
15
COVER CONTROL GEH-WB02T10532
...
16
CONTROL OVEN TO9 (ELEC) GEH-WB27T11349
...
18
FACEPLATE GRAPHICS GEH-WB27T11361
...
19
SWITCH INFINITE CONTROL GEH-WB24T10058
...
21
INFINITE SWITCH GEH-WB24T10168
...
22
CONTROL SURF ELEM GEH-WB24T10145
...
24
SWITCH INFINITE CONTROL GEH-WB24T10153
...
29
KNOB INFINITE (WH) GEH-WB03T10282
...
33
LIGHT INDICATOR PILOT GEH-WB27T10626
...
34
LENS GEH-WB25T10041
...
55
BADGE GE GEH-WB02T10359
...
91
PIN RANGETOP HINGE GEH-WB10T10125
...
715
SCR 10-32 CA IHW 7/16S8H GEH-WD02X0433
...
847
SCR 6-20 GXB IHXW 3/8 NI GEH-WB02T10324
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
999
PM INSTRUCTIONS INSTALL GEH-31-10816
...
999
PM INSTALL INSTRUCTIONS GEH-31-10781
...
999
PM INSTRUCTIONS INSTALL GEH-31-10780
...
999
INSTRUCTION INSTALL GEH-31-10617
...
999
PM MINI MANUALS GEH-31-14965
...
999
PM OWNERS MANUAL GEH-49-80632
...
999
GLASS CLEANER GEH-WB64X0093
...
1000
SCREW 8-18 AB HXW 5/8 S GEH-WB01T10016
...
1006
SCREW 8-32 TPT FLR 270 GEH-WB01T10053

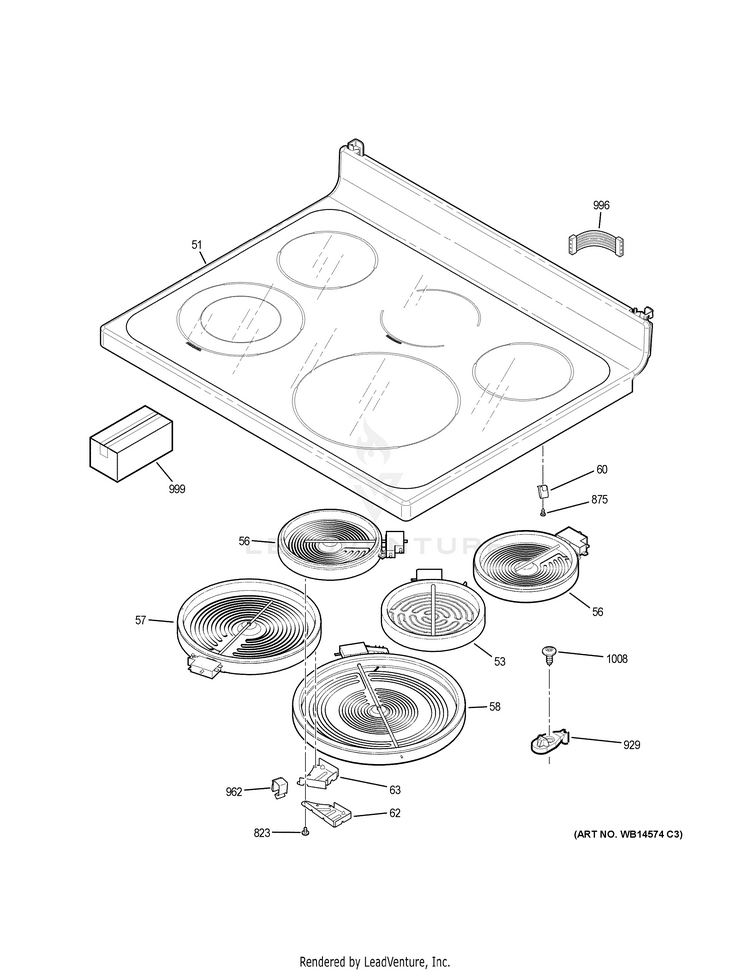

COOKTOP

...
...
51
RANGETOP GLASS ASM GEH-WB62T10721
...
53
ELEMENT RADIANT 6 WARMER GEH-WB30T10124
...
56
ELEMENT RADIANT 6 IN GEH-WB30T10129
...
57
ELEMENT HALIANT 8 IN GEH-WB30T10131
...
58
ELEMENT HALIANT 12 IN GEH-WB30T10146
...
60
SPRING RADIANT ELEMENT GEH-WB09T10013
...
62
BRACKET RADIANT ELEMENT GEH-WB02T10464
...
63
BRACKET RADIANT ELEMENT GEH-WB02T10486
...
823
SCREW GROUND GEH-WB01X1261
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
929
MAINTOP STRIKE GEH-WB02T10026
...
962
CLIP CABLE GEH-WB02T10177
...
996
HARNESS WIRE MAINTOP GEH-WB18T10486
...
999
PM INSTRUCTIONS INSTALL GEH-31-10816
...
999
PM INSTALL INSTRUCTIONS GEH-31-10781
...
999
PM INSTRUCTIONS INSTALL GEH-31-10780
...
999
PM MINI MANUALS GEH-31-14965
...
999
PM OWNERS MANUAL GEH-49-80632
...
999
GLASS CLEANER GEH-WB64X0093
...
999
INSTRUCTION INSTALL GEH-31-10617
...
1008
SCR 8-18 BA POR 3/4 SN GEH-WB01X5904

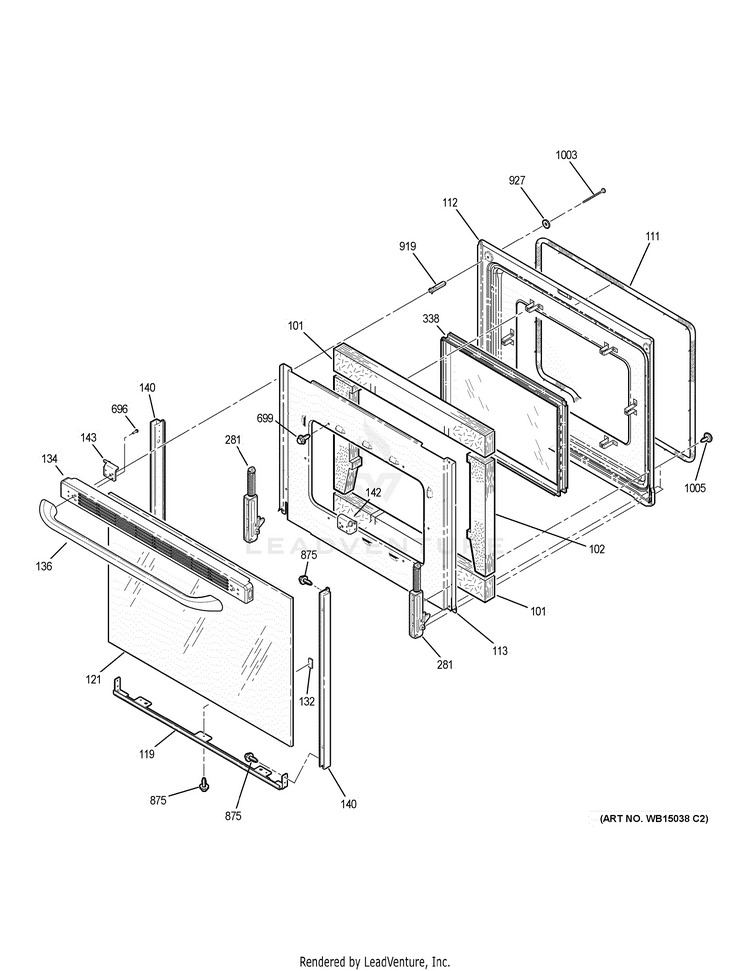

DOOR

...
...
101
DOOR INSULATION GEH-WB35T10016
...
102
INSULATION DOOR GEH-WB35T10114
...
111
OVEN DOOR GASKET GEH-WB04T10001
...
112
LINER OVEN DOOR ASM GEH-WB55T10176
...
113
RETAINER OVN DR INSLN GEH-WB56T10178
...
119
TRIM DR BTM CHNL GEH-WB07T10478
...
121
GLASS OVN DR (WH) GEH-WB56T10187
...
132
DOOR PAD GEH-WB01T10026
...
134
TRIM VENT DOOR GEH-WB07T10483
...
136
HANDLE (WH) GEH-WB15T10176
...
140
FRAME DOOR SIDE (WH) GEH-WB56T10290
...
142
BRACKET OVN HDL VNT TRM GEH-WB02T10418
...
143
BRACKET OVN HDL VNT TRM GEH-WB02T10419
...
281
HINGE DOOR GEH-WB10T10071
...
338
PACK WINDOW ASM GEH-WB55T10160
...
696
SCR 10-16 AB HXW .532 GEH-WB01T10103
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
919
SPACER GEH-WB02T10175
...
927
CONTOURED WASHER GEH-WB01X0119
...
1003
SCR 10-16 PL PNT 2.5 S GEH-WB01T10067
...
1005
SCREW 10-32 TR T GEH-WB01T10008

DOOR LOCK

...
...
150
LATCH AND HANDLE ASM GEH-WB14T10040
