GE JB625DK3BB Electric Range

Model: JB625DK3BB

Back To Assemblies

Save Part Not Listed?
product name

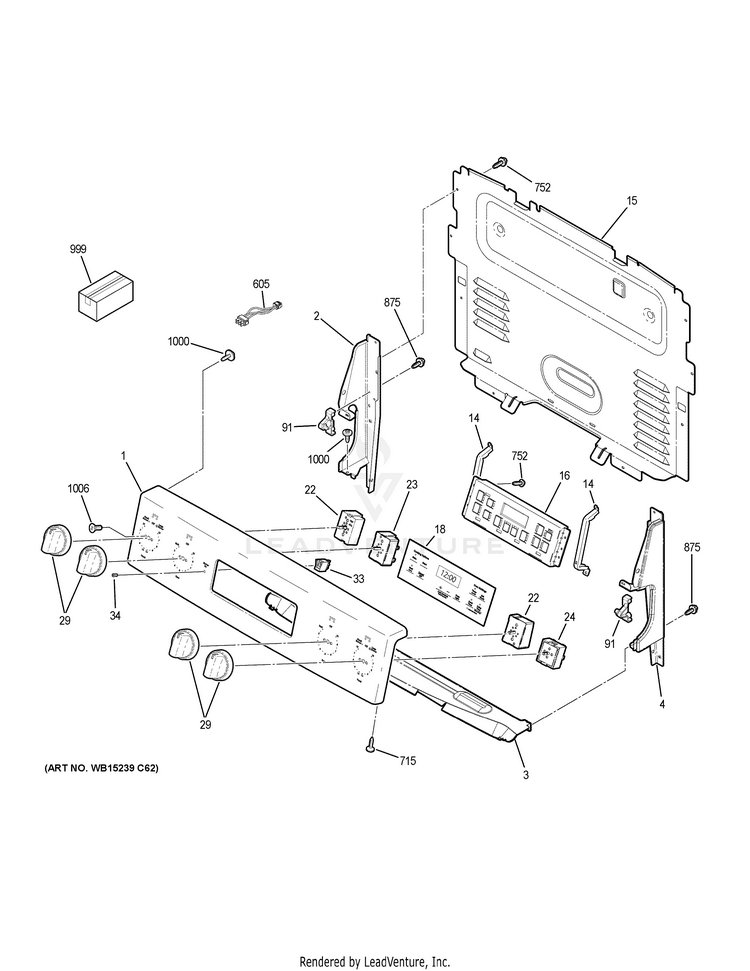

CONTROL PANEL

...
...
1
LABEL WIRE DIAGRAM GEH-229C6520P002
...
1
TRIM CONTROL ASM (BK) GEH-WB07X26648
...
2
END PLATE LT BK GEH-WB07X27830
...
3
BACKGUARD SHIELD HEAT GEH-WB34X28565
...
4
END PLATE RT BK GEH-WB07X27826
...
14
BRACKET CONTROL GEH-WB34X26635
...
15
CONTROL PANEL BACK COVER GEH-WB34X29575
...
16
OVEN CONTROL T09 WHITE LED GEH-WB27X29092
...
18
FACEPLATE GRAPHICS (BK) GEH-WB07X26647
...
22
CONTROL INFINITE SWITCH GEH-WB24T10029
...
23
CONTROL SURF ELEM GEH-WB24T10146
...
24
INF SW CONTROL (2500W) GEH-WB24T10025
...
29
KNOB INFINITE (BK) GEH-WB03X24904
...
33
LIGHT INDICATOR PILOT GEH-WB25X20005
...
34
LENS GEH-WB25X24023
...
91
PIN RANGETOP HINGE GEH-WB10T10116
...
605
INFINITE SWITCH HARNESS GEH-WB18X31232
...
715
SCREW 8-18 (BK) 1/2 S GEH-WB01K0060
...
752
SCREW GEH-WB01K5200
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
999
PM INSTRUCTIONS INSTALL GEH-31-10816
...
999
INSTRUCTION INSTALL GEH-31-10617
...
999
PM QUICK GUIDE GEH-49-80755
...
999
PM OWNERS MANUAL GEH-49-80780
...
999
PM MANUAL MINI & WD ASM GEH-31-17229
...
999
PM INSTALL INSTRUCTIONS GEH-31-10781
...
1000
SCR 8-18 AB HXW 1/2 S GEH-WB01T10126
...
1006
SCR 8-32 TT FLP .270 GEH-WB01X23501
