GE JB625DK1WW Electric Range

Model: JB625DK1WW

Save Part Not Listed?
product name

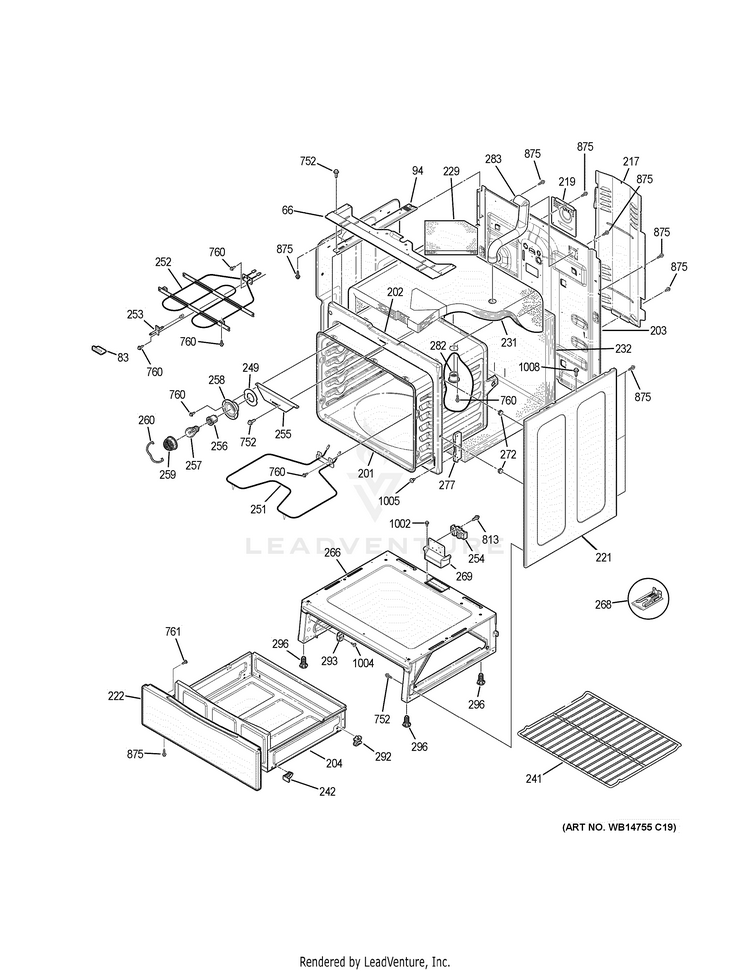

BODY PARTS

...
...
66
RANGETOP ENCLOSURE GEH-WB34X26630
...
83
CLIP SEAM OVEN BODY GEH-WB02T10118
...
94
BRACE CHASSIS RADIANT LT GEH-WB34X26004
...
94
BRACE CHASSIS RADIANT RT GEH-WB02T10463
...
201
BODY OVEN WELD ASM GEH-WB63X20942
...
202
FRAME FRONT GEH-WB63T10093
...
203
BACK MAIN GEH-WB63T10176
...
204
DRAWER BODY ASM MECH GEH-WB55T10178
...
217
COVER BACK GEH-WB34T10128
...
219
COVER RECEPTACLE GEH-WB34T10011
...
221
PANEL SIDE (WH) GEH-WB63T10122
...
222
PANEL DRAWER (WH) GEH-WB56X20107
...
229
VENT TUBE INSULATION GEH-WB35T10017
...
231
INSULATION OVN WRPR GEH-WB35T10209
...
232
INSULATION OVN BACK/BTTM GEH-WB35T10113
...
241
RACK OVEN GEH-WB48T10063
...
242
WEDGE DRAWER GEH-WB48T10068
...
249
GASKET OVEN LIGHT GEH-WB02T10027
...
251
BAKE ELEMENT GEH-WB44T10060
...
252
UNIT BROIL ASM (STD) GEH-WB44X26638
...
253
SENSOR ASM GEH-WB21X22134
...
254
TERMINAL BLOCK ASM GEH-WB17T10011
...
255
LATCH TRIM GEH-WB07X7175
...
256
RECEPTACLE PUSH-IN GEH-WB08T10026
...
257
40A15 GEH-WX12X1510
...
258
OVEN LIGHT CUP GEH-WB02T10037
...
259
OV LAMP LENS GEH-WB36X0389
...
260
LIGHT LENS BAIL GEH-WB02X7694
...
266
BASE RIVET ASM GEH-WB63X25881
...
268
BRACKET ANTI-TIP ASM GEH-WB02T10578
...
269
MOUNT TERMINAL BLOCK GEH-WB17T10021
...
272
SIDE PANEL SUPPORT GEH-WB02T10034
...
277
HINGE RECEIVER GEH-WB10T10068
...
282
VENT TUBE ASSY GEH-WB38T10012
...
283
TUBE VNT RADIANT GEH-WB28T10217
...
292
SUPPORT REAR GEH-WB48T10030
...
293
DRAWER SUPPORT FRT GEH-WB48T10013
...
296
LEG LEVELER GEH-WB02X10521
...
752
SCREW GEH-WB01K5200
...
760
SCREW GEH-WB01M10002
...
761
SCREW MTG GEH-WB1X5364
...
813
SCREW GROUND GEH-WB01X1261
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
1002
SCREW 8-18 AB IHW 3/8 S GEH-WB01T10017
...
1004
SCR 8-15 A HXW 7/8 S GEH-WH02X0941
...
1005
SCREW 10-32 TR T GEH-WB01T10008
...
1008
SCR 8-18 BA POR 3/4 SN GEH-WB01X5904

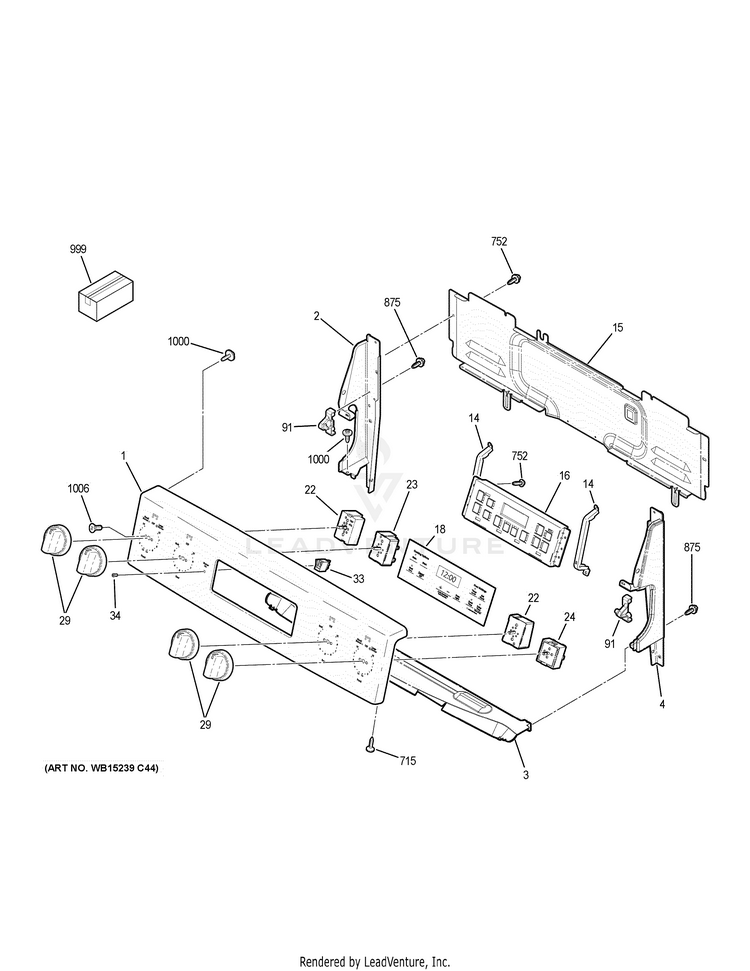

CONTROL PANEL

...
...
1
LABEL WIRE DIAGRAM GEH-229C6520P002
...
1
TRIM CONTROL ASM (WH) GEH-WB07X26653
...
2
PLATE END LH (WH) GEH-WB07X24950
...
3
SHIELD HEAT BKGD GEH-WB34X25151
...
4
PLATE END RH (WH) GEH-WB07X24951
...
14
BRACKET CONTROL GEH-WB34X26635
...
15
COVER CONTROL GEH-WB34X24901
...
16
CONTROL OVEN TO9 (ELEC) GEH-WB27X26761
...
18
FACEPLATE GRAPHICS (WH) GEH-WB07X26652
...
22
CONTROL INFINITE SWITCH GEH-WB24T10029
...
23
CONTROL SURF ELEM GEH-WB24T10146
...
24
INF SW CONTROL (2500W) GEH-WB24T10025
...
29
KNOB INFINITE (WH) GEH-WB03X24952
...
33
LIGHT INDICATOR PILOT GEH-WB25X20005
...
34
LENS GEH-WB25X24023
...
91
PIN RANGETOP HINGE GEH-WB10T10116
...
715
SCREW 8-18 (WH) 1/2 S GEH-WB01K0058
...
752
SCREW GEH-WB01K5200
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
999
PM OWNERS MANUAL GEH-49-80780
...
999
PM INSTRUCTIONS INSTALL GEH-31-10816
...
999
PM QUICK GUIDE GEH-49-80755
...
999
PM INSTALL INSTRUCTIONS GEH-31-10781
...
999
INSTRUCTION INSTALL GEH-31-10617
...
999
PM MANUAL MINI & WD ASM GEH-31-17229
...
1000
SCR 8-18 AB HXW 1/2 S GEH-WB01T10126
...
1006
SCR 8-32 TT FLP .270 GEH-WB01X23501

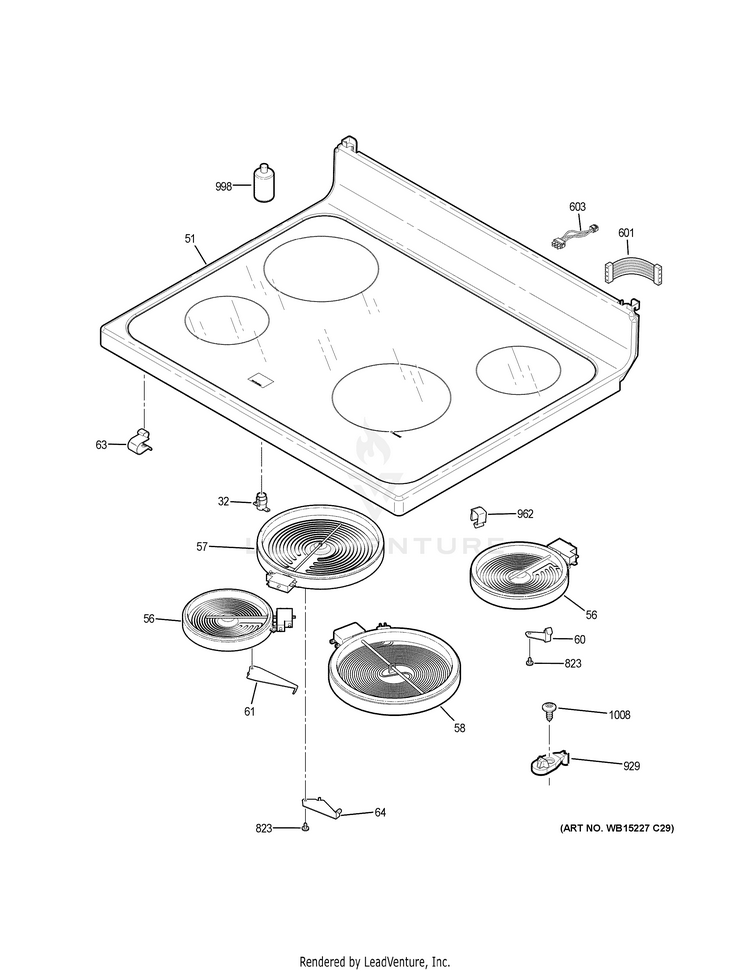

COOKTOP

...
...
32
LIGHT INDICATOR GEH-WB27T10668
...
51
RANGETOP GLASS ASM (WH) GEH-WB62X25976
...
56
ELEMENT RADIANT 5.5 IN GEH-WB30T10145
...
57
ELEMENT RADIANT 8 IN GEH-WB30T10132
...
58
ELEMENT HALIANT 8 IN GEH-WB30T10136
...
60
BRACKET RADIANT ELEMENT GEH-WB02X20902
...
61
BRACKET RADIANT ELEMENT GEH-WB02X20901
...
63
SPRING RADIANT ELEMENT GEH-WB09T10013
...
64
BRACKET RADIANT ELEMENT GEH-WB02T10609
...
601
HARNESS WIRE MAINTOP GEH-WB18T10591
...
603
LEAD WIRE 14 GA GN GEH-WB18T10470
...
823
SCR 8-32 AB IHWS 3/8 S GEH-WR01X10602
...
929
MAINTOP STRIKE GEH-WB02T10026
...
962
CLIP CABLE GEH-WB02T10177
...
998
GLASS CLEANER GEH-WB64X0093
...
1008
SCR 8-18 BA POR 3/4 SN GEH-WB01X5904

DOOR

...
...
101
DOOR INSULATION GEH-WB35T10016
...
102
INSULATION DOOR GEH-WB35T10114
...
103
INSULATION DOOR GEH-WB35T10255
...
111
GASKET OVEN GEH-WB04T10086
...
112
LINER OVEN DOOR ASM (GY) GEH-WB55T10200
...
113
RETAINER OVN DR INSLN GEH-WB56T10178
...
119
TRIM DR BTM CHNL GEH-WB07T10478
...
121
GLASS OVN DR OTR (WH) GEH-WB56X26641
...
132
DOOR PAD GEH-WB01T10026
...
134
TRIM VENT DOOR (WH) GEH-WB07X27236
...
136
HANDLE (LE-WH) GEH-WB15T10214
...
140
FRAME DOOR SIDE (WH) GEH-WB56T10290
...
142
BRACKET OVN HDL VNT TRM GEH-WB02T10277
...
143
BRACKET OVN HDL VNT TRM GEH-WB02T10278
...
281
HINGE DOOR GEH-WB10T10071
...
338
WINDOW PACK ASM GEH-WB56X22160
...
696
SCR 10-16 AB HXW .532 GEH-WB01T10103
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
919
SPACER GEH-WB02T10175
...
927
CONTOURED WASHER GEH-WB01X0119
...
1003
SCR 10-16 PL PNT 2.5 S GEH-WB01T10067
...
1005
SCREW 10-32 TR T GEH-WB01T10008

DOOR LOCK

...
...
150
LATCH AND HANDLE ASM GEH-WB14T10093
