GE JA624RN1SS Electric Range

Model: JA624RN1SS

Save Part Not Listed?
product name

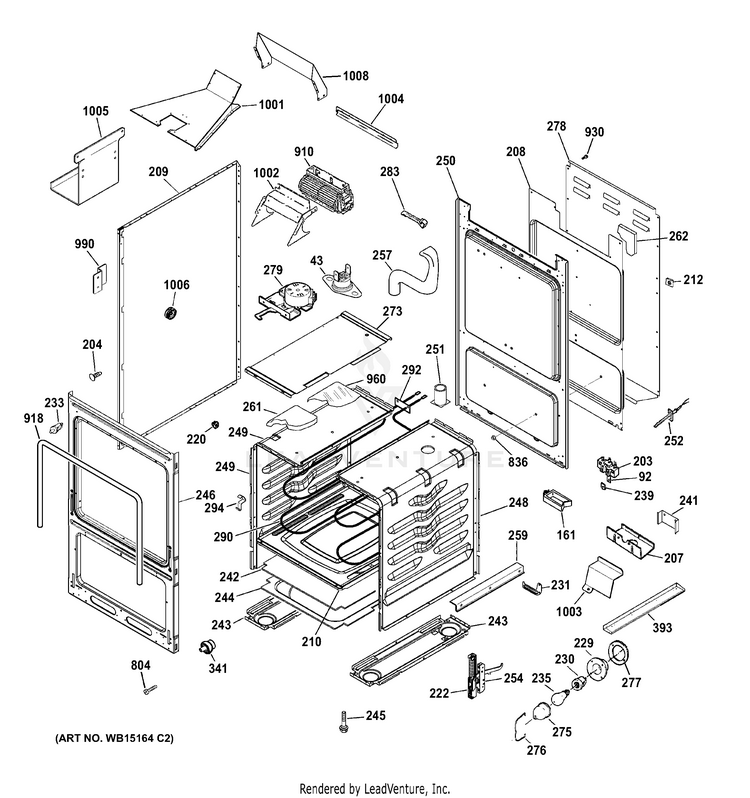

BODY PARTS

...
...
43
SWITCH LIMIT GEH-WB20K10029
...
92
SCREW GROUND GEH-WB01X1261
...
161
CLIP WIRE GEH-WB02X7066
...
203
TERMINAL BLOCK GEH-WB10K10021
...
204
SCREW GEH-WB01K10092
...
204
SCREW (BLK) GEH-WB01K0042
...
204
SCREW GEH-WB01K0084
...
207
BRACKET MTG TERMINAL GEH-WB02K10029
...
208
RANGE BACK GEH-WB63K10160
...
209
PANEL SIDE GEH-WB63K10158
...
210
OVEN BOTTOM GEH-WB36K10791
...
212
SPEEDNUT GEH-WB01K10093
...
220
GROMMET GEH-WB02K10188
...
220
GROMMET GEH-WB02K0008
...
222
HINGE DOOR OVEN ASM GEH-WB10K10041
...
229
HOUSING RECEPTABLE GEH-WB08K10010
...
230
RECEPTACLE PUSH IN GEH-WB08K0002
...
231
BRACKET ASM ANTI-TIP GEH-WB02K10385
...
231
ARM ANTI TIP GEH-WB02K10235
...
231
BRACKET ANTI TIP GEH-WB02K10387
...
233
SWITCH PLUNGER GEH-WB24K10040
...
235
40A15 GEH-STD372401
...
239
PLATE-GROUND GEH-WB02X0646
...
241
TERMINAL BLOCK SUPPORT GEH-WB63K10104
...
242
COVER GABINET GEH-WB63K10085
...
243
BASE SUPPORT LEFT SIDE GEH-WB63K10186
...
244
BASE SUPPORT GEH-WB63K10086
...
245
LEVEL SCREW GEH-WB02K10126
...
246
FRAME & SUPPORT WELD ASM GEH-WB63K10163
...
248
OVEN SIDE GEH-WB63K10159
...
249
OVEN SIDE GEH-WB63K10155
...
250
OVEN BACK 24 GEH-WB38K10018
...
251
TUBE VENT GEH-WB28T10073
...
252
WB21X5301 GEH-WB21X5347
...
254
RECEPTACLE HINGE GEH-WB10K10003
...
257
VENT WELD ASSEMBLY GEH-WB38K10019
...
259
RAIL DRAWER GEH-WB39K10037
...
261
OVEN WRAP INSULATION GEH-WB35K10117
...
262
INSULATION OVEN BACK GEH-WB35K10123
...
273
CAVITY GUARD GEH-WB53K10032
...
275
GLASS OVEN LAMP GEH-WB08K0005
...
276
BAIL GEH-WB02K0027
...
277
GASKET OVEN LIGTH GEH-WB32K10053
...
278
COVER RANGE BACK GEH-WB34K10100
...
279
LATCH AUTOMATIC GEH-WB02K10184
...
283
CLIP CABLE GEH-WB02K0031
...
290
HEATER BAKE GEH-WB44K10021
...
292
HEATER BROIL GEH-WB44K10022
...
294
BROIL ELEMENT SUPPORT GEH-WB02X9719
...
341
DRAWER SUPPORT GEH-WB02K10186
...
393
BRACKET GUIDE DRAWER GEH-WB39K10038
...
804
SCREW GEH-WB01X1127
...
836
HEX NUT 1/4 GEH-WB01K10051
...
910
BLOWER TANGENTIAL 60MM GEH-WB26K10008
...
918
GASKET FRONT FRAME GEH-WB04K10027
...
930
SCREW GEH-WB01K10052
...
960
CAP WRAP INSULATION GEH-WB53K10033
...
990
BRACKET PANEL GEH-WB02K10187
...
1001
DUCT BLOWER GEH-WB63K10166
...
1002
DUCT UPPER HALF GEH-WB34K10102
...
1003
COVER BLOWER GEH-WB34K10103
...
1004
SUPPORT BACKGUARD GEH-WB37K10018
...
1005
MOTOR SUPPORT GEH-WB34K10106
...
1006
HEAT BREAKER GEH-WB02K10190
...
1008
BACK DUCT GEH-WB34K10104

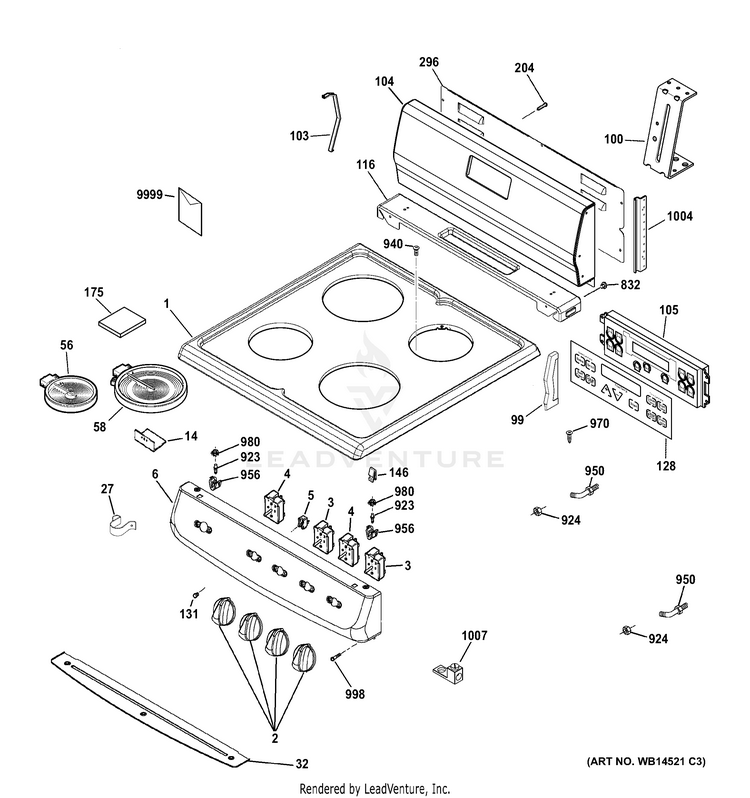

CONTROL PANEL & COOKTOP

...
...
1
RANGETOP AND GLASS ASM GEH-WB36K10794
...
2
KNOB INFINITE GEH-WB03K10250
...
3
INF SW CTN (2100W) GEH-WB24T10027
...
4
CONTROL INFINITE SWITCH GEH-WB24T10029
...
5
LAMP PILOT GEH-WB25K10002
...
6
PANEL AND COVER ASM GEH-WB36K10795
...
14
COVER THERMOSTAT GEH-WB20K10031
...
27
RADIANT SPRING ELEMENT GEH-WB09T10002
...
32
DEFLECTOR PANEL GEH-WB35K10122
...
56
HALIANT ELEMENT 6" CERSP GEH-WB30K10010
...
58
ELEMENT HALIANT 8 GEH-WB30K10013
...
99
END CAP BACKGUARD GEH-WB07K10290
...
99
END CAP BACKGUARD GEH-WB07K10291
...
100
SUPPORT PANEL COMPLEMENT GEH-WB63K10172
...
100
SUPPORT PANEL COMPLEMENT GEH-WB63K10161
...
103
BRACKET BACKGUARD GEH-WB02K10185
...
104
TRIM AND COVER ASM GEH-WB36K10793
...
105
CONTROL ERC3B2K2 5 GEH-WB27K10291
...
116
BACKGUARD BASE WELD ASM GEH-WB36K10792
...
128
FACEPLATE GRAPHICS ASM GEH-WB27K10297
...
131
LENS GEH-WB25K0002
...
146
CLIP RANGETOP GEH-WB02K0052
...
175
COVER LATCH GEH-WB34K10105
...
204
SCREW (BLK) GEH-WB01K0042
...
204
SCREW GEH-WB01K0084
...
204
SCREW GEH-WB01K10092
...
296
COVER REAR BACKGUARD GEH-WB34K10101
...
832
SCREW GEH-WB01K10043
...
923
STRIKE MAINTOP GEH-WB02K10128
...
924
NUT LOCK HEX GEH-WB01K10048
...
940
SCR 8-18 X 3/8 GEH-WB01K10062
...
950
COOKTOP GUIDE GEH-WB02K10129
...
956
CATCH DR STRIKE GEH-WB02K10091
...
970
SCREW 8-18X3/8" GEH-WB01K10054
...
980
NUT LOCK HEX GEH-WB01K10041
...
998
SCREW 8-32 TPT FLR 215 S GEH-WB01T10020
...
1004
SUPPORT BACKGUARD GEH-WB37K10018
...
1007
CONNECTOR GEH-WB10K10022
...
9999
PM INSTALL INSTRUCTIONS GEH-31-10840
...
9999
CLEANER GLASS GEH-WB02X11121
...
9999
PM OWNERS AND INSTALL GEH-49-88054
...
9999
PM MINI MANUAL GEH-31-14939
...
9999
CERAMA BRITE 2.8 OZ SS B GEH-WB06K10004

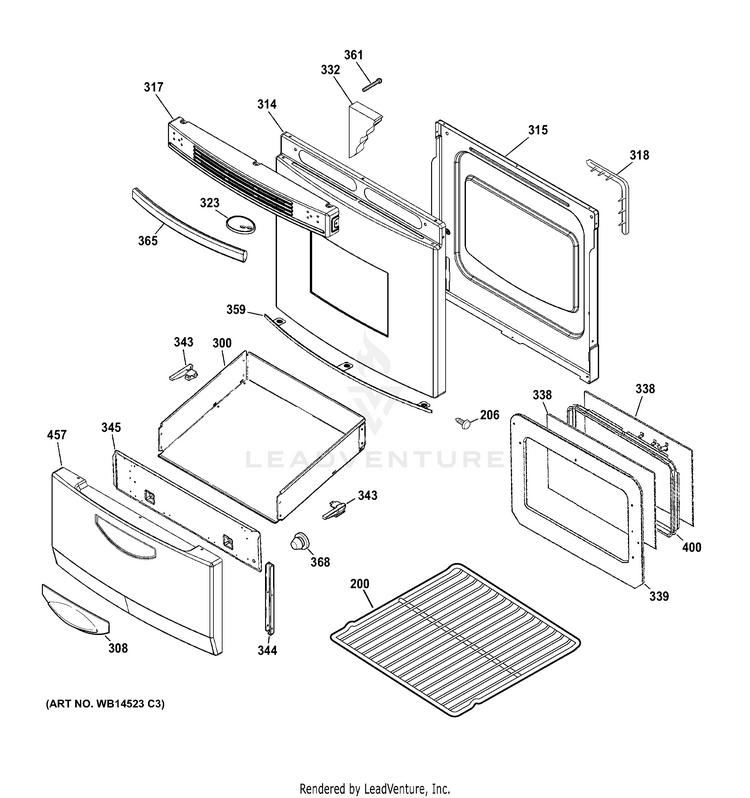

DOOR & DRAWER PARTS

...
...
200
OVEN RACK GEH-WB48K10012
...
206
SCREW GEH-WB01K10091
...
206
SCREW GEH-WB01X10365
...
300
DRAWER BODY GEH-WB58K10009
...
308
POCKET HANDLE GEH-WB15K10067
...
314
GLASS AND COVER ASM GEH-WB56K10063
...
315
LATCH LINER DOOR ASSY GEH-WB55K10083
...
317
DOOR TRIM GEH-WB07K10288
...
318
DOOR GASKET GEH-WB04K10034
...
323
HANDLE BASE GEH-WB07K10289
...
332
DOOR WINDOW INSULATION GEH-WB35K10173
...
338
GLASS DOOR SOLID GEH-WB56K10056
...
339
GUARD DOOR GEH-WB56K10058
...
343
GLIDER DRAWER RIGHT GEH-WB02K10061
...
343
GLIDER DRAWER LEFT GEH-WB02K10062
...
344
BRACKET MOUNTING DRAWER GEH-WB39K10036
...
345
LINER DRAWER GEH-WB55K10057
...
359
LOWER PROTECTOR GEH-WB56K10054
...
361
SCREW 10-16 DOOR GEH-WB01K0069
...
361
SCREW GEH-WB01K10061
...
365
EXTRUDED HANDLE GEH-WB15K10085
...
368
BUMPER, BLACK GEH-WB02K0015
...
400
BRACKET WINDOW GEH-WB34K10107
...
457
KICK PANEL AND COVER ASM GEH-WB56K10052
