GE GZS22IENBHDS Refrigerator

Model: GZS22IENBHDS

Back To Assemblies

Save Part Not Listed?
product name

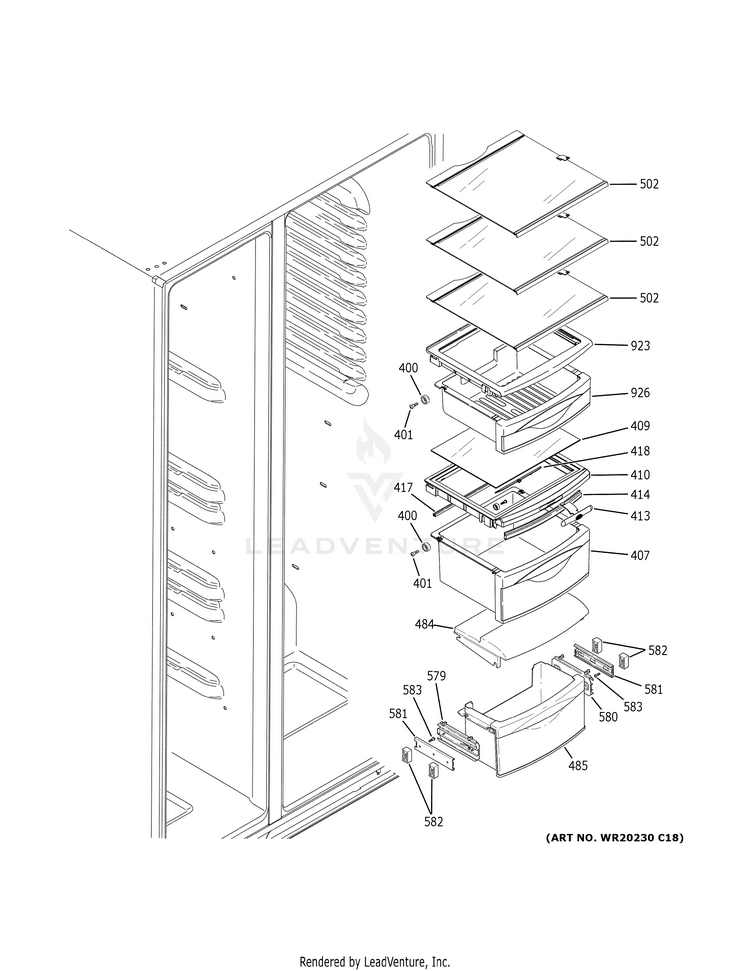

FRESH FOOD SHELVES

...
...
400
WHEEL PAN COVER GEH-WR01X10209
...
401
SCR 10-16 GEH-WR01X10583
...
407
PAN ASM GEH-WR32X26218
...
409
COVER PAN GLASS GEH-WR32X10200
...
410
COVER MIDDLE PAN GEH-WR32X26245
...
413
HUMIDITY CONTROL GEH-WR02X10821
...
414
GASKET PAN CRV FRONT GEH-WR14X10059
...
417
GASKET PAN CRV REAR GEH-WR14X10058
...
418
SLIDE MIDDLE PAN COVER GEH-WR02X10633
...
484
COVER BOTTOM PAN GEH-WR32X31411
...
485
PAN FRAME ASM GEH-WR32X26241
...
502
SLIDEOUT SHELF GEH-WR71X31000
...
579
SLIDE AND BRACKET ASM L GEH-WR72X10193
...
580
SLIDE AND BRACKET ASM R GEH-WR72X10194
...
581
SLIDE LINER GEH-WR72X10195
...
582
SPACER GEH-WR72X10239
...
583
SCR 8-18 AB HW 1/2 S GEH-WR01X10629
...
923
COVER TOP PAN ASM GEH-WR32X10579
...
926
PAN TOP ASM GEH-WR32X26217
