GE GZS22DGJKFBB Refrigerator

Model: GZS22DGJKFBB

Back To Assemblies

Save Part Not Listed?
product name

FRESH FOOD DOOR

...
...
7
ARC HANDLE ASM GEH-WR12X21070
...
9
FASTENER DOOR HANDLE GEH-WR01X11007
...
12
DOOR STOP GEH-WR02X13425
...
16
CAM CLOSURE FZ BLACK GEH-WR02X10779
...
103
GASKET GEH-WR24X20456
...
104
GE BADGE GEH-WR04X29209
...
105
DOOR DAIRY GEH-WR22X24438
...
132
SHELF FIXED FF GEH-WR71X24430
...
133
SHELF MODULE FF GEH-WR71X24428
...
134
SHELF FIXED FF GEH-WR71X24429
...
904
SCR 10-16 GEH-WR01X10582
...
910
DOOR FOAM ASM FF GEH-WR78X24442
...
911
THIMBLE DOOR GEH-WR01X10956
...
912
THIMBLE DOOR GEH-WR01X10953
...
915
SET SCREW GEH-WR01X20424

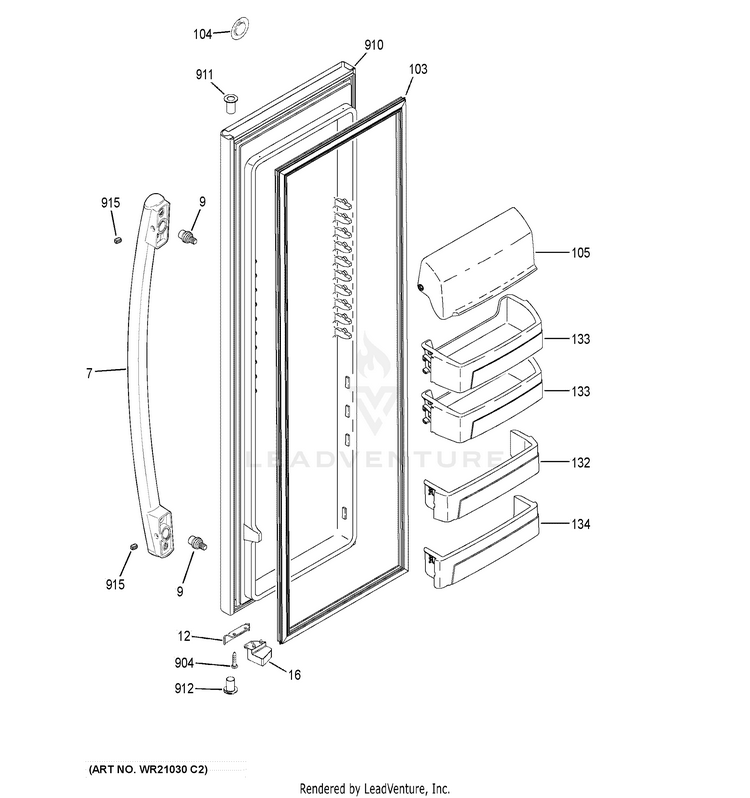

Schematic Image Zoomed
