GE GZS22DGJBFBB Refrigerator

Model: GZS22DGJBFBB

Back To Assemblies

Save Part Not Listed?
product name

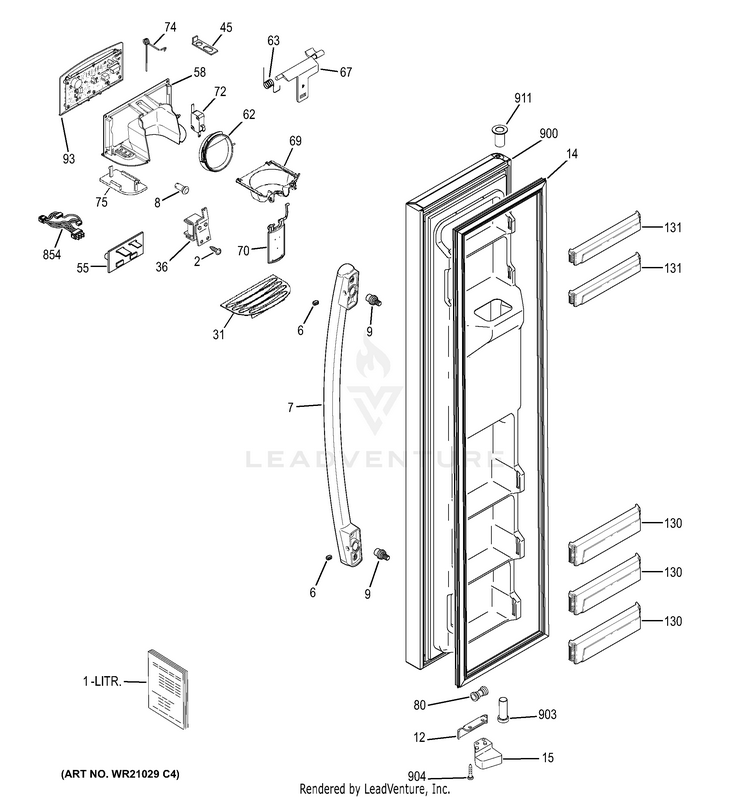

FREEZER DOOR

...
...
1
PM MINI MANUAL WIRING GEH-31-51660
...
1
PM GUIDE OWNERS GEH-49-60646
...
2
SCR 4-10 PL PNP 3/4 SS GEH-WR02X12257
...
6
SET SCREW GEH-WR01X20424
...
7
ARC HANDLE ASM GEH-WR12X20440
...
8
RIVET CLINCH GEH-WR02X13502
...
9
FASTENER DOOR HANDLE GEH-WR01X11007
...
12
DOOR STOP GEH-WR02X13424
...
14
GASKET DOOR FZ BK** GEH-WR24X10158
...
15
CAM CLOSURE FZ WHITE GEH-WR02X10638
...
31
GRILLE RECESS WH GEH-WR17X11654
...
36
SOLENOID ASM GEH-WR62X10055
...
45
RETAINER RECESS DOOR GEH-WR02X8818
...
55
BOARD ASM DISP LIGHTING GEH-WR55X10899
...
58
HOUSING SHIELD DISP GEH-WR17X12126
...
62
DOOR RECESS ASM GEH-WR17X11653
...
63
SPRING RECESS DOOR GEH-WR02X10585
...
67
CRANK DOOR RECESS GEH-WR17X10706
...
69
FUNNEL ICE DISP GEH-WR17X12120
...
70
PADDLE ASM GEH-WR17X12885
...
72
SWITCH GEH-WR23X10224
...
74
SPRING TORSION GEH-WR02X12256
...
75
COVER LED HOUSING SHIELD GEH-WR02X13405
...
80
UNION CONNECTOR GEH-WR02X11330
...
93
INTERFACE DISPENSER ASM GEH-WR55X20471
...
130
SHELF DOOR FZ BOTTOM GEH-WR71X24432
...
131
SHELF DOOR FZ UPPER GEH-WR71X24431
...
854
HARNESS RECESS DISP GEH-WR23X10695
...
900
DOOR FOAM ASM FZ GEH-WR78X24441
...
903
THIMBLE DOOR BTM FZ WHIT GEH-WR01X10208
...
904
SCR 10-16 GEH-WR01X10582
...
911
THIMBLE DOOR GEH-WR01X10955
