GE GUD27GSSJ0WW Washer/Dryer Combo

Model: GUD27GSSJ0WW

Back To Assemblies

Save Part Not Listed?
product name

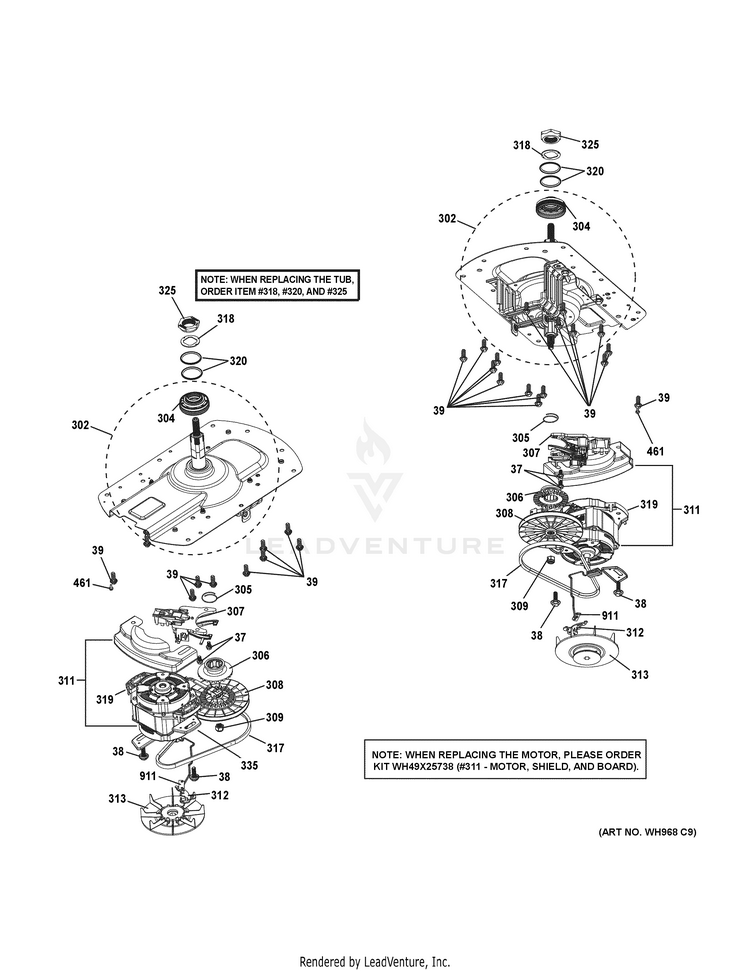

MOTOR & DRIVE ASSEMBLY

...
...
37
1/4-20 TAPTITE HWH GEH-WH01X10612
...
38
HEX SCREW 5/16-18 GEH-WH01X10614
...
39
HEX. PT SCREW K80 X 3.59 GEH-WH01X10616
...
302
KIT SUPPORTS ASSEMBLY 2 GEH-WH49X22795
...
304
SEAL TUB GEH-WH08X10063
...
305
SPRING SHIFTER GEH-WH01X10606
...
306
SHIFTER HUB GEH-WH01X10607
...
307
FORK SUPPORT ASM GEH-WH16X10147
...
308
TRANSMISSION PULLEY GEH-WH38X10018
...
309
NUT PULLEY GEH-WH01X10611
...
311
KIT MOTOR AND SHIELD TUB GEH-WH49X25738
...
312
SUPPORT SENSOR BOARD GEH-WH12X20439
...
313
SET SCREW PULLEY M. ASSY GEH-WH01X10608
...
317
DRIVE 3L GEH-WH01X20436
...
318
WASHER HUB GEH-WH01X22787
...
319
GROMMET MOTOR GEH-WH03X20508
...
320
O-RING GEH-WH09X22745
...
325
NUT HUB GEH-WH01X10618
...
335
MOTOR BRACKET GEH-WE13X24974
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
911
SENSOR SPEED GEH-WH12X10515
Schematic Image Zoomed
