GE GUD27GSSJ0WW Washer/Dryer Combo

Model: GUD27GSSJ0WW

Back To Assemblies

Save Part Not Listed?
product name

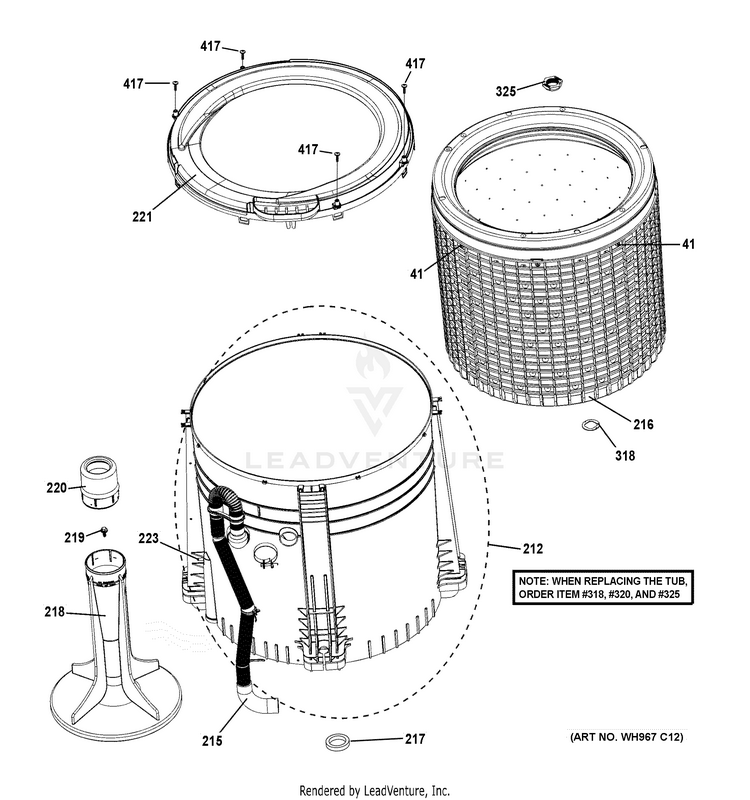

TUB, BASKET & AGITATOR

...
...
41
SCR 9-15 TWIN HEL 3/4 GEH-WH01X10610
...
212
TUB ASM GEH-WH45X21995
...
215
ELBOW OVER FLOW GEH-WH01X10605
...
216
BASKET ASSEMBLY GEH-WH45X23154
...
217
GASKET GEH-WE09X21594
...
218
AGITATOR GEH-WH43X10056
...
219
ENS. TORNILLO AGITADOR GEH-WH01X10619
...
220
COVER FSD GEH-WH44X20435
...
221
TUB COVER ASM GEH-WH44X27617
...
223
PRESS HOSE CLAMP GEH-WH16X10152
...
318
WASHER HUB GEH-WH01X22787
...
325
NUT HUB GEH-WH01X10618
...
417
SCR 10-12 A HX 1/2 S GEH-WH02X0694
