GE GUD27GSSJ0WW Washer/Dryer Combo

Model: GUD27GSSJ0WW

Back To Assemblies

Save Part Not Listed?
product name

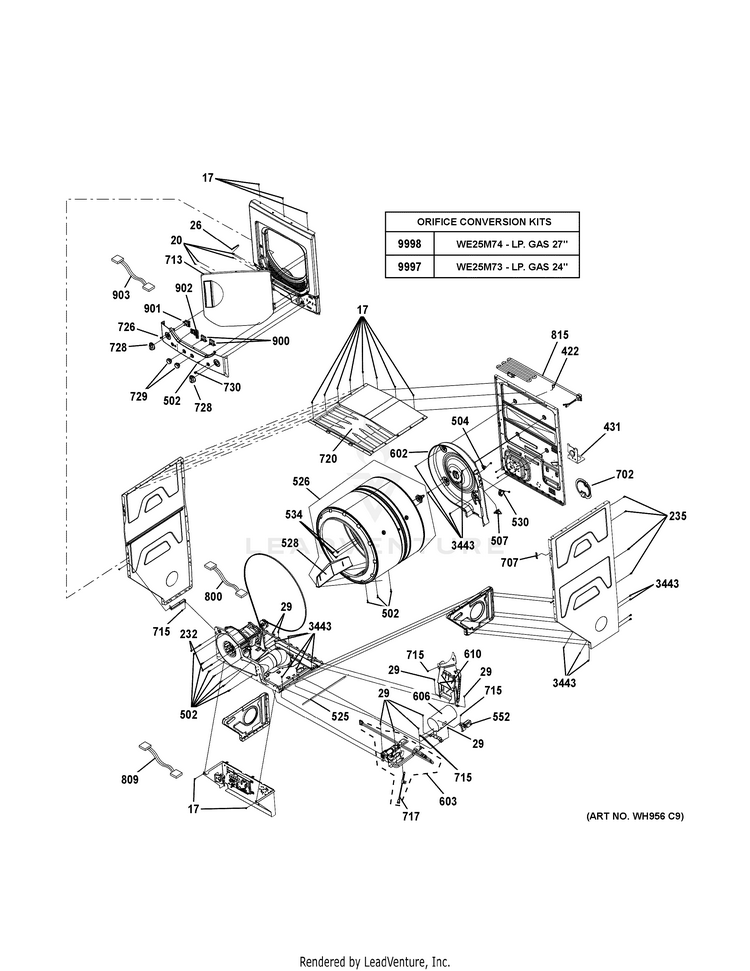

CABINET (1)

...
...
17
SCREW GEH-WH2X1217
...
20
SCREW GEH-WE2M302
...
26
SCR 8-18 AB OVQ1 2 S ZN GEH-WE2M304
...
29
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
232
SCREW GEH-WE2M202
...
235
SCR GEH-WE2X263
...
422
CLIP CORDSET GEH-WE1M155
...
431
STRAIN RELIEF BRACKET EL GEH-WE01X20423
...
502
SCREW # 10 GEH-WE2M174
...
504
THERMOSTAT HI-LIMIT GEH-WE4M137
...
507
THERMOSTAT BIAS CTR INLT GEH-WE4M181
...
525
GASKET EXHAUST GEH-WE1M999
...
526
DRUM ASM 27" GEH-WE21M41
...
528
BAFFLE GEH-WE21M39
...
530
SAFETY T'STAT 27" GAS GEH-WE4M529
...
534
SCREW #10 GEH-WE2M163
...
552
DETECTOR GEH-WE4X448
...
602
DIFFUSER GAS ASM GEH-WE14M193
...
603
VALVE AND BURNER ASM 27" GEH-WE25M79
...
606
CHAMBER COMBUSTION GEH-WE14M183
...
610
TRANSITION DUCT GEH-WE14M197
...
702
COVER EXHAUST GEH-WE1M1004
...
707
CLIP FRONT PANEL GEH-WE2M301
...
713
DOOR ASM GEH-WE10M151
...
715
SCR GEH-WD2M101
...
717
IGNITER ASM. GEH-WE4X739
...
720
TOP PANEL GEH-WE20X20679
...
726
PANEL CONTROL AND HT ASM GEH-WE19X22737
...
728
KNOB CONTROL ASM GEH-WE04X23115
...
729
KNOB ROTATORY ASM GEH-WE04X23116
...
730
BUTTON START ASM GEH-WE04X23114
...
800
HARNESS MAIN ASM GEH-WE26X20717
...
809
HARNESS UI ASM GEH-WE26M363
...
815
POWER CORD AND LABEL ASM GEH-WE26M366
...
900
SWITCH SELECTOR GEH-WH12X10509
...
901
SWITCH SELECTOR GEH-WH12X10510
...
902
BUTTON SELECTOR GEH-WE01X23117
...
903
HARNESS SELECTOR GEH-WH19X10081
...
3443
SCREW GEH-WE1M280
...
9997
KIT GAS CONVERSION 24" GEH-WE25M73
...
9998
KIT GAS CONVERSION 27" GEH-WE25M74
