GE GUD24GSSM0WW Washer/Dryer Combo

Model: GUD24GSSM0WW

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

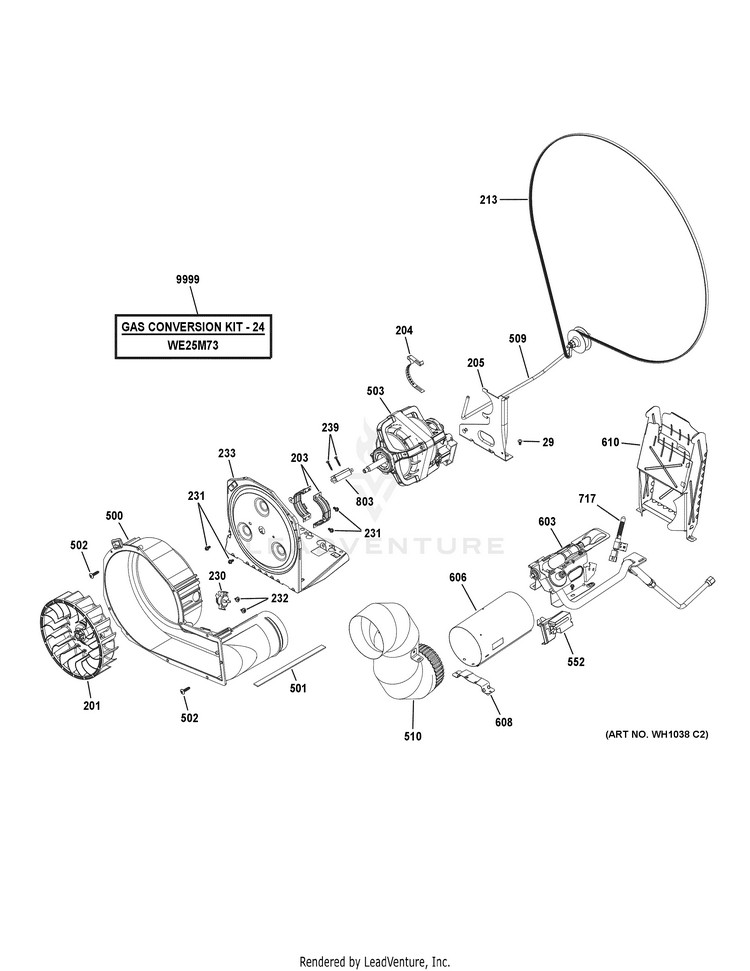

GAS VALVE, BLOWER & MOTOR ASSEMBLY

...
...
29
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
201
BLOWER WHEEL GEH-WE16X20393
...
203
STRAP MOTOR GEH-WE13X0200
...
204
MOTOR BRACKET GEH-WE01X0921
...
205
MOTOR SUPPORT GEH-WE13M39
...
213
BELT DRIVE GEH-WE12M51
...
230
T'STAT OUTLET CTRL GEH-WE4M317
...
231
SCREW GEH-WE01X25535
...
232
SCREW GEH-WE2M202
...
233
MOTOR PLATE NV GEH-WE03X27285
...
239
SCREWS GEH-WE2M167
...
500
BLOWER HOUSING GEH-WE16X27272
...
501
BLOWER GASKET (EXHAUST) GEH-WE1M966
...
502
SCREW # 10 GEH-WE2M174
...
503
MOTOR AND PULLEY GEH-WE17X22214
...
509
IDLER ARM ASM GEH-WE03X27417
...
510
DUCT EXHAUST GEH-WE14X27555
...
552
DETECTOR GEH-WE4X448
...
603
VALVE AND BURNER ASSEMBLY GEH-WE03X27426
...
606
CHAMBER COMBUSTION GEH-WE14M184
...
608
BRACKET COMBUSTION CHAMB GEH-WE14M194
...
610
DUCT TRANSITION GEH-WE14M195
...
717
IGNITER GEH-WE04X25996
...
803
SWITCH INTERLOCK GEH-WD21X10261
...
9999
KIT GAS CONVERSION 24" GEH-WE25M73
