GE GUD24GSSM0WW Washer/Dryer Combo

Model: GUD24GSSM0WW

Back To Assemblies

Save Part Not Listed?
product name

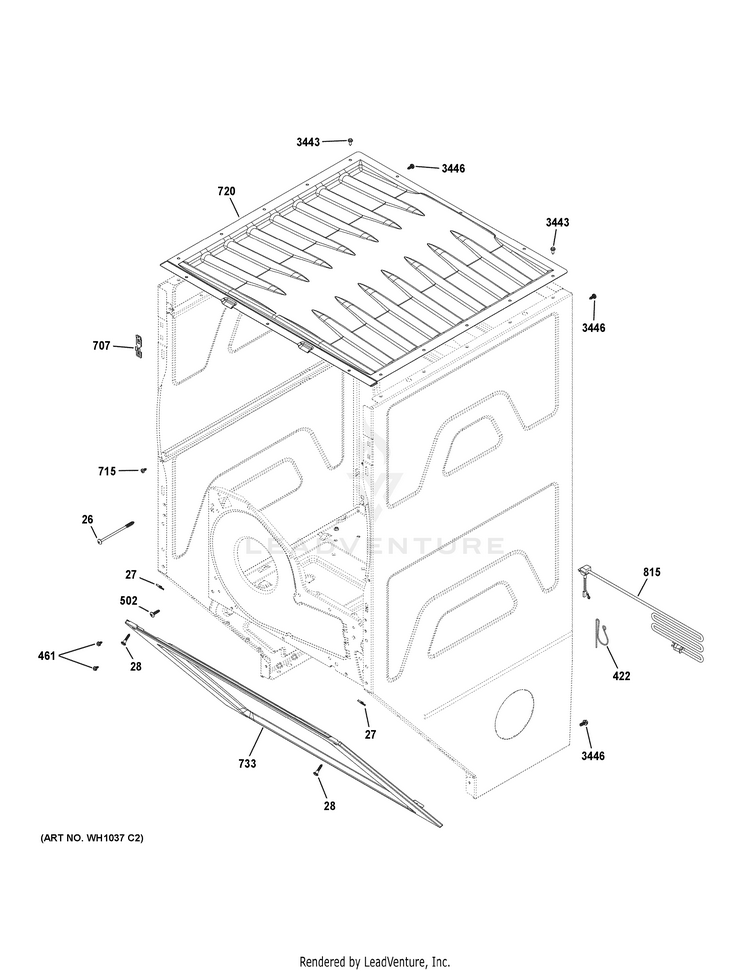

DRYER CABINET

...
...
26
SCR 8-18 AB OVQ1 2 S ZN GEH-WE2M304
...
27
NUT SPEED GEH-WE02X20269
...
28
SCR 8-18 AB TRQ2 5/8 S GEH-WE2M305
...
422
CLIP CORDSET GEH-WE1M155
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
502
SCREW # 10 GEH-WE2M174
...
707
CLIP FRONT PANEL GEH-WE2M301
...
715
SCR GEH-WD2M101
...
720
TOP PANEL GEH-WE20X20680
...
733
PANEL ACCESS GEH-WE20M469
...
815
POWER CORD AND LABEL ASM GEH-WE26M366
...
3443
SCR 8-18 AB IHW 7/16 SN GEH-WH02X1217
...
3446
SCREW GEH-WE2M223
