GE GTZ21GBEBSS Bottom Mount Refrigerator

Model: GTZ21GBEBSS

Back To Assemblies

Save Part Not Listed?
product name

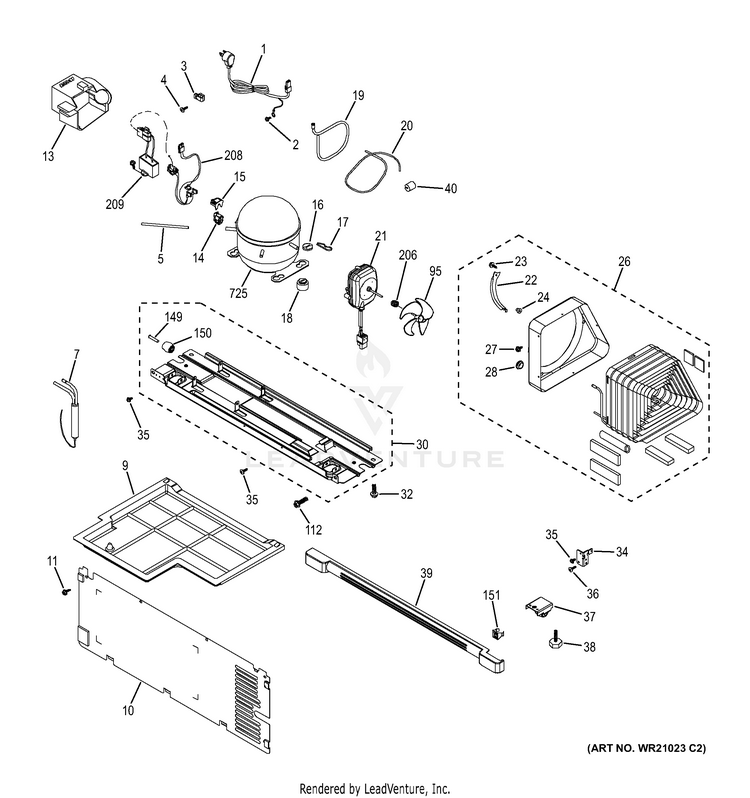

MACHINE COMPARTMENT

...
...
1
POWER CORD ASM GEH-WR23X10570
...
2
SCREW MACHINE GEH-WR01X10718
...
3
FIXTURE POWER CORD GEH-WR01X10700
...
4
SCREW TAPPING GEH-WR01X10720
...
5
PIPE SVC GEH-WR02X12533
...
7
DRYER GEH-WR86X10043
...
9
CASE VAPORI GEH-WR02X12543
...
10
GRILLE GEH-WR17X12329
...
11
TAPPING SCREW GEH-WR01X10738
...
13
COVER RELAY(EMBRACO) GEH-WR09X20772
...
14
RELAY STARTING GEH-WR07X10115
...
15
RELAY OL GEH-WR07X10116
...
16
SPECIAL WASHER COMP GEH-WR01X10704
...
17
SPRING WASHER COMP GEH-WR01X10726
...
18
ABSORBER COMP GEH-WR01X10724
...
19
PIPE SUC CONN GEH-WR02X12534
...
20
PIPE CONN DEL GEH-WR02X12535
...
21
CONDENSER FAN MOTOR GEH-WR60X20775
...
22
FRAME MOTOR C GEH-WR02X12546
...
23
SPECIAL C MOTOR BOLT GEH-WR01X10707
...
24
ABSORBER C FAN MOTOR GEH-WR01X10722
...
26
CONDENSOR ASM GEH-WR84X10116
...
27
SPECIAL WICON BOLT GEH-WR01X10705
...
28
BUSHING PIPE GEH-WR02X12515
...
30
BASE COMP SAS GEH-WR17X12332
...
32
SPECIAL BOLT GEH-WR02X12517
...
34
BRACKET VALVE GEH-WR02X12518
...
35
SCREW GEH-WR01X10739
...
36
TAPPING SCREW GEH-WR01X10740
...
37
CASTER FZ ASM GEH-WR02X12539
...
38
FOOT ADJUST ASM GEH-WR02X12545
...
39
COVER CAB BRKT FZ ASM GEH-WR32X10635
...
40
ABSORBER PIPE B GEH-WR02X12523
...
95
CONDENSOR FAN BLADE GEH-WR60X20776
...
112
SPECIAL BOLT GEH-WR01X10709
...
149
SHAFT CASTR GEH-WR02X12537
...
150
CASTER FZ GEH-WR02X12541
...
151
SPRING CAB BRKT COVR GEH-WR01X10727
...
206
CLAMP FAN BLADE GEH-WR01X20777
...
208
HARNESS P RELAY ASM GEH-WR23X10560
...
209
RUNNING CAPACITOR GEH-WR62X10072
...
725
PROD SERV HI SIDE REPLC GEH-WR87X10098
