GE GTX60GBSJ0WS Gas Dryer

Model: GTX60GBSJ0WS

Save Part Not Listed?
product name

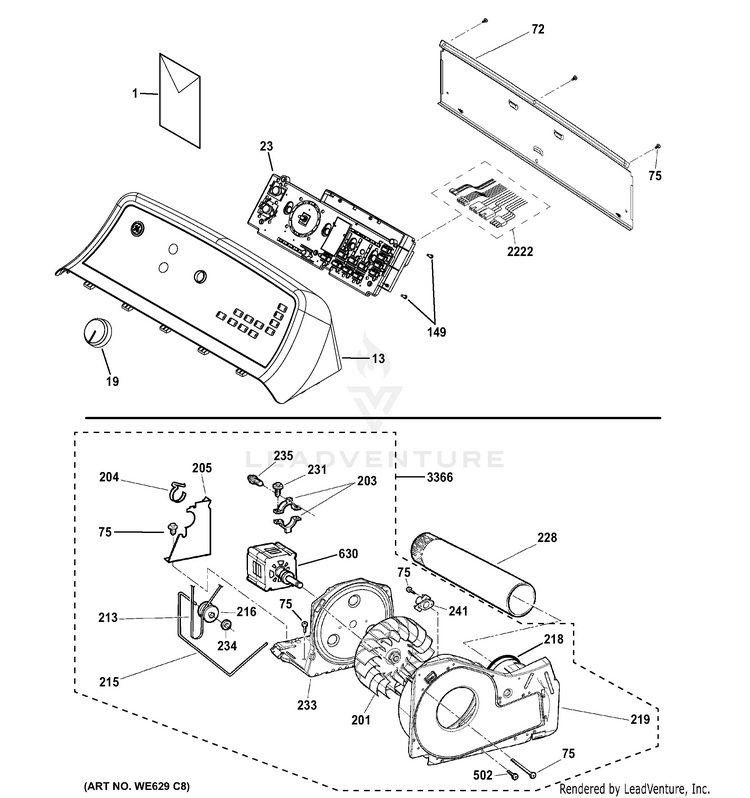

BACKSPLASH, BLOWER & MOTOR ASSEMBLY

...
...
1
PUB # MINIMANUAL GEH-31-16887
...
1
PM USE AND CARE DRYER 20 GEH-49-90536
...
1
PUB NUMBER INSTALLATION GEH-31-16756
...
13
BACKSPLASH ASM GEH-WE03X23885
...
19
KNOB ASM GEH-WE01X23886
...
23
CHASSIS AND BOARD ASM GEH-WE04X23887
...
72
PANEL BACK ASM GEH-WE20X23888
...
75
SCREW GEH-WE01X21155
...
149
SCREW 8-18 HI/LO 5/8 GEH-WR01X10196
...
201
BLOWER WHEEL GEH-WE16X23857
...
203
STRAP MOTOR GEH-WE13X200
...
204
STRAP MOTOR GEH-WE1X921
...
205
MOTOR SUPPORT GEH-WE13M39
...
213
BELT DRIVE GEH-WE12X21574
...
215
IDLER ARM GEH-WE03X20434
...
216
IDLER PULLEY GEH-WE12X20395
...
218
BLOWER GASKET (EXHAUST) GEH-WE1M966
...
219
BLOWER HOUSING ASM GEH-WE03X23859
...
228
EXHAUST DUCT GEH-WE01X23892
...
233
PLATE MOTOR GEH-WE03X23858
...
234
CAP NUT GEH-WE2X329
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
241
OUTLET CNTRL THERMISTOR GEH-WE4M448
...
502
SCREW # 10 GEH-WE2M174
...
630
MOTOR AND PULLEY ASM GEH-WE17X23856
...
2222
HARNESS ASM ELEC GEH-WE15X23862
...
3366
MOTOR & BLOWER ASM GEH-WE17X23056

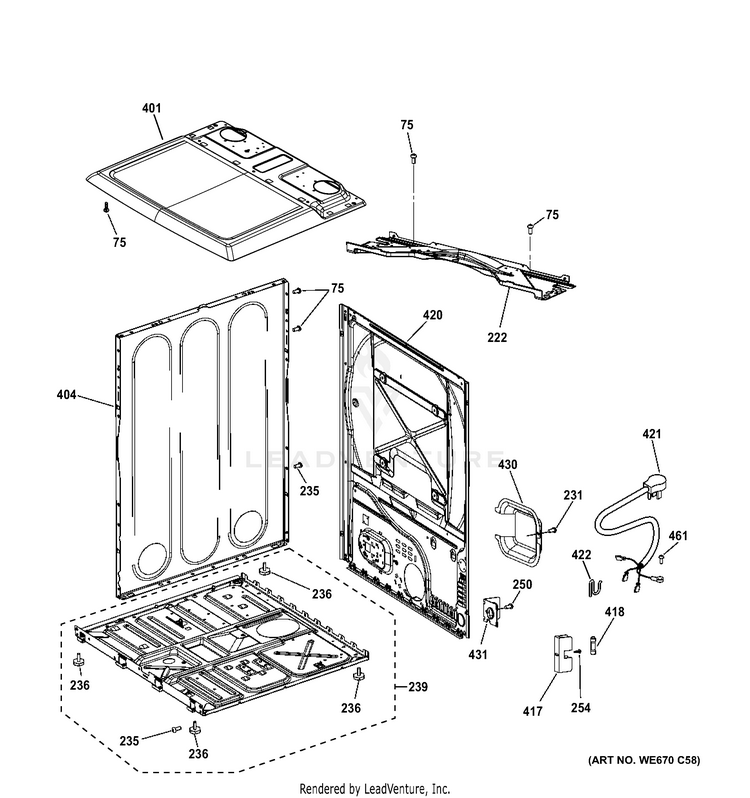

CABINET & TOP PANEL

...
...
75
SCREW GEH-WE01X21155
...
222
COVER BOTTOM GEH-WE03X23883
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
236
STABILIZING LEG ASM. GEH-WE2M188
...
239
CHASSIS AND LEG ASM GEH-WE04X23854
...
254
SCR 6-20 AB PNP#2 1 GEH-WE2X21976
...
401
COVER TOP HIGH DEPTH GEH-WE03X23889
...
404
PANEL SIDE GEH-WE20X23866
...
417
FUSE HOLDER 3AB GEH-WE1X21955
...
418
FUSE 3AB GEH-WE1X21975
...
420
PANEL REAR GEH-WE02X23954
...
421
POWER CORD (120V GAS) GEH-WE26M345
...
422
CLIP CORDSET GEH-WE1M155
...
430
COVER FUSE TERMINAL GEH-WE1M1007
...
431
STRAIN RELIEF BRACKET GA GEH-WE01X20424
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158

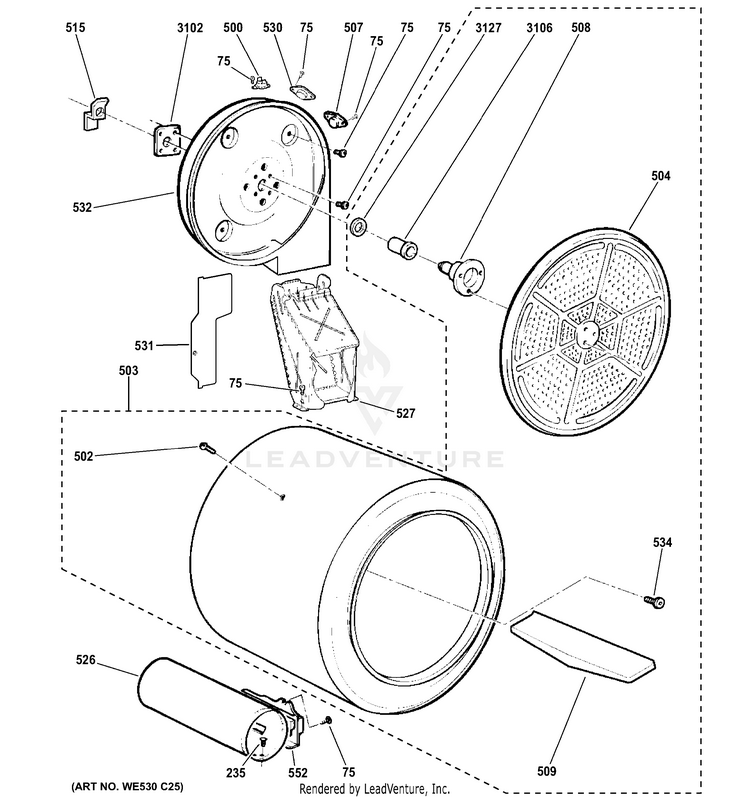

DRUM

...
...
75
SCREW GEH-WE01X21155
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM ASM GEH-WE21X23868
...
504
DIFFUSER GEH-WE14X20408
...
507
INLET CONTROL THERMISTOR GEH-WE4M333
...
508
SHAFT GEH-WE00X181L
...
509
BAFFLE GEH-WE14X20683
...
515
GROUND STRAP ASM GEH-WE1M1015
...
526
CHAMBER COMBUSTION GEH-WE14M177
...
527
TRANSITION DUCT GEH-WE14M197
...
531
DEFLECTOR FLAME GEH-WE11X25154
...
532
DIFFUSER GAS ASM GEH-WE14X21174
...
534
SCREW #10 GEH-WE2M163
...
552
DETECTOR GEH-WE4X448
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461

FRONT PANEL & DOOR

...
...
112
PLUG BUTTON WHITE GEH-WE1M934
...
300
LINT FILTER GEH-WE18M28
...
301
PANEL FRONT GEH-WE20X23874
...
302
FT HEAT DEFLECTION PLATE GEH-WE1M869
...
311
TRAP DUCT ASM GEH-WE01X23877
...
312
FELT TRAP DUCT GEH-WE09X20441
...
313
TOP BEARING GEH-WE03X20570
...
314
LAMP GEH-WE05X20431
...
316
BEARING SLIDE GEH-WE3M52
...
317
BEARING SLIDE GEH-WE3M51
...
320
BEARING TOP ASM GEH-WE03X23875
...
321
DOOR ASM GEH-WE10X23890
...
325
GASKET (SEAL) 39 INCH GEH-WE1M825
...
380
DOOR SWITCH GEH-WE10X23879
...
396
SHIELD SWITCH GEH-WE01X23880
...
3049
STRIKE GEH-WE01M10007
...
3333
HARNESS SENSOR ASM GEH-WE15X23878
...
3356
STRIKE PLATE GEH-WE1M569
...
3360
STRIKE PLATE W/STRK HOLE GEH-WE1M570
...
3361
SCREW HINGE TO FRONT GEH-WE2M217

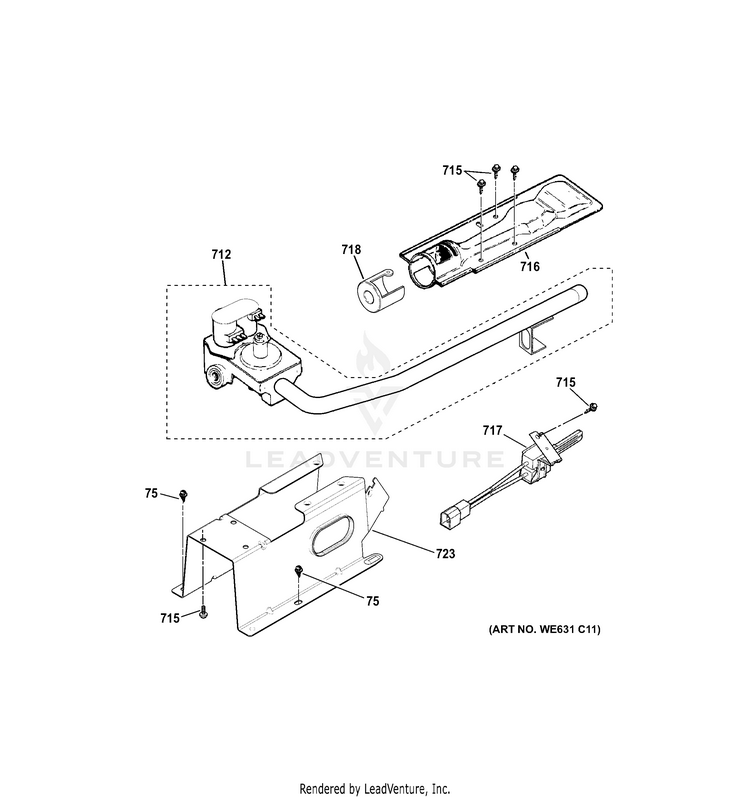

GAS VALVE & BURNER ASSEMBLY

...
...
75
SCREW GEH-WE01X21155
...
712
VALVE & BURNER ASM GEH-WE03X24545
...
715
SCR GEH-WD2M101
...
716
BURNER ASM. GEH-WE14M104
...
717
IGNITER ASM GEH-WE04X0739
...
718
SHUTTER GEH-WE1M486
...
723
GAS VALVE BRACKET GEH-WE13X20405
