GE GTX33EASK0WW Electric Dryer

Model: GTX33EASK0WW

Back To Assemblies

Save Part Not Listed?
product name

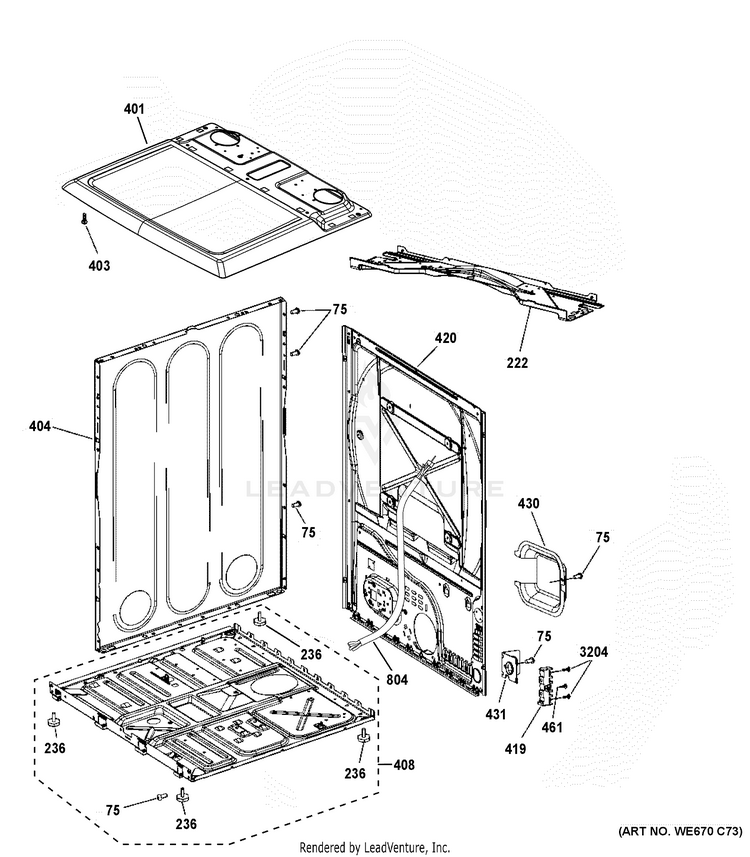

CABINET & TOP PANEL

...
...
75
SCREW GEH-WE01X25535
...
222
COVER BOTTOM GEH-WE03X23883
...
236
LEVELLING FOOT GEH-WE1M1101
...
401
COVER TOP LOW DEPTH GEH-WE03X24721
...
403
SCREW GEH-WE01X25318
...
404
PANEL SIDE GEH-WE20X25259
...
408
CHASSIS AND LEG ASM GEH-WE04X25159
...
419
TERM BLK & GRND STRAP GEH-WE4M325
...
420
PANEL REAR GEH-WE02X25274
...
430
COVER FUSE TERMINAL GEH-WE1M1007
...
431
STRAIN RELIEF BRACKET EL GEH-WE01X20423
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
804
HARNESS ASM ELEC GEH-WE15X25309
...
3204
SCR GEH-WH2M270
