GE GTX33EASK0WW Electric Dryer

Model: GTX33EASK0WW

Back To Assemblies

Save Part Not Listed?
product name

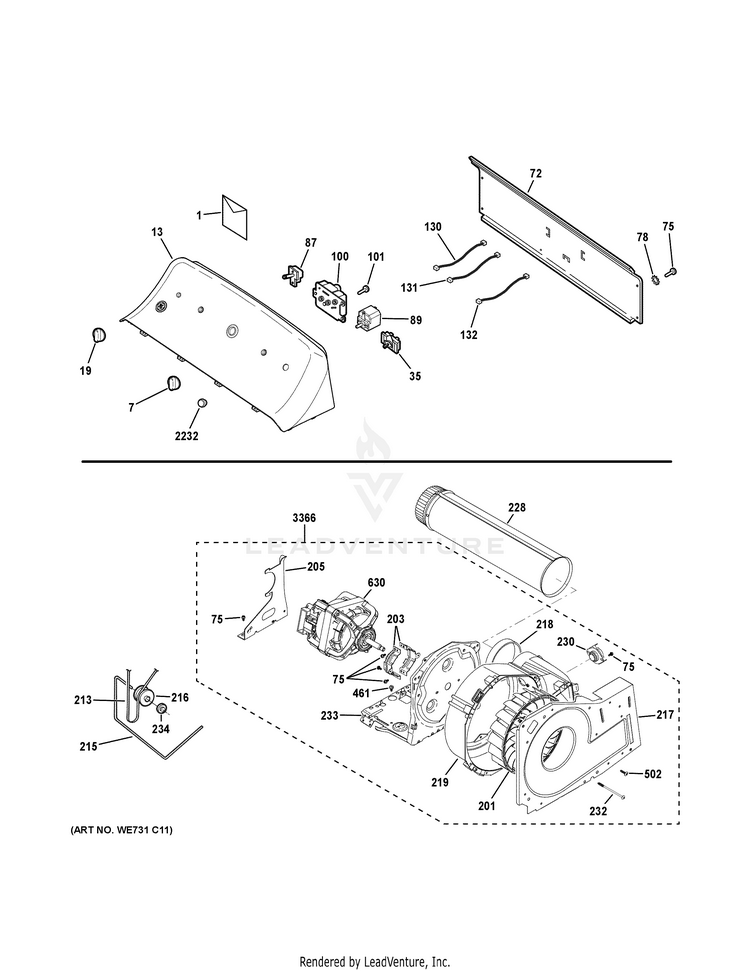

BACKSPLASH, BLOWER & MOTOR ASSEMBLY

...
...
1
PM INSTALLATION INSTRUCTION USA ELEC Y G GEH-31-16775
...
1
PUB NUMBER MINI MANUAL GEH-31-16918
...
1
USE & CARE GE USA A1, A2 GEH-49-90550
...
7
KNOB MAIN ASM GEH-WE01X24552
...
13
BACKSPLASH ASM GEH-WE03X25277
...
19
KNOB OPTIONS ASM GEH-WH01X24378
...
35
SWITCH PTS GEH-WE4M416
...
72
PANEL BACK GEH-WE20X24556
...
75
SCREW GEH-WE01X25535
...
78
WASHER GEH-WE01X26154
...
87
SWITCH ROTARY GEH-WE02X25282
...
89
BUZZER GEH-WE4M318
...
100
TIMER GEH-WE04X25280
...
101
SCR 30 X 20 IA PP GEH-WE01X24720
...
130
JUMPER HARNESS RED START GEH-WE15X25206
...
131
WIRE GROUP ASM GEH-WE15X25278
...
132
JUMPER HARNESS BLACK TIM GEH-WE15X25208
...
201
BLOWER WHEEL GEH-WE16X23857
...
203
STRAP MOTOR GEH-WE13X0200
...
205
MOTOR SUPPORT GEH-WE13M39
...
213
BELT DRIVE GEH-WE12M29
...
215
IDLER ARM GEH-WE03X20434
...
216
IDLER PULLEY GEH-WE12X20395
...
217
PLATE BLOWER GEH-WE13X29444
...
218
BLOWER GASKET (EXHAUST) GEH-WE1M966
...
219
BLOWER HOUSING ASM GEH-WE03X24536
...
228
EXHAUST DUCT GEH-WE01X23892
...
230
THERMOSTAT GEH-WE04X26214
...
232
SCREW GEH-WE2M202
...
233
PLATE MOTOR GEH-WE03X23858
...
234
CAP NUT GEH-WE2X329
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
502
SCREW # 10 GEH-WE2M174
...
630
MOTOR AND PULLEY ASM GEH-WE17X23856
...
2232
BUTTON START ASM GEH-WE04X24719
...
3366
MOTOR & BLOWER ASM GEH-WE17X24535
