GE GTUP270GM1WW Home Laundry Combo

Model: GTUP270GM1WW

Back To Assemblies

Save Part Not Listed?
product name

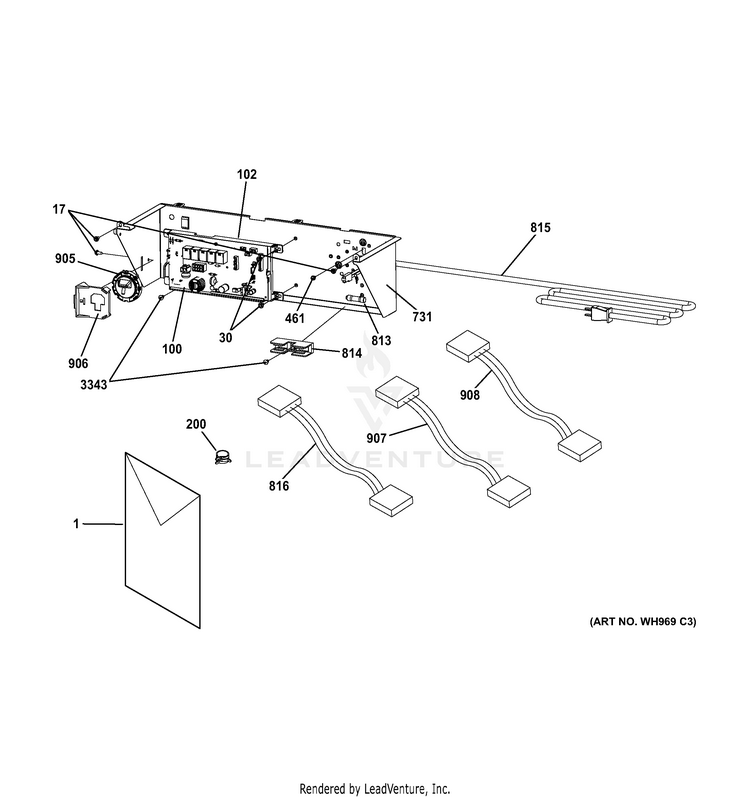

CONTROLS

...
...
1
INSTALLATION INSTRUCTION GEH-31-16655-6
...
1
PM MINI MANUAL GEH-31-16657
...
1
PM USE & CARE GEH-49-90417
...
1
SUSPENSION STRAP 27" GEH-WH01X10633
...
17
SCREW GEH-WH2X1217
...
30
HEX.SCREW8-32TRILOBULAR GEH-WH01M10001
...
100
BOARD CONTROL ASM GEH-WH12X10518
...
102
SUPPORT BOARD GEH-WH16X20555
...
200
CLIP HOSE GEH-WH01X10592
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
731
ENCLOSURE BOARD GEH-WE19M1700
...
813
FUSE CCMR 30 AMP 120V GEH-WE1M1002
...
814
HOLDER FUSE GEH-WE1M1003
...
815
POWER CORD AND LABEL ASM GEH-WE26M366
...
816
HARNESS FUSE ASM GEH-WE26M370
...
905
ELEC. PRSSURE SWITCH GEH-WH12X10511
...
906
BRACKET PRESSURE SWITCH GEH-WH16X10142
...
907
HARNESS PRESSURE ASM GEH-WH19X10083
...
908
HARNESS EXTENSION ASM GEH-WH19X10084
