product name

GE GTUP270EM1WW Washer/Dryer Combo

Model: GTUP270EM1WW

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

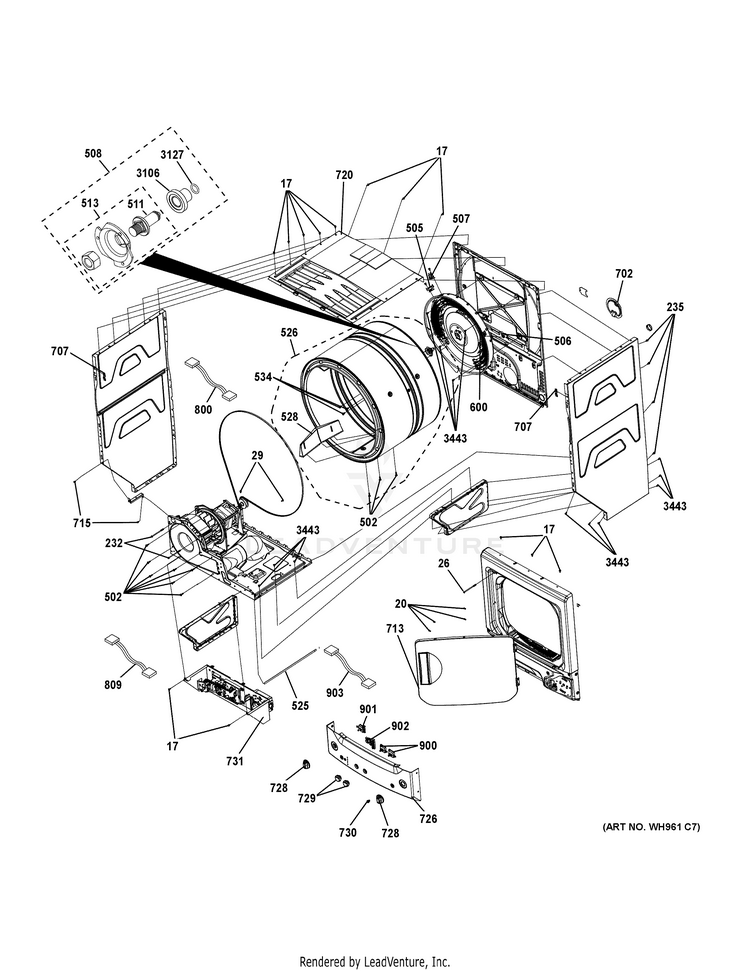

CABINET (1)

...
...
17
SCREW GEH-WH2X1217
...
20
SCREW GEH-WE2M302
...
26
SCR 8-18 AB OVQ1 2 S ZN GEH-WE2M304
...
29
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
232
SCREW GEH-WE2M202
...
235
SCR GEH-WE2X263
...
502
SCREW # 10 GEH-WE2M174
...
505
THERMOSTAT BIAS CTR INLT GEH-WE4M181
...
506
THERMOSTAT HI-LIMIT GEH-WE4M137
...
507
SAFETY LEFT T'STAT 24" E GEH-WE4M528
...
508
SHAFT & BRACKET ASS'Y GEH-WE3M33
...
511
SHAFT GEH-WE00X181L
...
513
KIT SHAFT BRACKET AND NU GEH-WE01X24495
...
525
GASKET EXHAUST GEH-WE1M999
...
526
DRUM ASM 27" GEH-WE21M41
...
528
BAFFLE GEH-WE21M39
...
534
SCREW #10 GEH-WE2M163
...
600
HEATER AND HOUSING ASM GEH-WE11M62
...
702
COVER EXHAUST GEH-WE1M1004
...
707
CLIP FRONT PANEL GEH-WE2M301
...
713
DOOR ASM GEH-WE10M151
...
715
SCR GEH-WD2M101
...
720
PANEL TOP 27" GEH-WE20M173
...
726
PANEL CTRL & HEAT TR ASM GEH-WE19M99
...
728
KNOB CONTROL ASM GEH-WE4M522
...
729
KNOB ROTATORY ASM GEH-WE4M523
...
730
BUTTON AND CLIP ASM GEH-WE4M524
...
731
ENCLOSURE BOARD GEH-WE19M1700
...
800
HARNESS MAIN ASM GEH-WE26M367
...
809
HARNESS UI ASM GEH-WE26M362
...
900
SWITCH SELECTOR GEH-WH12X10509
...
901
SWITCH SELECTOR GEH-WH12X10510
...
902
BUTTON SELECTOR GEH-WH01X10591
...
903
HARNESS SELECTOR GEH-WH19X10081
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461
...
3443
SCREW GEH-WE1M280
...
...
...
