GE GTUP270EM1WW Washer/Dryer Combo

Model: GTUP270EM1WW

Back To Assemblies

Save Part Not Listed?
product name

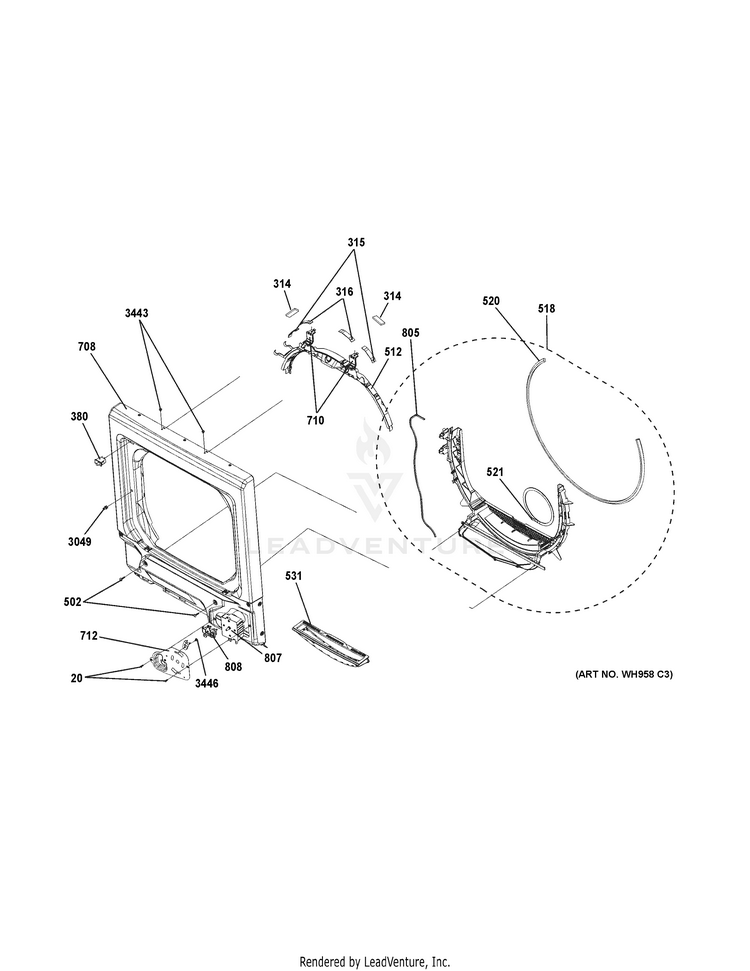

FRONT PANEL

...
...
20
SCREW GEH-WE2M302
...
314
FELT TOP BEARING GEH-WE09X22335
...
315
SLIDE WHITE GEH-WE1M504
...
316
SLIDE DRUM - GREEN GEH-WE1M507
...
380
DOOR SWITCH GEH-WE4M415
...
502
SCREW # 10 GEH-WE2M174
...
512
TOP BEARING GEH-WH03X20271
...
518
TRAP DUCT ASM 27" GEH-WE14M192
...
520
FELT TRAP DUCT GEH-WE1M997
...
521
GASKET EXHAUST GEH-WE1M998
...
531
FILTER LINT GEH-WE18M52
...
708
PANEL FRONT GEH-WE20M472
...
710
SUPPORT TOP BEARING GEH-WE1M1005
...
712
SUPPORT CONTROLS GEH-WE19M1696
...
805
HARNESS DOOR ASM GEH-WE26M361
...
807
TIMER GEH-WE4M521
...
808
SWITCH PTS GEH-WE4M416
...
3049
STRIKE DOOR GEH-WE01X1192
...
3443
SCREW GEH-WE1M280
...
3446
SCREW GEH-WE2M223
