GE GTUP240GM1WW Home Laundry Combo

Model: GTUP240GM1WW

Back To Assemblies

Save Part Not Listed?
product name

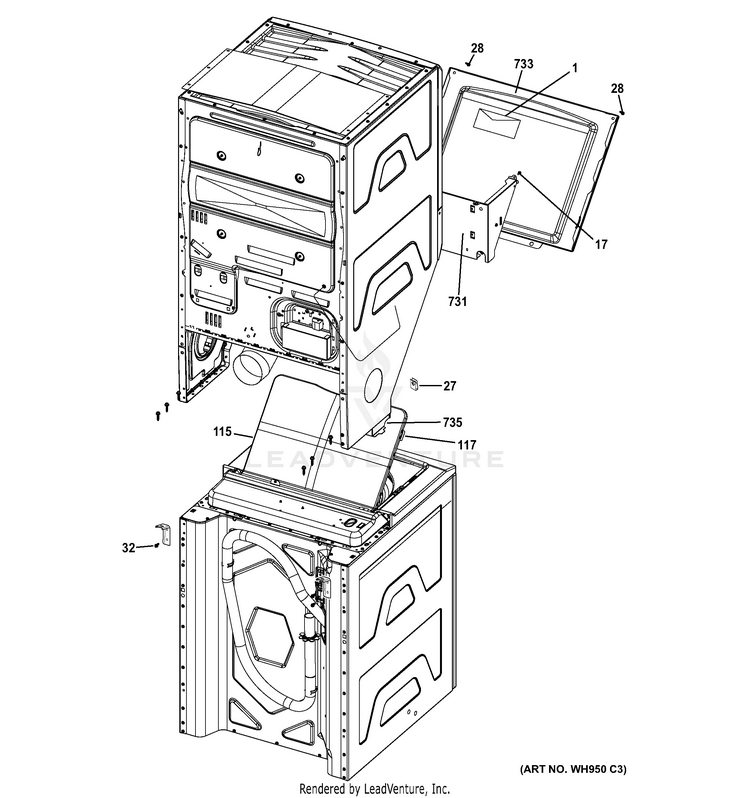

CABINET (3)

...
...
1
PM USE & CARE GEH-49-90417
...
1
PM MINI MANUAL GEH-31-16657
...
1
PM INSTALL INSTRUCTIONS GEH-31-16655-5
...
17
SCREW GEH-WH2X1217
...
27
NUT SPEED GEH-WE02X20269
...
28
SCR 8-18 AB TRQ2 5/8 S GEH-WE2M305
...
32
SCREW GEH-WH01X20231
...
115
LID WASHER GEH-WH44X10285
...
117
ACTUATOR LID GEH-WH43X10057
...
731
ENCLOSURE BOARD GEH-WE19M1698
...
733
PANEL ACCESS GEH-WE20M469
...
735
COVER HARNESS MAIN GEH-WE1M1000
