GE GTUP240GM1WW Home Laundry Combo

Model: GTUP240GM1WW

Back To Assemblies

Save Part Not Listed?
product name

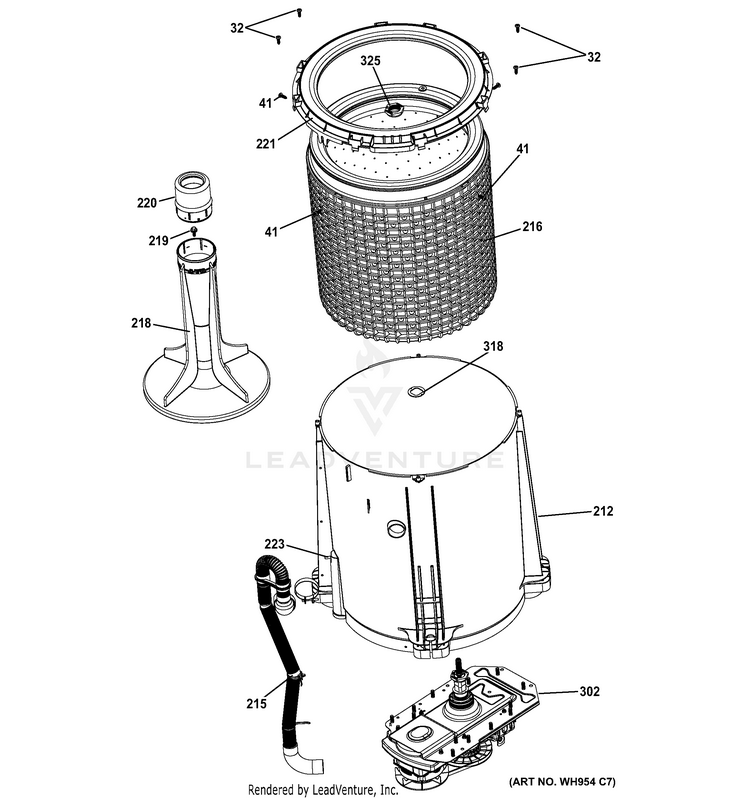

TUB, BASKET & AGITATOR

...
...
32
SCREW GEH-WH01X20231
...
41
SCR 9-15 TWIN HEL 3/4 GEH-WH01X10610
...
212
TUB 24" GEH-WH45X10150
...
215
ELBOW OVER FLOW GEH-WH01X10605
...
216
BASKET ASSEMBLY 24" GEH-WH45X10107
...
218
AGITATOR GEH-WH43X10056
...
219
ENS. TORNILLO AGITADOR GEH-WH01X10619
...
220
COVER FSD GEH-WH44X20435
...
221
TUB COVER ASM 24" GEH-WH44X10281
...
223
PRESS HOSE CLAMP GEH-WH16X10152
...
302
SUPPORTS ASSEMBLY GEH-WH16X10145
...
318
WASHER HUB GEH-WH01X10617
...
325
NUT HUB GEH-WH01X10618
