GE GTUN275GM1WW Home Laundry Combo

Model: GTUN275GM1WW

Back To Assemblies

Save Part Not Listed?
product name

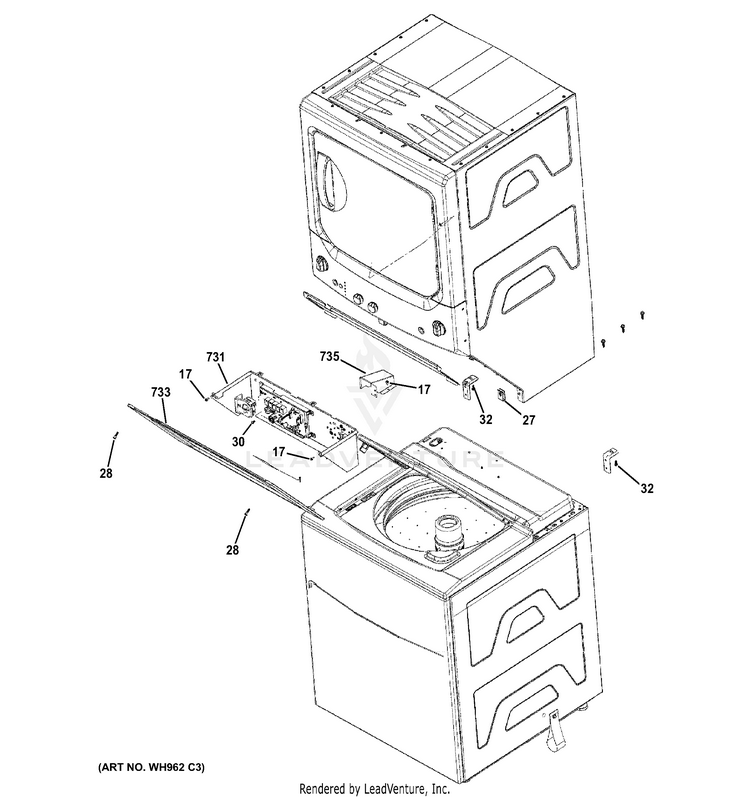

CABINET (2)

...
...
17
SCREW GEH-WH2X1217
...
27
NUT SPEED GEH-WE02X20269
...
28
SCR 8-18 AB TRQ2 5/8 S GEH-WE2M305
...
30
HEX.SCREW8-32TRILOBULAR GEH-WH01M10001
...
32
SCR 12-14 B GEH-WH01X10593
...
731
ENCLOSURE BOARD GEH-WE19M1773
...
733
PANEL ACCESS GEH-WE20M474
...
735
COVER HARNESS MAIN GEH-WE1M1000
