GE GTS18TBSABB Refrigerator

Model: GTS18TBSABB

Save Part Not Listed?
product name

Popular Parts

Popular Parts

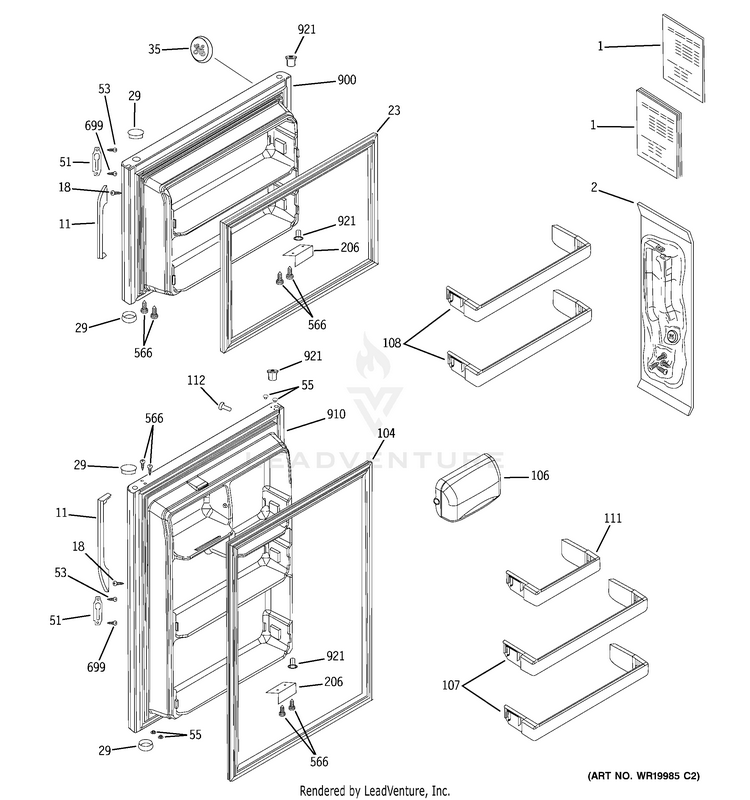

DOORS

...
...
1
MINI-MANUAL GEH-31-51696
...
1
USE & CARE MANUAL GEH-49-60426
...
2
DOOR HANDLE ASM BK GEH-WR12X10845
...
11
DOOR HANDLE BK GEH-WR12X10844
...
18
DOOR HANDLE SCREW GEH-WR01X10512
...
23
FZ DOOR GASKET GEH-WR24X10189
...
29
PLUG DOOR THIMBLE BK GEH-WR02X12319
...
35
NAMEPLATE GEH-WR04X10153
...
51
BRACKET DOOR HANDLE GEH-WR02X12155
...
53
DOOR HANDLE SCREW GEH-WR01X10530
...
55
DOOR HANDLE HOLE SCREW C GEH-WR01X10670
...
104
FF DOOR GASKET GEH-WR24X10190
...
106
DOOR DAIRY CLEAR GEH-WR22X10055
...
107
SHELF FRONT FF GEH-WR71X10669
...
108
SHELF FRONT FZ GEH-WR71X10667
...
111
SHELF FRONT FF HALF GEH-WR71X10668
...
112
DOOR PLATE HOLE COVER BK GEH-WR02X12321
...
206
DOOR STOP BK GEH-WR02X12320
...
566
DOOR STOP SCREW /DOOR HA GEH-WR01X10668
...
699
CAPATITOR SCREW GEH-WR01X10518
...
900
DOOR FOAM ASM FZ BK GEH-WR78X11885
...
910
DOOR FOAM ASM FF BK GEH-WR78X11886
...
921
HINGE PIN THIMBLE BK GEH-WR02X12318

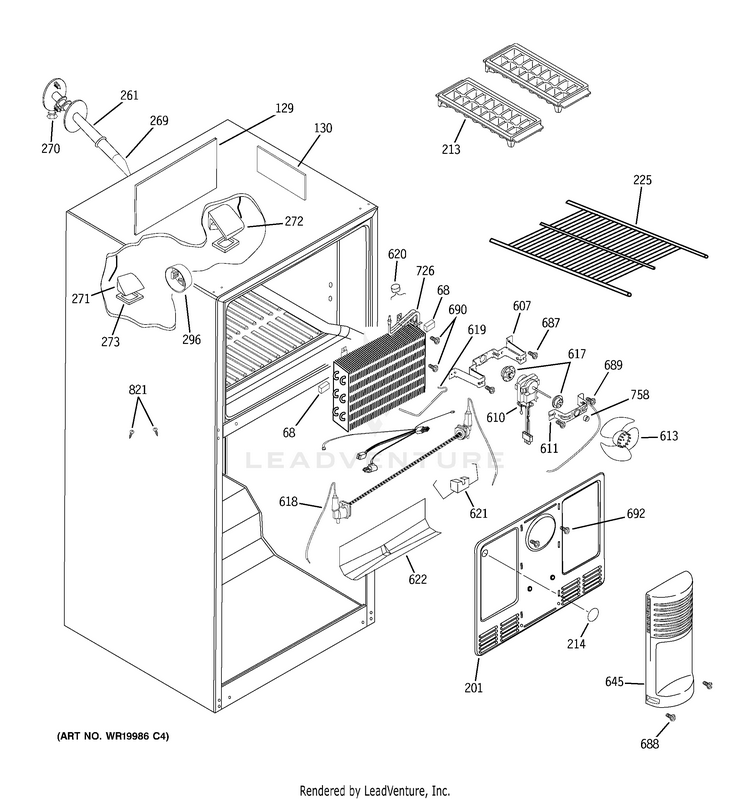

FREEZER SECTION

...
...
68
FOAM BLOCK GEH-WR14X10157
...
129
FOAM REFLECTOR GEH-WR02X12185
...
130
AIR RETURN COVER GEH-WR02X12186
...
201
EVAP COVER GEH-WR17X11995
...
213
TRAY ICE GEH-WR30X10071
...
214
PLUG BUTTON GEH-WR02X12089
...
225
SHELF ASM FZ GEH-WR71X10672
...
261
GROMMET WATER FILL ASM GEH-WR02X12160
...
269
EXTENSION IM FILL TUBE GEH-WR02X12168
...
270
PLUG BUTTON WATER FILL GEH-WR02X12159
...
271
HOOD RETURN DUCT FF GEH-WR02X12086
...
272
HOOD RETURN DUCT FF GEH-WR02X12091
...
273
GASKET HOOD GEH-WR14X10203
...
296
COVER IM RECEPTACLE GEH-WR02X12158
...
607
BRACKET EVAP FAN LARGE GEH-WR02X12085
...
610
MOTOR EVAP FAN GEH-WR60X10197
...
611
MOTOR FIX HOLDER GEH-WR02X12095
...
613
BLADE EVAP FAN GEH-WR60X10199
...
617
GROMMET MOTOR GEH-WR17X12002
...
618
DEFROST HEATER GEH-WR51X10086
...
619
CONDUCTOR HEAT GEH-WR51X10087
...
620
THERMOSTAT DEF GEH-WR50X10066
...
621
HOLDER ELEMENT GEH-WR02X12105
...
622
TROUGH DRAIN GEH-WR17X12000
...
645
TOWER BOTTOM FZ GEH-WR17X11994
...
687
SCREW GEH-WR01X10538
...
688
AIR TOWER SCREW GEH-WR01X10536
...
689
MOTOR SHELF SCREW GEH-WR01X10511
...
690
SCREW GEH-WR01X10531
...
692
EV COVER SCREW GEH-WR01X10537
...
726
LOW SIDE ASM GEH-WR85X10079
...
758
FAN SPRING GEH-WR02X12106
...
821
IM MOUNTING SCREW GEH-WR01X10532

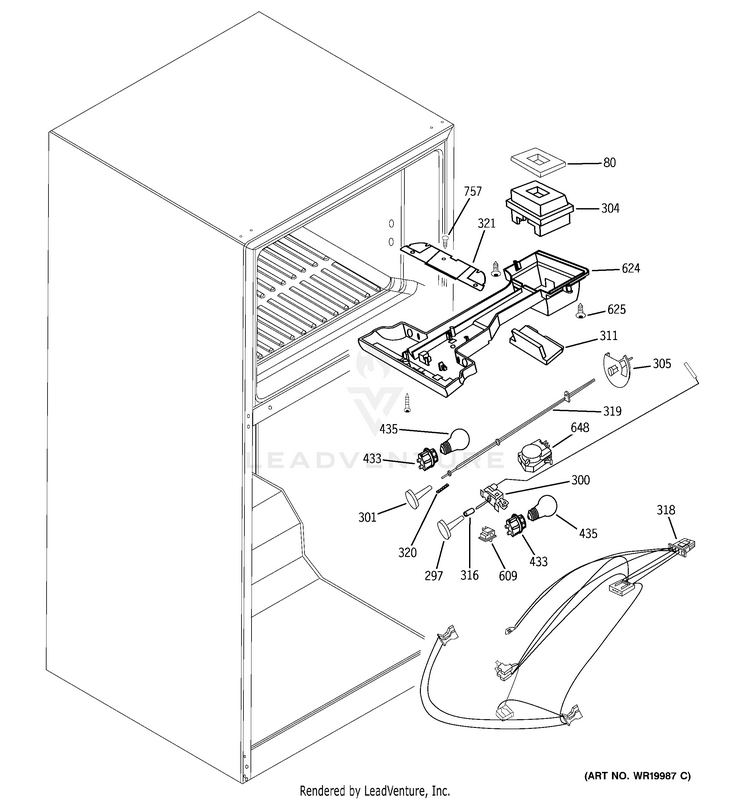

FRESH FOOD SECTION

...
...
80
FOAM SPACER GEH-WR02X12169
...
297
KNOB THUMB CONTROL FZ GEH-WR02X12092
...
300
CONTROL TEMP GEH-WR09X10131
...
301
KNOB THUMB CONTROL FF GEH-WR02X12093
...
304
NOZZLE CONTROL FOAM GEH-WR02X12083
...
305
WHEEL DAMPER GEH-WR02X12087
...
311
BLOCK FOAM CONTROL GEH-WR02X12084
...
316
SPACER GEH-WR02X12099
...
318
HARNESS CONTROL MODULE GEH-WR23X10436
...
319
SHAFT DAMPER GEH-WR02X12088
...
320
SPRING KNOB GEH-WR01X10501
...
321
SHIELD REFLECTOR FF GEH-WR02X12153
...
433
SOCKET LIGHT GEH-WR02X12082
...
435
40WATT 15AMP GEH-40A15
...
609
SWITCH DOOR GEH-WR23X10320
...
624
HOUSING CONTROL GEH-WR17X11993
...
625
SCREW GEH-WR01X10508
...
648
CONTROL DEFROST GEH-WR09X10130
...
757
FASTENER PUSH GEH-WR01X10502

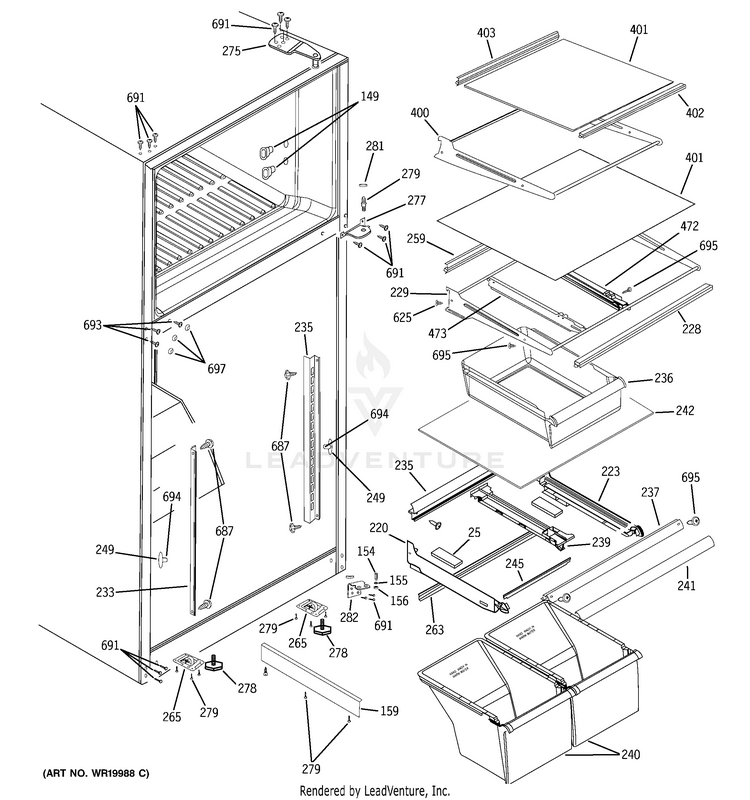

FRESH FOOD SHELVES

...
...
25
VEG BOX COVER SPONGE GEH-WR02X12170
...
149
SHELF SUPPORT FZ GEH-WR02X12156
...
154
PIN HINGE BOTTOM GEH-WR13X10391
...
155
SPRING BUSHING BK GEH-WR01X10669
...
156
NUT BK GEH-WR01X10667
...
159
BOTTOM PLATE STOP GEH-WR02X12162
...
220
SLIDE TRACK LEFT GEH-WR17X11999
...
223
SLIDE TRACK RIGHT GEH-WR72X10177
...
228
TRIM FRONT GLASS SHELF GEH-WR38X10374
...
229
SHELF CANT FULL ASM GEH-WR71X10671
...
233
TRACK CANT SIDE GEH-WR72X10176
...
235
RAIL VEG PAN REAR GEH-WR17X12003
...
236
PAN SNACK GEH-WR32X10541
...
237
RAIL VEG PAN FRONT GEH-WR17X12004
...
239
SLIDE COVER CENTER GEH-WR17X11998
...
240
VEG PAN GEH-WR32X10542
...
241
TRIM FRAME VEG PAN GEH-WR17X12005
...
242
SHELF CANT GLASS GEH-WR32X10551
...
245
GASKET PAN FRONT GEH-WR14X10202
...
249
GASKET COVER PAN FRT GEH-WR14X10201
...
259
STRENGTH GLASS STRIPD GEH-WR38X10375
...
263
GASKET COVER PAN REAR GEH-WR14X10200
...
265
MOBILITY WHEEL GEH-WR02X12090
...
275
HINGE TOP BK GEH-WR13X10412
...
277
CENTER HINGE BK GEH-WR13X10413
...
278
ADJUST LEG GEH-WR02X12096
...
279
HINGE PIN CENTER GEH-WR13X10390
...
281
WASHER HINGE BROWN GEH-WR01X10533
...
282
HINGE BOTTOM BK GEH-WR13X10414
...
400
SHELF CANT FRAME ASM GEH-WR71X10670
...
401
SHELF ENCAP SNAP ON GEH-WR32X10543
...
402
TRIM FRONT GLASS SHELF GEH-WR32X10544
...
403
TRIM REAR GLASS SHELF GEH-WR38X10373
...
472
SLIDE SNACK PAN RH GEH-WR72X10178
...
473
SLIDE SNACK PAN LH GEH-WR72X10179
...
625
SCREW GEH-WR01X10508
...
687
SCREW GEH-WR01X10538
...
691
TOP/CENTER/BOTTOM HINGE GEH-WR01X10671
...
693
OFFSIDE CENTER/BTM HINGE GEH-WR01X10672
...
694
VEG PAN SCREW GEH-WR01X10507
...
695
SCREW GEH-WR01X10514
...
697
HINGE HOLE SCREW COVER GEH-WR01X10666

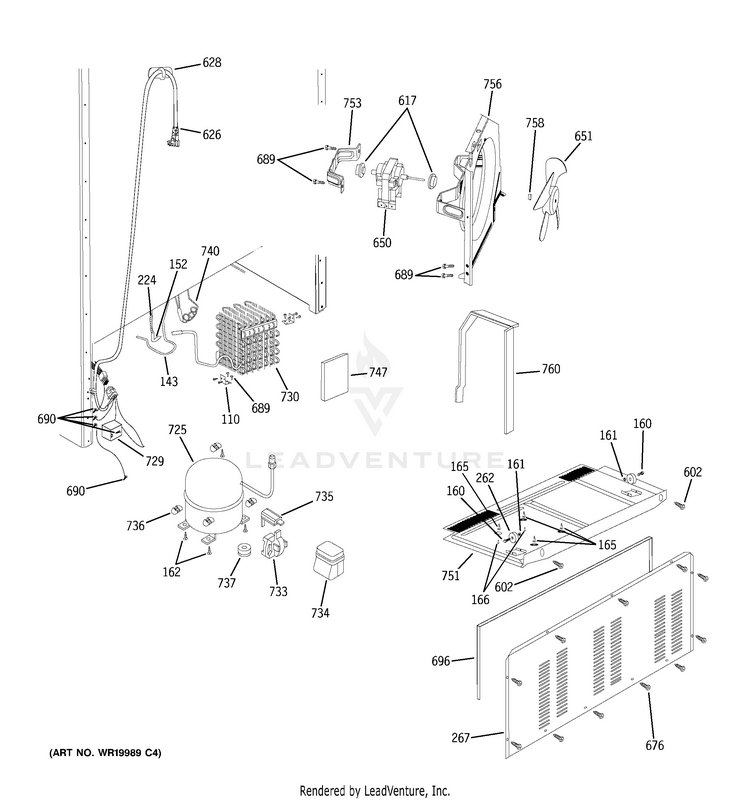

UNIT PARTS

...
...
110
CONDENSOR FIX HOLDER GEH-WR02X12161
...
143
SUCTION JUMPER GEH-WR02X12308
...
152
CONNECTOR TUBE GEH-WR02X12184
...
160
REAR WHEEL NUT GEH-WR01X10548
...
161
REAR WHEEL BOLT GEH-WR01X10547
...
162
COMPRESSOR FIX SCREW GEH-WR02X12298
...
165
STUD COMP MTG W/NUT GEH-WR01X10658
...
166
SPRING WASHER GEH-WR01X10673
...
224
DRAIN PIPE GEH-WR02X12154
...
262
WHEEL MOBILITY GEH-WR02X12103
...
267
COMPRESSOR COVER PLATE GEH-WR17X11997
...
602
BASE PLATE SCREW GEH-WR01X10513
...
617
GROMMET MOTOR GEH-WR17X12002
...
626
POWER CORD GEH-WR23X10434
...
628
CLAMP CABLE GEH-WR01X10504
...
650
MOTOR COND FAN GEH-WR60X10198
...
651
BLADE COND FAN GEH-WR60X10200
...
676
COMP COVER SCREW GEH-WR01X10529
...
689
MOTOR SHELF SCREW GEH-WR01X10511
...
690
SCREW GEH-WR01X10531
...
696
FOAM STRIP GEH-WR14X10204
...
725
COMPRESSOR ASM GEH-WR87X10141
...
729
CAPACITOR GEH-WR62X10057
...
730
CONDENSER GEH-WR84X10079
...
733
STARTER RELAY GEH-WR07X10077
...
734
PROTECTOR CAP GEH-WR02X12323
...
735
OVERLOAD PROTECTOR GEH-WR08X10081
...
736
COMP MTG CLIP GEH-WR02X12157
...
737
GROMMET COMP MTG GEH-WR02X12081
...
740
P/S DRYER KIT R134A GEH-WR86X0096
...
747
INSULATION SIDE GEH-WR82X10105
...
751
BASE PLATE GEH-WR17X11996
...
753
BRACKET FAN BTM GEH-WR02X12101
...
756
HOUSING COND FAN GEH-WR17X12001
...
758
FAN SPRING GEH-WR02X12106
...
760
FOAM STRIP SE ADH GEH-WR14X10205
